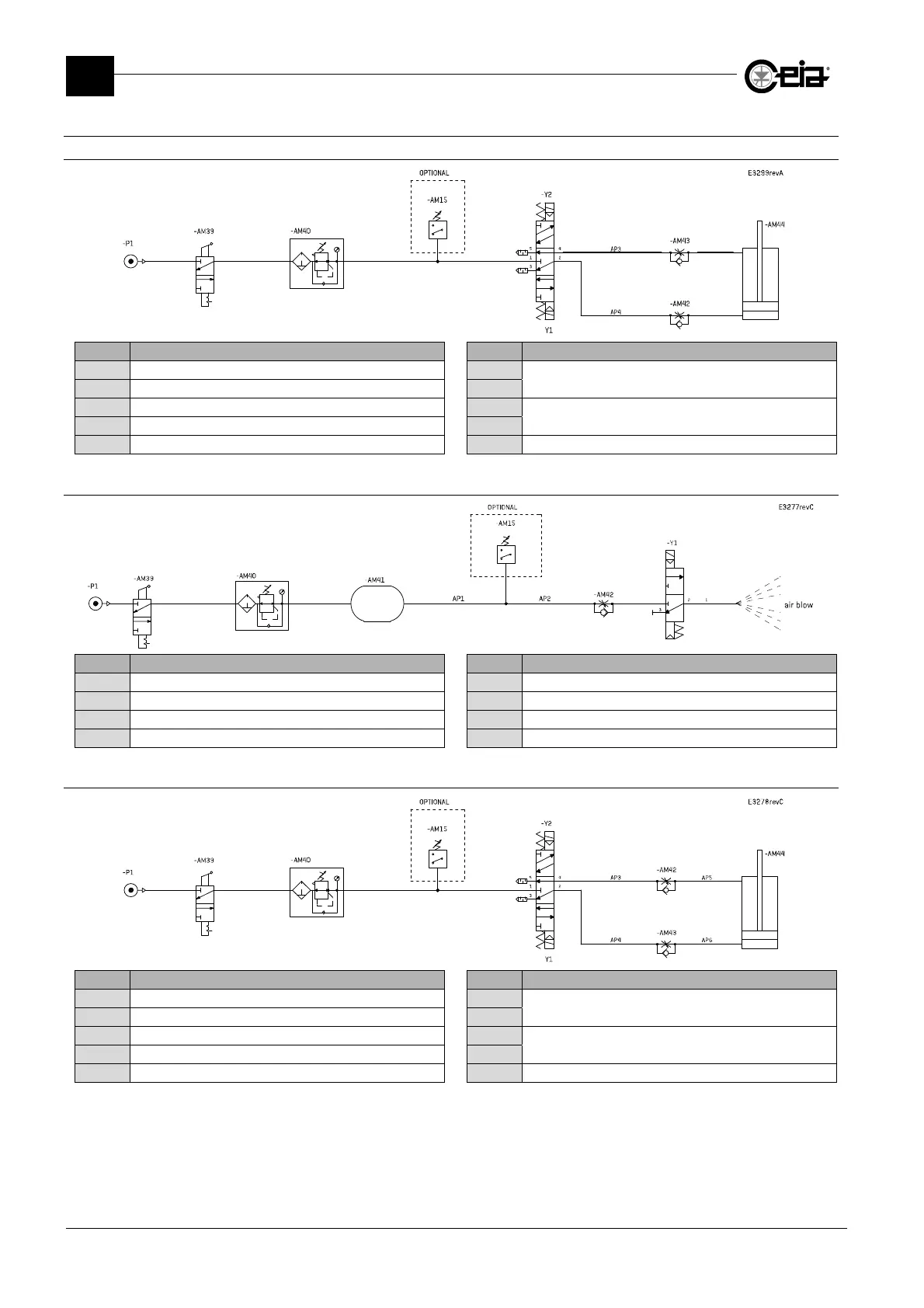

3.4.2 Pneumatic circuit diagrams
3.4.2.1 Ejector cylinder
# Description # Description
P1
Compressed air supply
Y1
5/3-way directional control valve, exhaust neutral
position
AM39
3/2-way manual control valve
Y2
AM40
Adjustable pressure regulator with return flow action
AM42
Adjustable flow regulator
AM15
Adjustable pressure switch (optional)
AM43
AM44
Actuator
3.4.2.2 Air jet ejection system
# Description # Description
P1
Compressed air supply
AM15
Adjustable pressure switch (optional)
AM40
Adjustable pressure regulator with return flow action
AM42
Adjustable flow regulator
AM41
Pneumatic capacitor
Y1
3/2-way directional control valve
AM39
3/2-way manual control valve
3.4.2.3 Ejector cylinder
# Description # Description
P1
Compressed air supply
Y1
5/3-way directional control valve, exhaust neutral
position
AM39
3/2-way manual control valve
Y2
AM40
Adjustable pressure regulator with return flow action
AM42
Adjustable flow regulator
AM15
Adjustable pressure switch (optional)
AM43
AM44
Actuator
