FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
INSTALLAZIONE
132 ORIGINAL INSTRUCTION

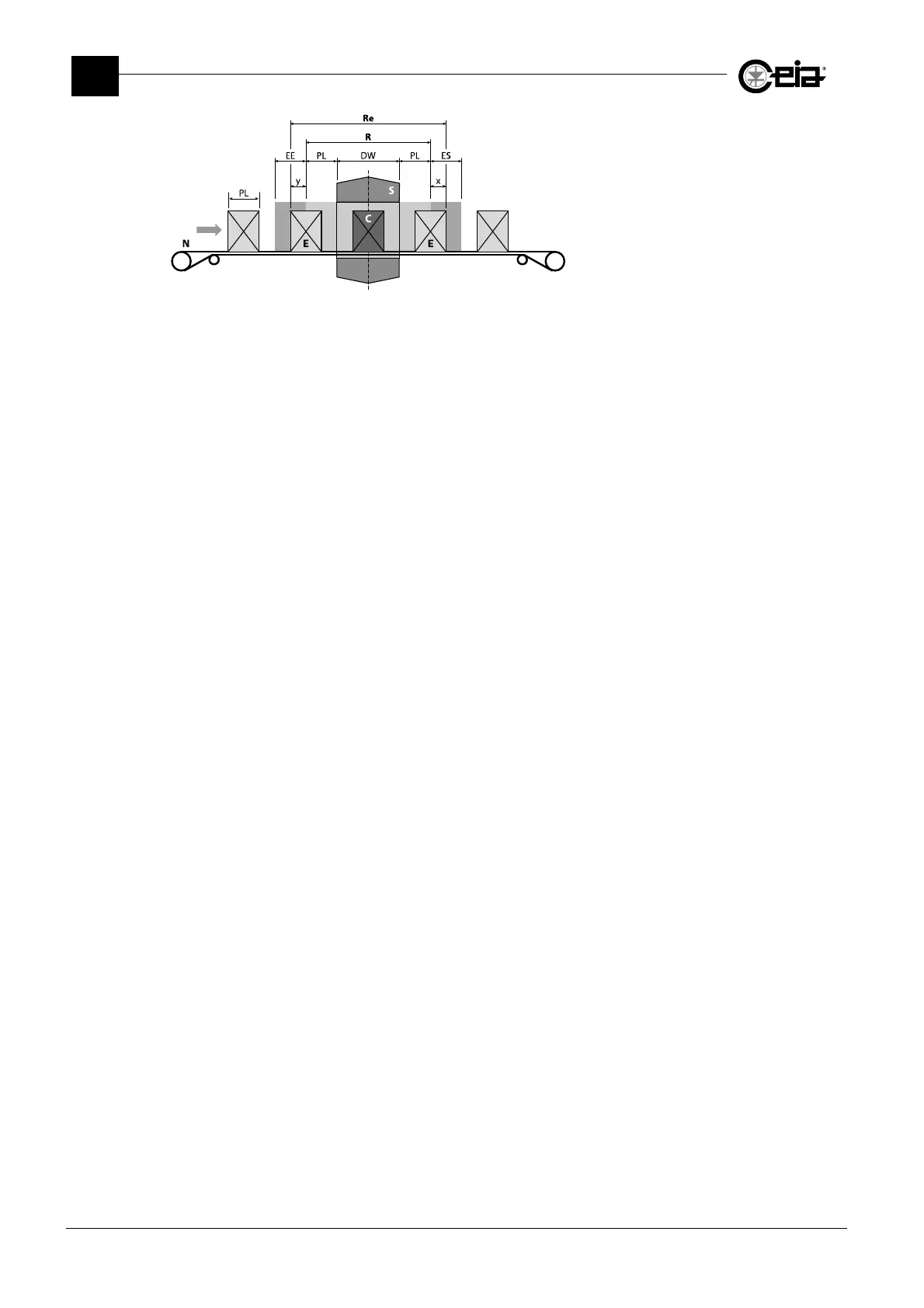

E: Ejected pack;
C: Contaminated and ejected pack;
EE: Ejection end synchronization area;
ES: Ejection start synchronization area
R: Minimum removal area = DW + 2PL
Re: Actual removal area = R+x+y
Following an alarm, the ejector will be activated for the time of the alarm and to eject all products in
the R area (Minimum removal area = PL+DW+PL).
A control can be introduced, from the photocell, of two areas alongside the removal area, in order to
synchronize the start and end of the ejection with the packs in transit (ES and EE respectively).
In this way, if packs are standing across the end or the beginning of the Minimum removal area, the
ejector is adequately activated to remove a bigger area (Re), synchronized with those packs borders.
