CENNTRO LOGISTAR 100 - Servo Motor

Air conditioning control system
267
11.4.4 Servo motor
Removal and installation

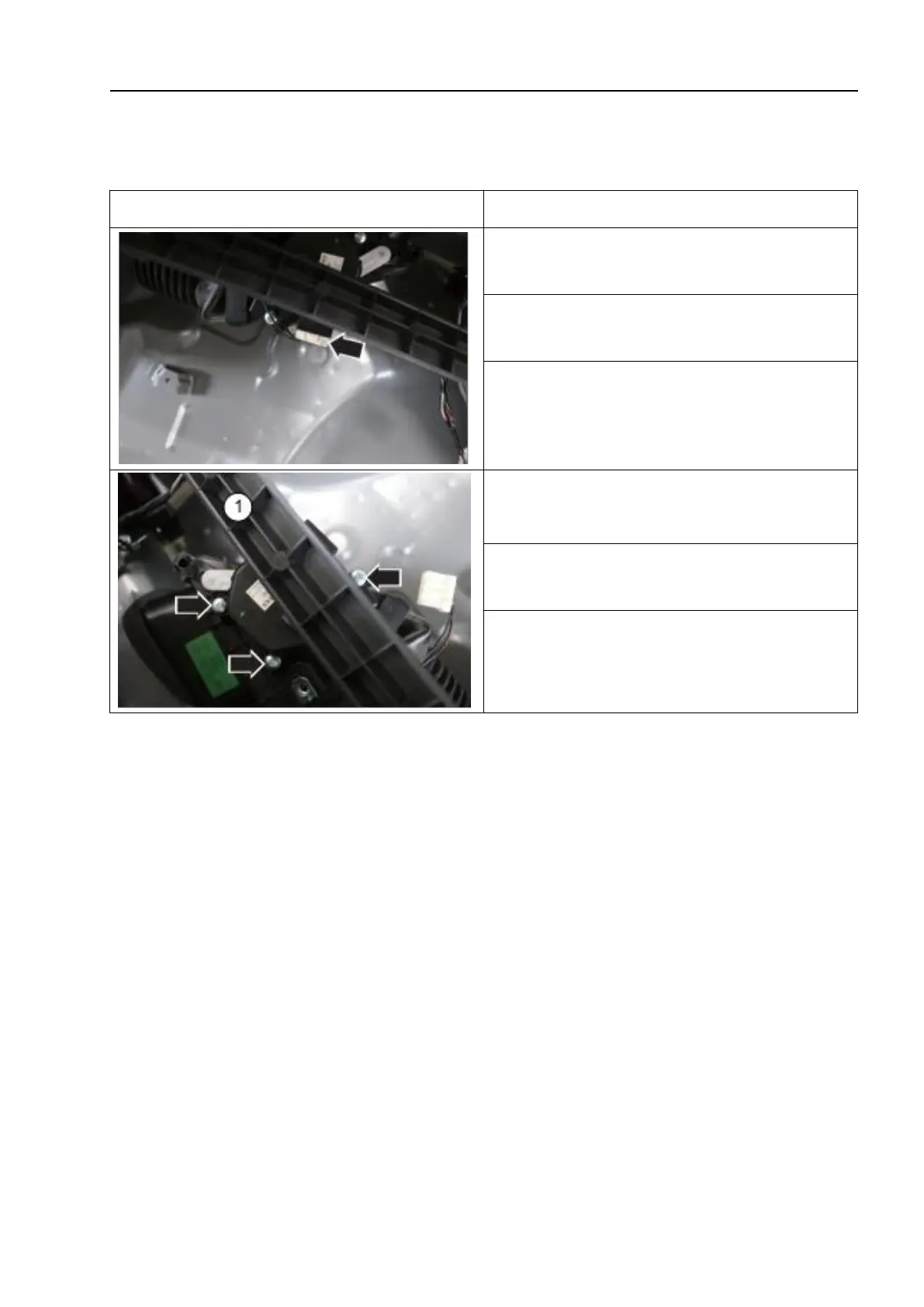

Schematic diagram
Removal steps
1. Disconnect the negative battery cable.
2. Remove the glove box assembly.
3. Disconnect the servo motor connection
plug.
4. Unscrew the fixing screws and remove
the servo motor-1-.
Installation steps
1. The installation sequence is the reverse
of the removal sequence.
