Exterior trims
3.8.3 Front bumper
△! Caution
Fasteners are important accessory components that can affect the performance of
crucial components and systems, and/or can affect major repair costs. If it needs to be
replaced, it must use the components of the same model or equivalent. Do not use low
quality replacement parts or alternative designs.
Removal and installation

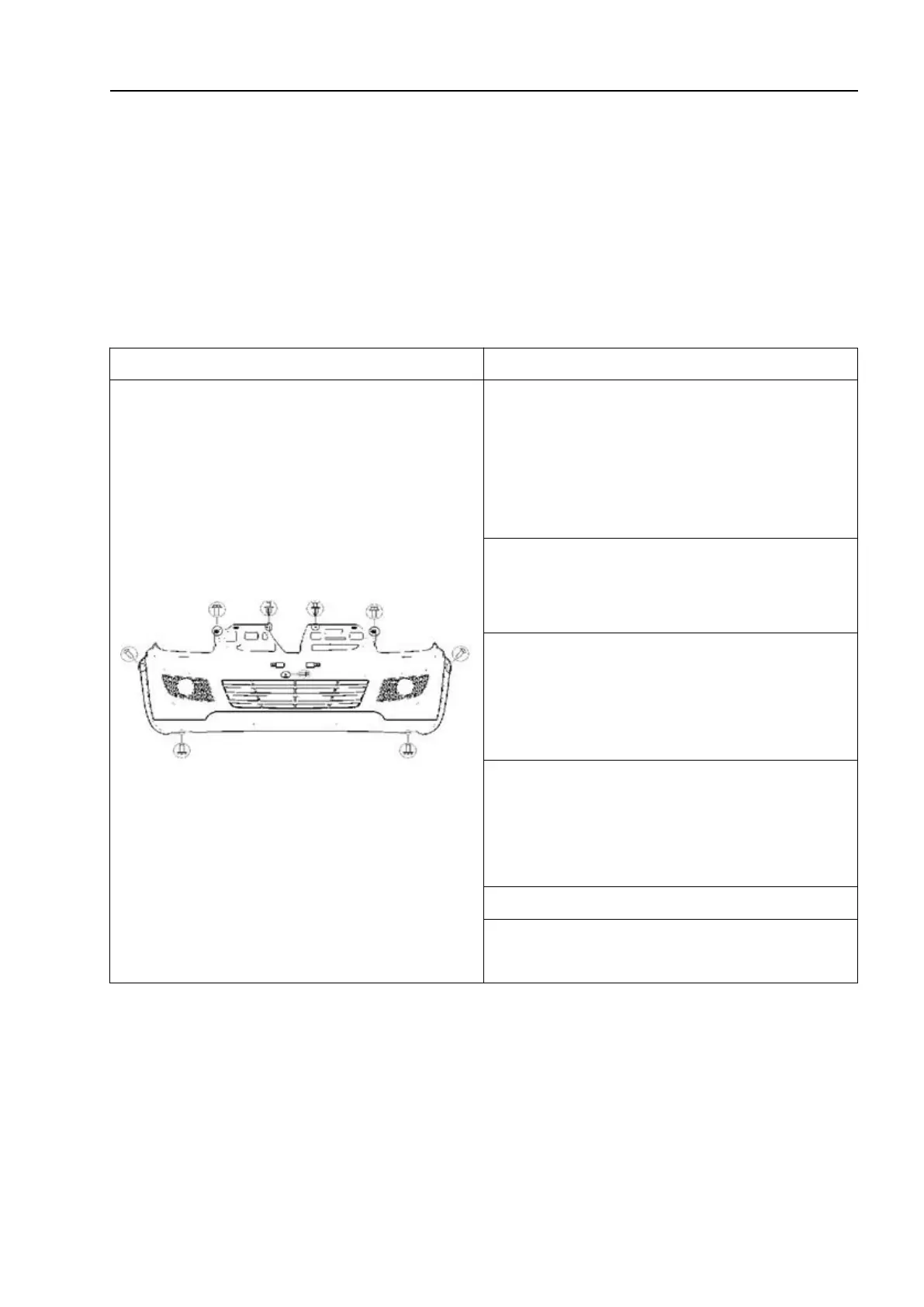

1. Remove the bolts, screws and clips at
the positions shown in the figure.
△!
Description
The disassembly sequence is from
bottom to top.
2. Remove the side of the bumper from the
slot in the bumper mounting bracket from
both sides.
3. Disconnect the harness connectors at
the rear of both front fog lamps from the
body harness to separate the front fog lamp
harness from the body harness.
4. Lift the front bumper down from the
front end of the front bumper, and then the
front bumper will be detached from the
vehicle body.
1. Install the front bumper in the reverse
order of removal.
