CENNTRO LOGISTAR 100 - Headlamp Adjustment

Lighting system
292
13.1.4 Headlamp adjustment

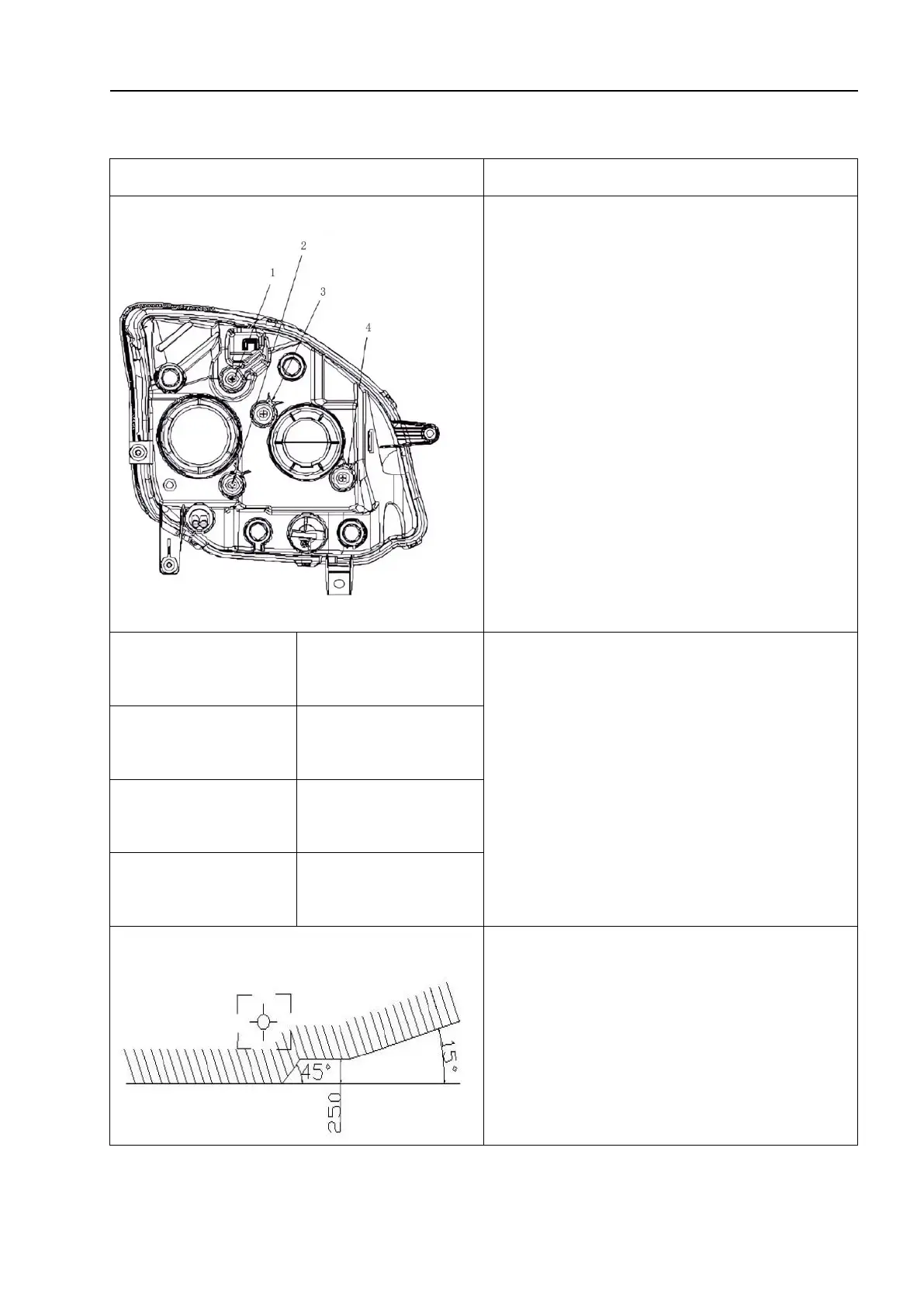

Schematic diagram
Steps
1. Preparation:
• Place the vehicle on a level surface.
• Check whether the headlamp works
properly, and replace damaged components
if necessary.
• Adjust the headlamp level switch
several times to check its function, then
place the switch in position.
• Set the light test screen to the
following headlight adjustment values.
(X): X=17cm/10m=0°59′=1.7% (left)
X=35cm/10m=2°0′=3.5% (right)
1
High beam up and
down adjustment
2. Adjust the low beam.
• Turn on the low beam lamp.
1. Adjust the screw vertically.
2. Adjust the screw horizontally.
2
High beam left and
right adjustment
3
Low beam left and
right adjustment
4
Low beam up and
down adjustment
3. Vertical adjustment.
