1.1.3 Traction and raising
Vehicle raising position
Consider maintaining vehicle balance throughout the maintenance process. The
balance of the vehicle on the lifting jack may change as components are removed.
Before raising the vehicle, check to ensure that the end of the lifting jack rocker arm
does not come into contact with the brake pipes, brackets, or any other components.

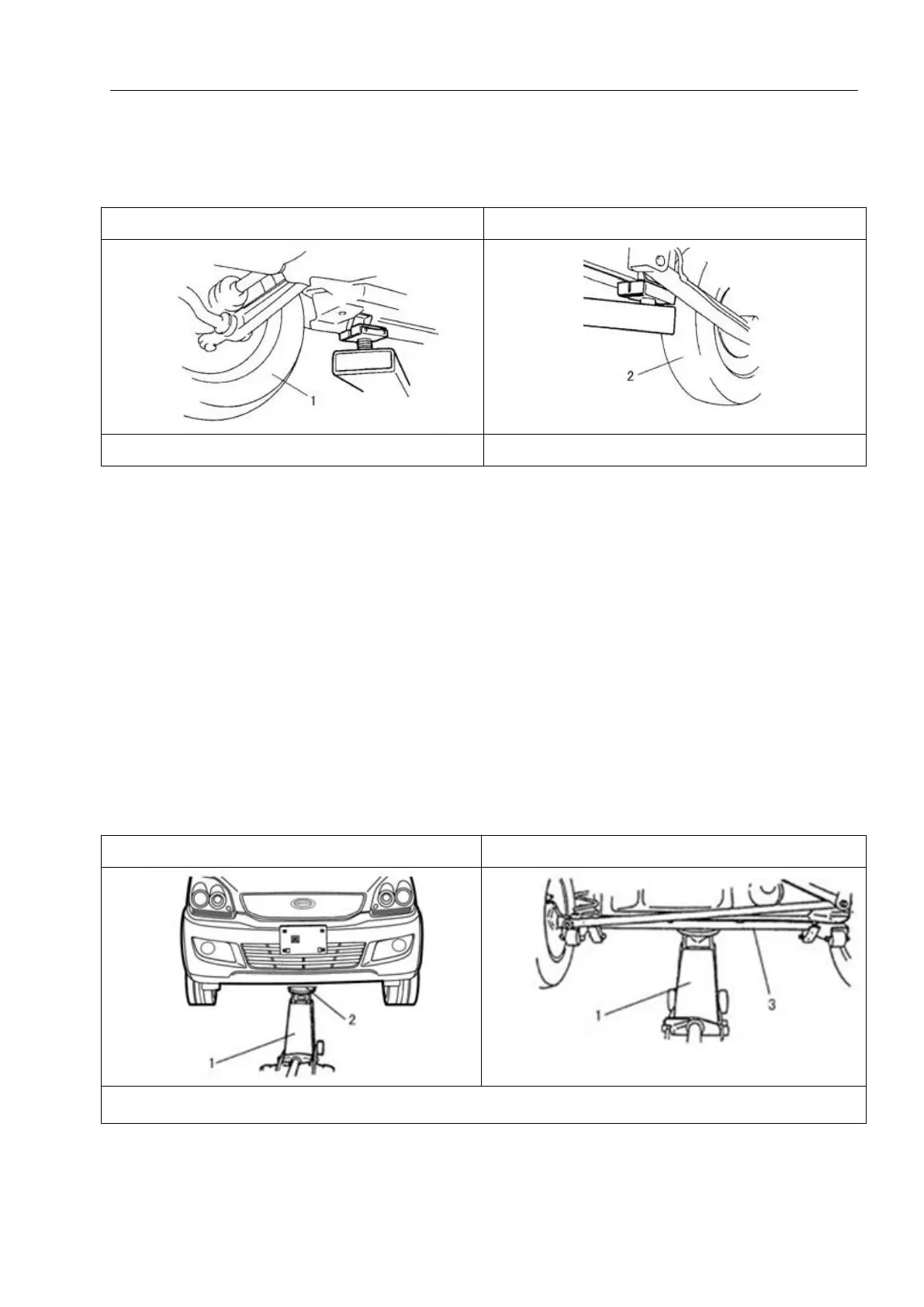

When the frame contacts the lifting jack, place the lifting jack at the position shown in
the figure (left and right are in the same position). Raise the vehicle until the four wheels are
a little off the ground and ensure that the vehicle does not fall when pushed on both sides of
the vehicle body. Work cannot begin until those are determined.
After raising the vehicle, absolutely ensure that the lifting jack is locked.
When using a plate jack
1-Plate jack; 2 - Front end lower cross piece; 3 - Rear axle
1. Use a jack to lift the front or rear end of the vehicle off the ground, ensuring that
the jack is firmly in contact with the drive motor front support beam or rear axle.
