8.2.6 Rear trailing arm
Removal

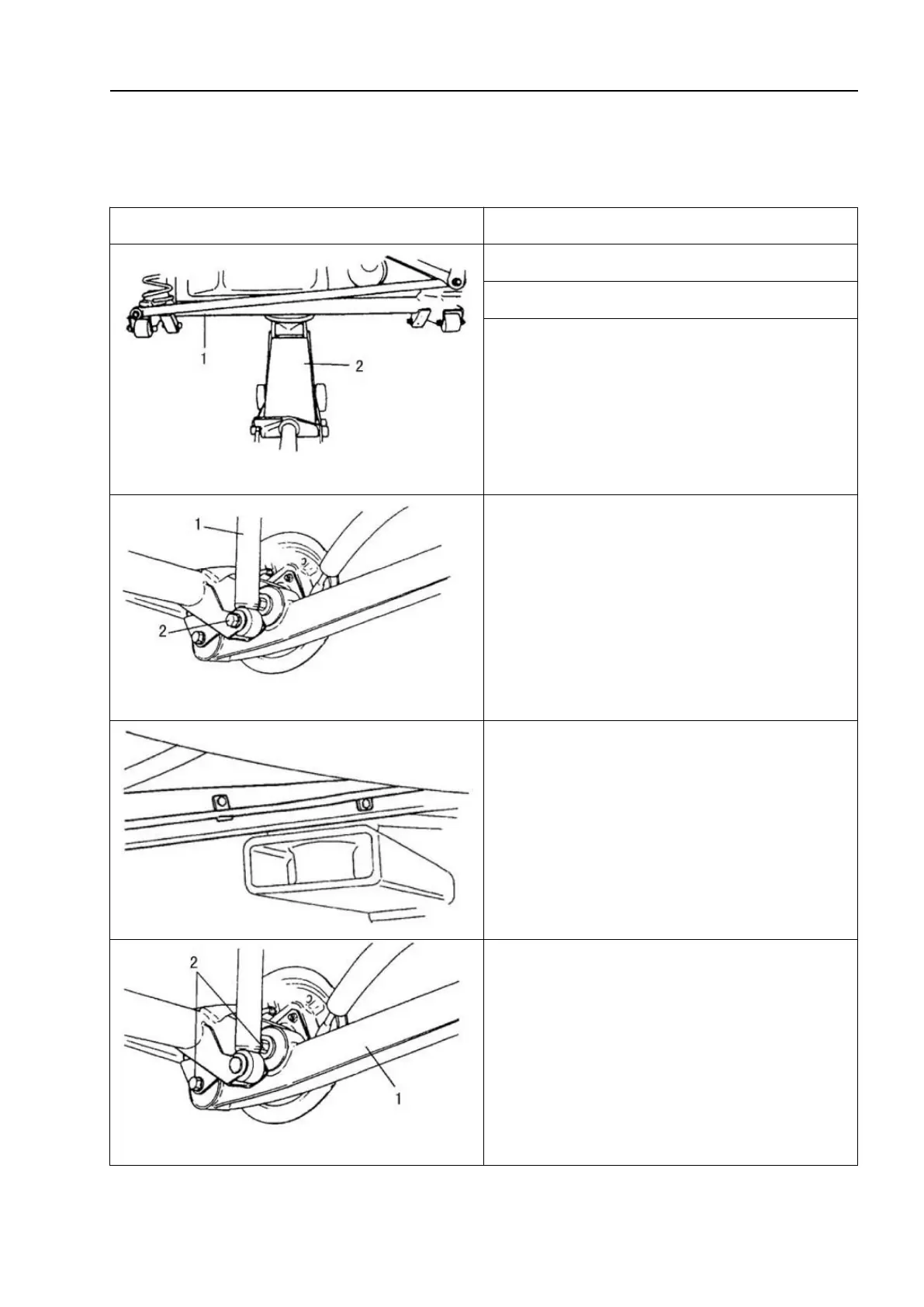

Schematic diagram
Steps
1 - Rear axle; 2-Jack
1. Raise the vehicle.
2. Remove the rear wheel.
3. Support the rear axle with a jack.
△
! Caution
Do not support the lateral thrust rod
with a jack to avoid damage to the lateral
thrust rod.
1 - Shock absorber; 2-Lower mounting bolt
4. Remove the rear shock absorber lower
mounting bolts.
5. For vehicles equipped with ABS,
disconnect the wheel speed sensor wire clip
from the rear trailing arm.
1-Rear trailing arm; 2-Rear mounting bolt
6. Remove the rear mounting bolts of the
rear trailing arm, and then remove the rear
trailing arm.
