7. Install the wheel and tighten the wheel
nuts to the specified torque.
Tightening torque: (d):85N·m(8.5kg·m,
61.5ft-lbs)

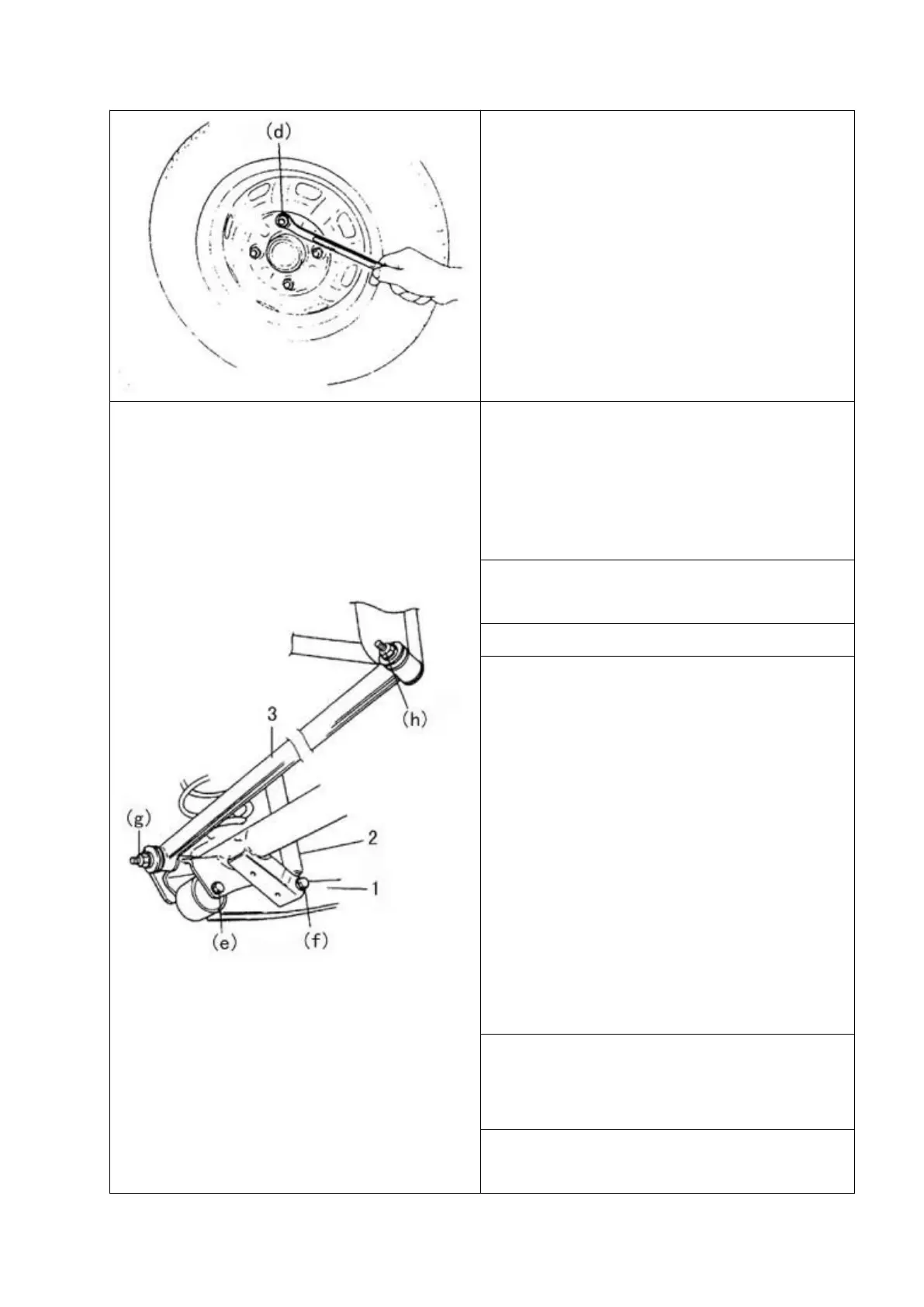

1 - Rear trailing arm; 2-Shock absorber;
3-Lateral thrust rod
8. After completing the above work, step
on the brake pedal 3 to 5 times with a load
of approximately 30 kg (661 lbs) to ensure
proper clearance between the wheel drum
and brake shoes.
9. Tighten the parking brake control
handle cover screw.
11. Tighten the left and right rear trailing
arm mounting nuts and rear shock absorber
lower mounting bolts to the specified
torque.
△!
Caution
When tightening these nuts and bolts,
it is necessary to ensure that the vehicle is
not lifted and unloaded.
Tightening torque: (e):80N·m(8.0kg·m,
58.0ft-lbs), (f):58N·m(5.8kg·m, 42.0ft-lbs),
(g):45N·m(4.5kg·m, 32.5ft-lbs),
(h):58N·m(5.8kg·m, 42.0ft-lbs)
12. Check to ensure that the brake drum is
not stuck and has the appropriate braking
force.
13. Perform a brake test (foot brake and
parking brake).
