Power distribution and control system

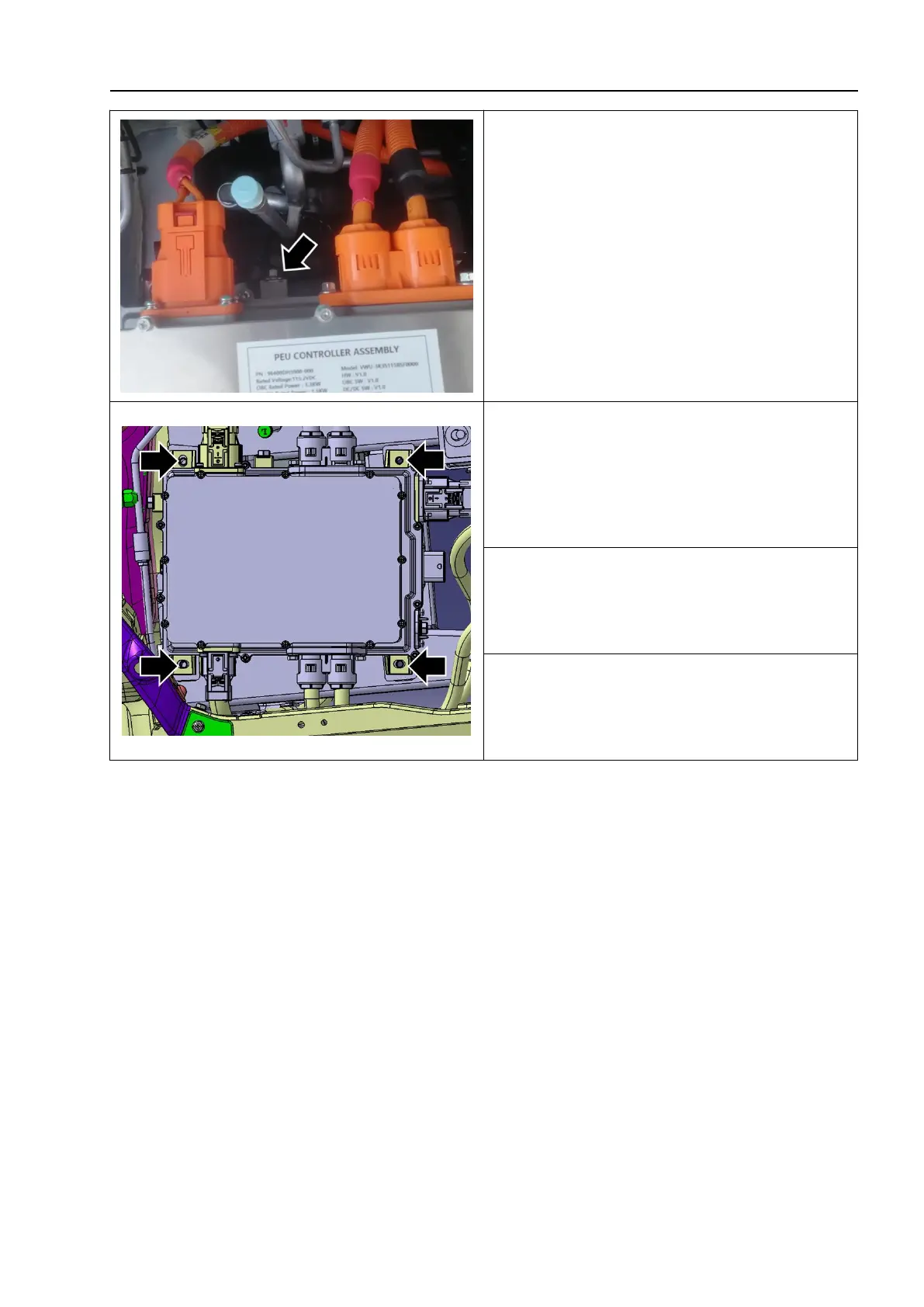

15. Unscrew the fixing bolt of the low
voltage negative harness-as shown by the
arrow-.
16. Unscrew the fixing bolt-as shown by the
arrow-and remove the PEU controller-1-.
Bolt – as shown by the arrow-tightening torque:
10~14N·m
1. The installation sequence is the reverse of
the removal sequence.
15.3.5 Removal and installation of slow charging harness
Removal and installation
△!
Danger
Vehicles that are unable to power on high voltage due to vehicle collisions or wading short
circuits. Separate the battery pack from the entire vehicle as early as possible.
△!
Danger
Wait for 15 minutes after disconnecting the negative battery cable.
△!
Danger
When disassembling and repairing accessories with high voltage electricity, it is necessary to
prepare high voltage protective equipment (insulating shoes, insulating gloves, insulating hooks, and
insulating pads).
