14.2.6 Removal and installation of power battery high voltage line
Removal and installation
△
! Danger
Wait for 15 minutes after disconnecting the negative battery cable.
△
! Danger
When disassembling and repairing accessories with high voltage electricity, it is
necessary to prepare high voltage protective equipment (insulating shoes, insulating gloves,
insulating hooks, and insulating pads).
△! Caution
Connect the harness connector securely, making sure you hear a click. Fault may occur
if there is no secure connection.

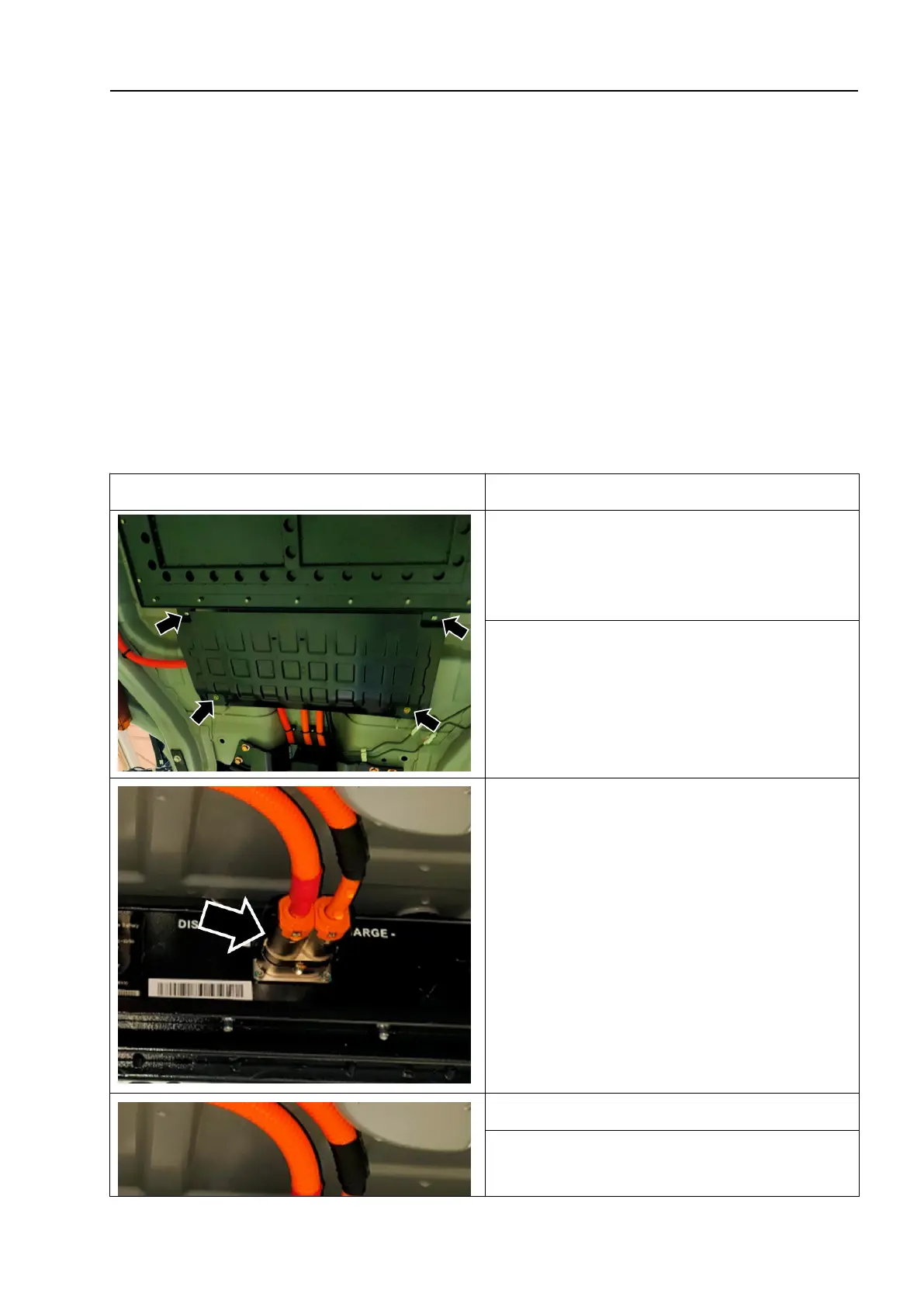

1. Turn the key switch to the "LOCK"
position and disconnect the negative
battery cable.
2. Unscrew the fixing bolts of the high
voltage wire protection plate - as shown by
the arrow -, and remove the high voltage
wire protection plate.
3. Disconnect the power battery high
voltage wire connection plug - as shown by
the arrow -.
4. Remove the high voltage wire guard.
5. Disconnect the power battery- power
