CENNTRO LOGISTAR 100 - Terminal Definition

Electrical accessories
447
16.2.1 Terminal definition
Terminal
Name
Function

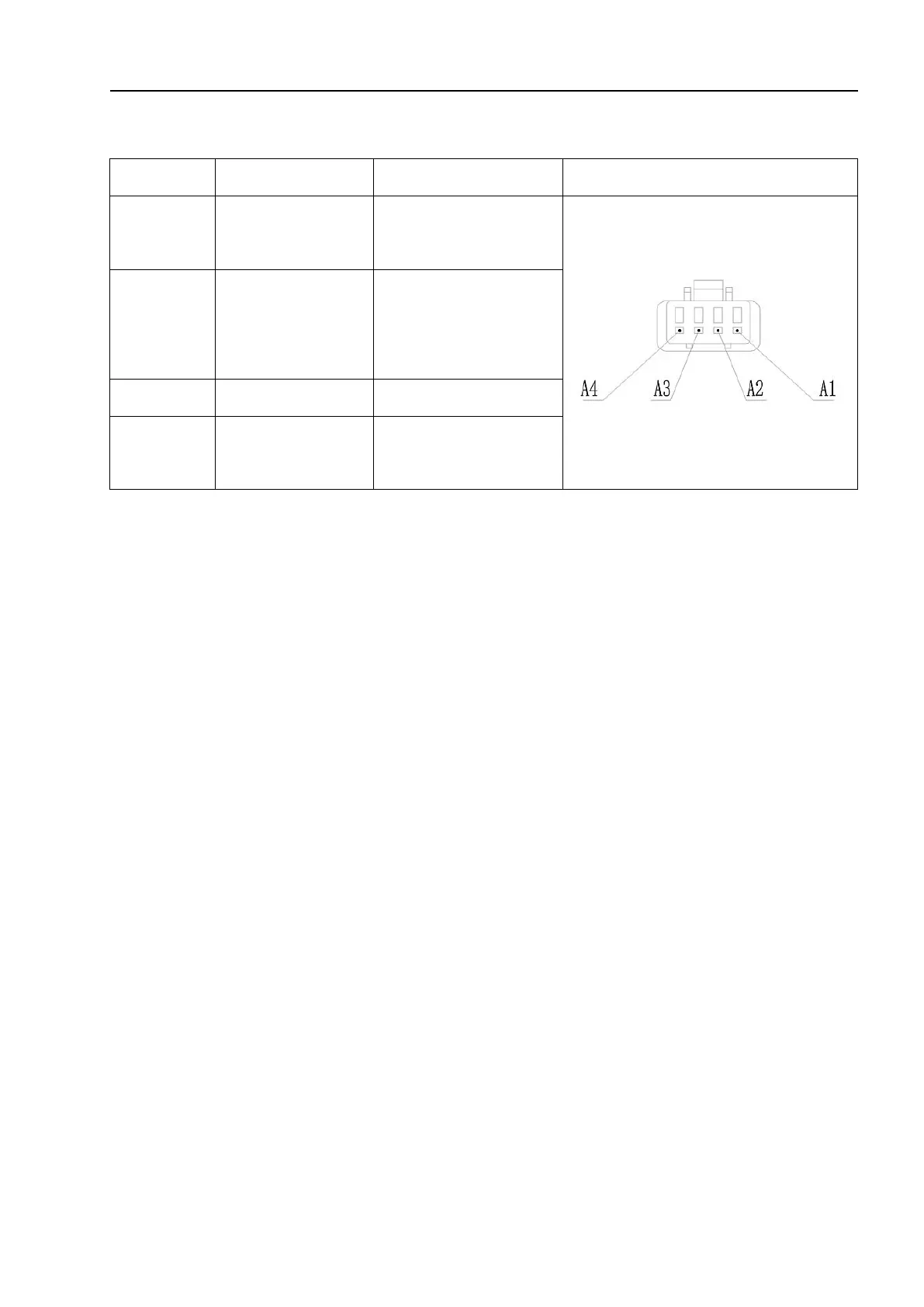

Schematic diagram
A1
CAM_POW
Camera power
supply+
A2
GND
Camera power
supply grounding
wire-
A3
CAM_CVBS
Camera video
A4
VGND
Camera shielding
ground
