Power distribution and control system
414
15.3.4 Removal and installation of PEU controller
Removal and installation
△!
Danger
There is high voltage and high temperature inside the product. Please do not touch
internal components, which may cause electric shock or burns.
△!
Danger
Wait for 15 minutes after disconnecting the negative battery cable.
△!
Danger
When disassembling and repairing accessories with high voltage electricity, it is necessary to
prepare high voltage protective equipment (insulating shoes, insulating gloves, insulating hooks, and
insulating pads).
△!
Caution
Connect the harness connector securely, making sure you hear a click. Fault may occur if there is
no secure connection.
1. Turn the key switch to the "LOCK" position
and disconnect the negative battery cable.

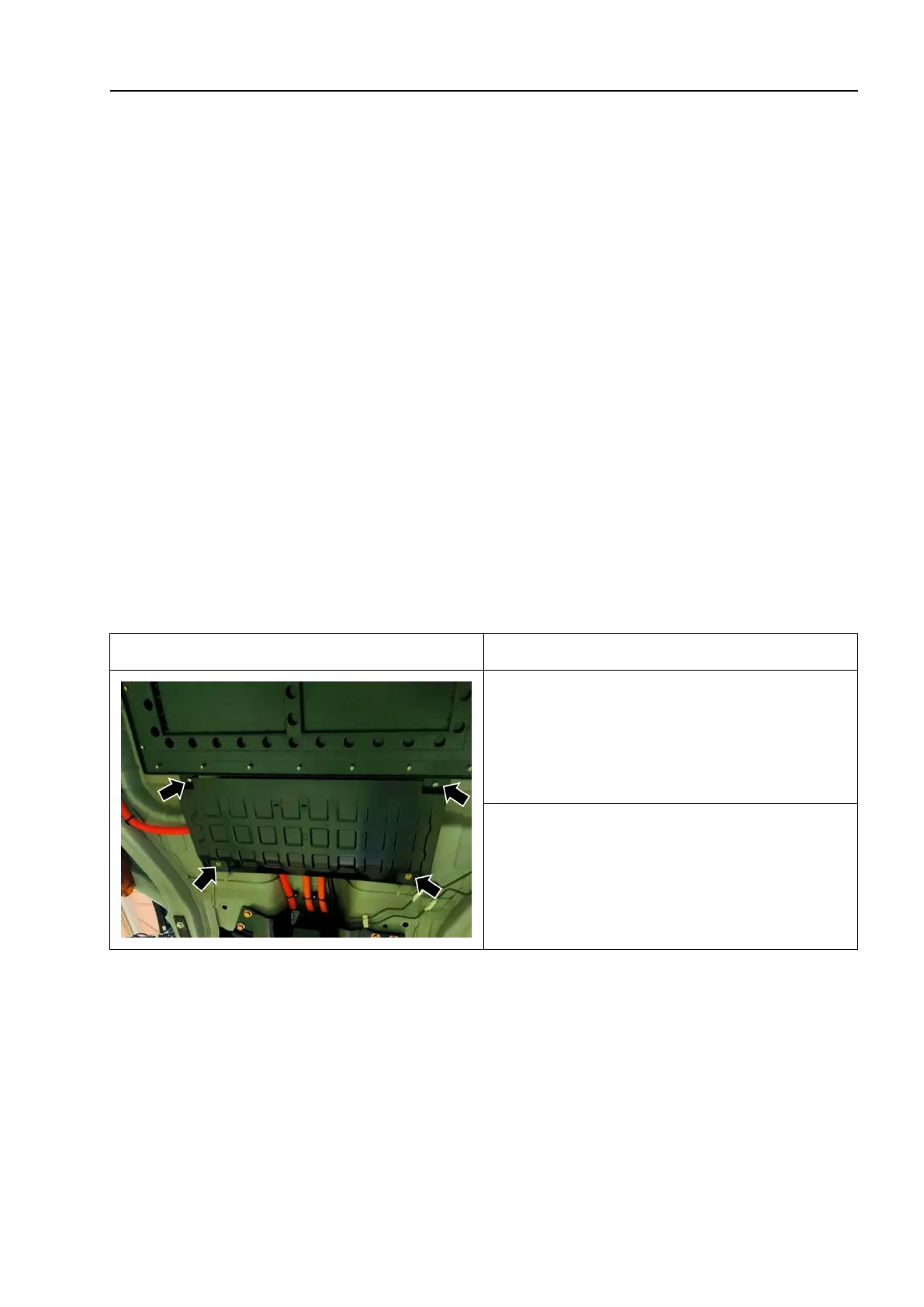

2. Unscrew the fixing bolts of the high voltage
wire protection plate-as shown by the arrow-,
and remove the high voltage wire protection
plate.
