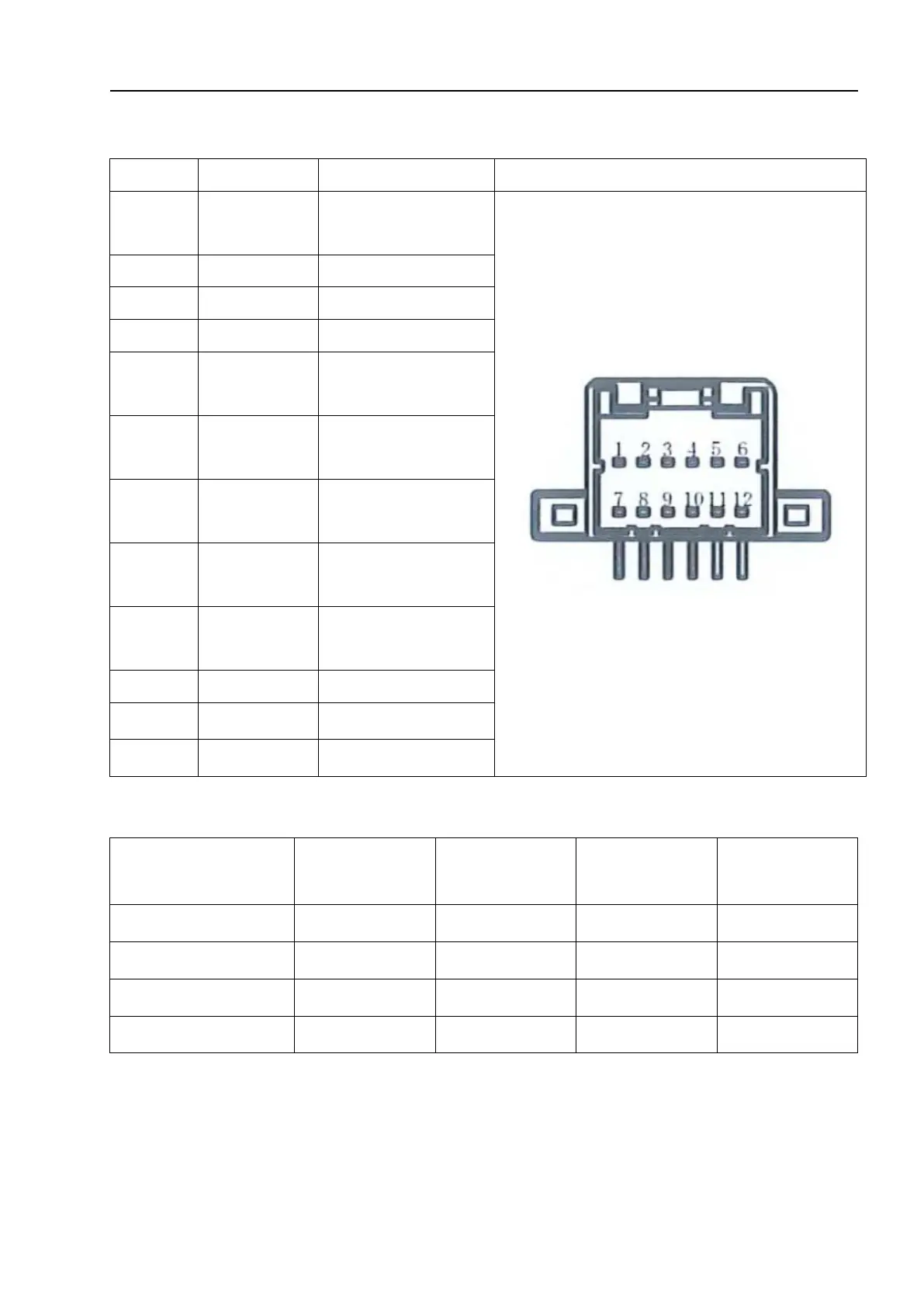

6.2.2 Shifter foot position
Terminal
Function
Remarks
Schematic diagram
1
Power
supply +12V
Operating range
9V-16V
2
Spare
3
GND
4
Spare
5
Small lamp
signal
Connected to
vehicle+12V
6
S gear
signal
Output 12V at
current gear
7
R gear
signal
Output 12V at
current gear
8
N gear
signal
Output 12V at
current gear
9
D gear
signal
Output 12V at
current gear
10
Spare
11
Spare
12
Spare
6.2.3 Shifter gear signal output logic
Gear position
Pin output
6-pin
7-pin
8-pin
9-pin
S gear
0
1
0
0
R gear
0
0
1
0
N gear
0
0
0
1
D gear
1
0
0
0
