Vehicle body

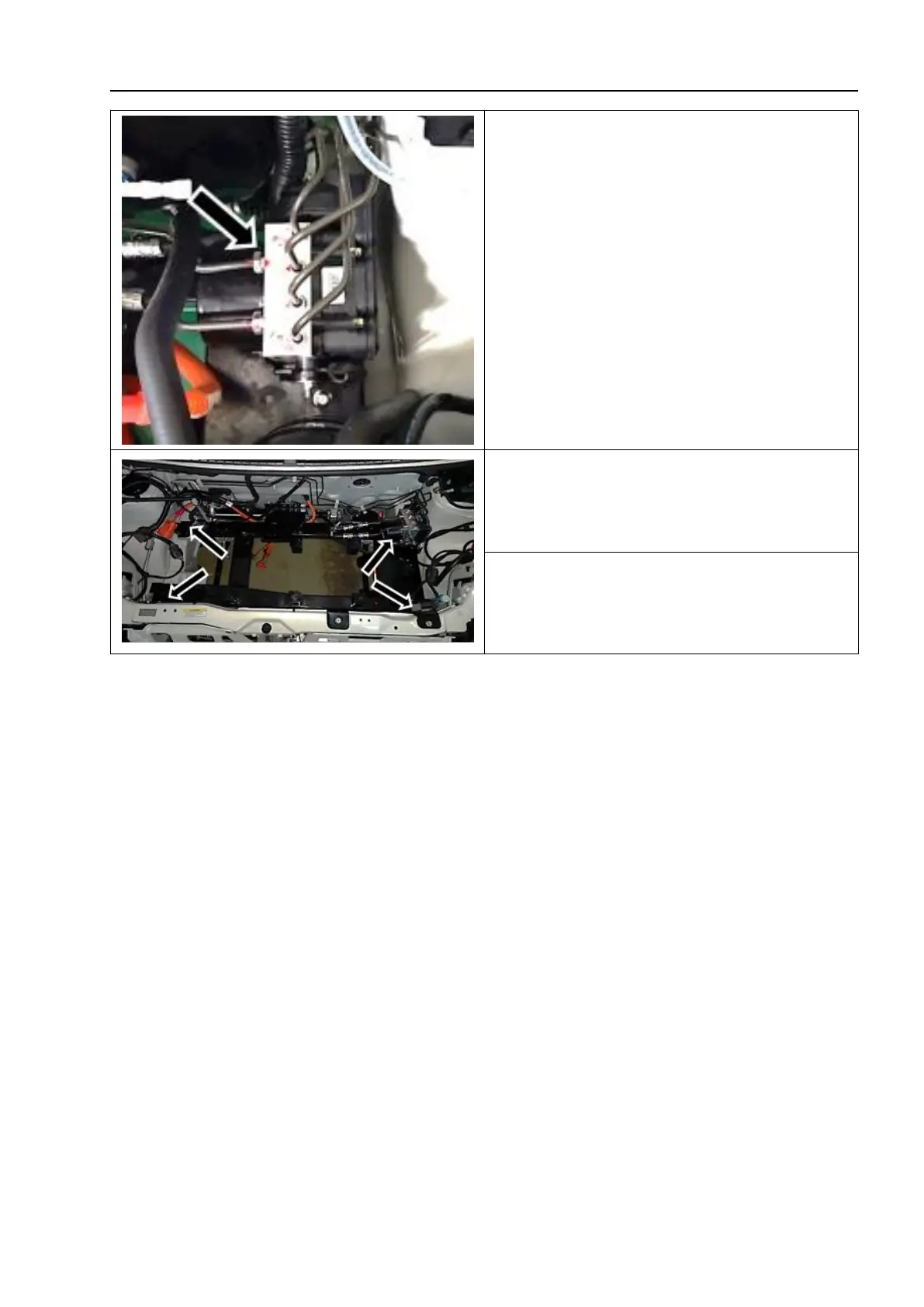

8. Remove the ESC assembly
9. Remove the fasteners on the left and
right sides of the second floor bracket
assembly.
10. Remove the second floor bracket
assembly.
Installation
Install in the reverse order of the removal procedure.
1. Install the second floor bracket assembly.
2. Install the fasteners on the left and right sides of the second floor bracket assembly.
Tightening torque: 45 N·m (4.5 kg·m, 32.5 ft-lbs)
3. Install the ESC assembly
4. Install the vacuum tank
5. Install the motor control unit.
6. Install the PEU controller assembly.
7. Install the low voltage battery.
8. Install the electronic vacuum pump
9. Connect the power battery.
10. Connect the negative cable of the low voltage battery.
