Power distribution and control system
425
Schematic diagram

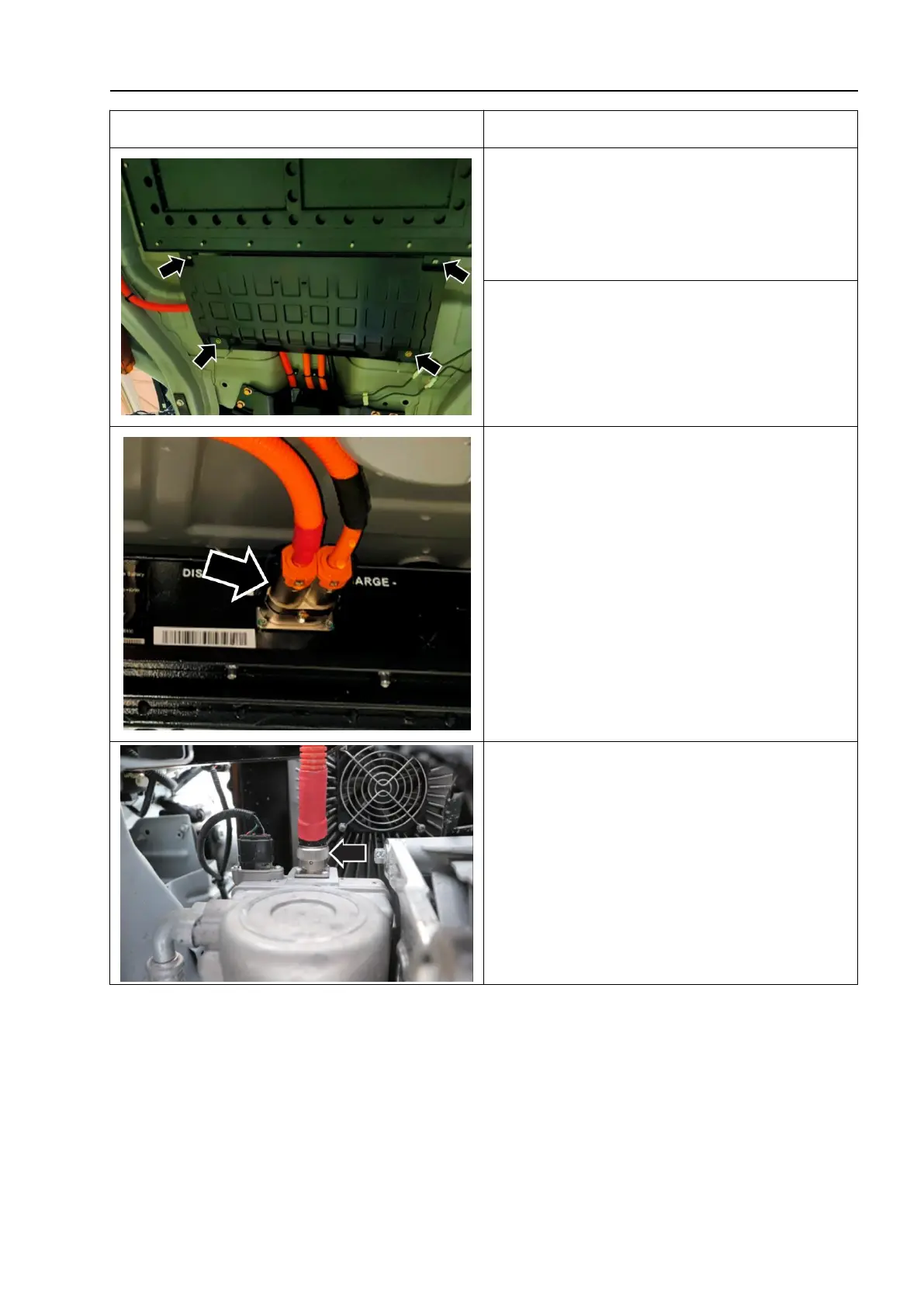

Removal steps
1. Turn the key switch to the "LOCK" position
and disconnect the negative battery cable.
2. Unscrew the fixing bolts of the high voltage
wire protection plate-as shown by the arrow-,
and remove the high voltage wire protection
plate.
3. Disconnect the power battery high voltage
wire connection plug-as shown by the arrow-.
4. Unscrew the compressor wire harness
connection plug - as shown by the arrow -.
