MODEL
182 & T182 SERIES
SERVICE MANUAL
12
3
300
LB
IN
(MIN)
TORQUE:
300
LB
IN
(MIN)
690
LB
IN
(MAX)
Detail B
1. Fairing
5. Wing
Tip
9.
Bolt
2. Lower
Rear Fairing
6. Navigation
and Strobe
Lights
10. Eccentric
Bushings
3. Wing
Flap
7.
Courtesy
Light
11. Washers
4. Aileron
8. Fuel
Filler Cap
12.
Nut

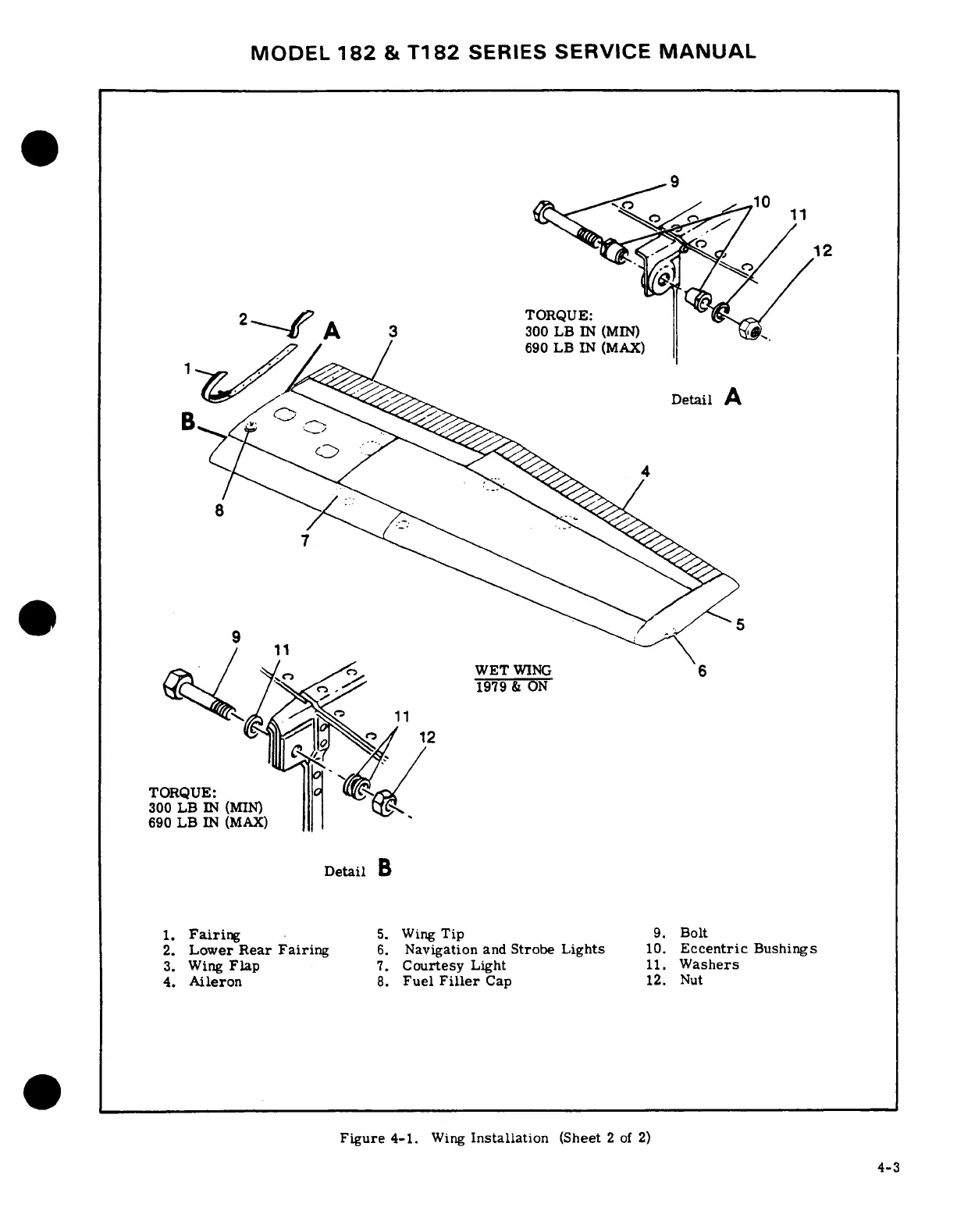

Figure
4-1.
Wing
Installation
(Sheet
2 of
2)
4-3
