MODEL
182
& T182
SERIES
SERVICE
MANUAL
1. Snap Ring
2. Outboard Grease
Seal Retainer
3. Outboard
Grease
Seal
Felf
15
4. Outboard Grease
Seal
Retainer
16
5. Bearing Cone
6. Wheel
Flange
24
7. Spacer
8. Tire
9. Tube
10. Wheel
Hub
? 18
11. Bearing Cup (Race)
12. Inboard Grease
Seal Retainer 22
13. Inboard Grease
/
Seal Felt 2
14. Brake Disc 20
15. Torque
Plate
MC CAULEY
WHEEL
16.
Pressure
Plate
SERIAL
18265176
THRU
17. Anchor Bolt
18265328 n
18.
Brake Cylinder 182619
19.
Bleeder Valve
0
20.
O-Ring
(Piston)
21.
Brake
Piston
22.
Brake
Lining
23. Capscrew
24. Back Plate

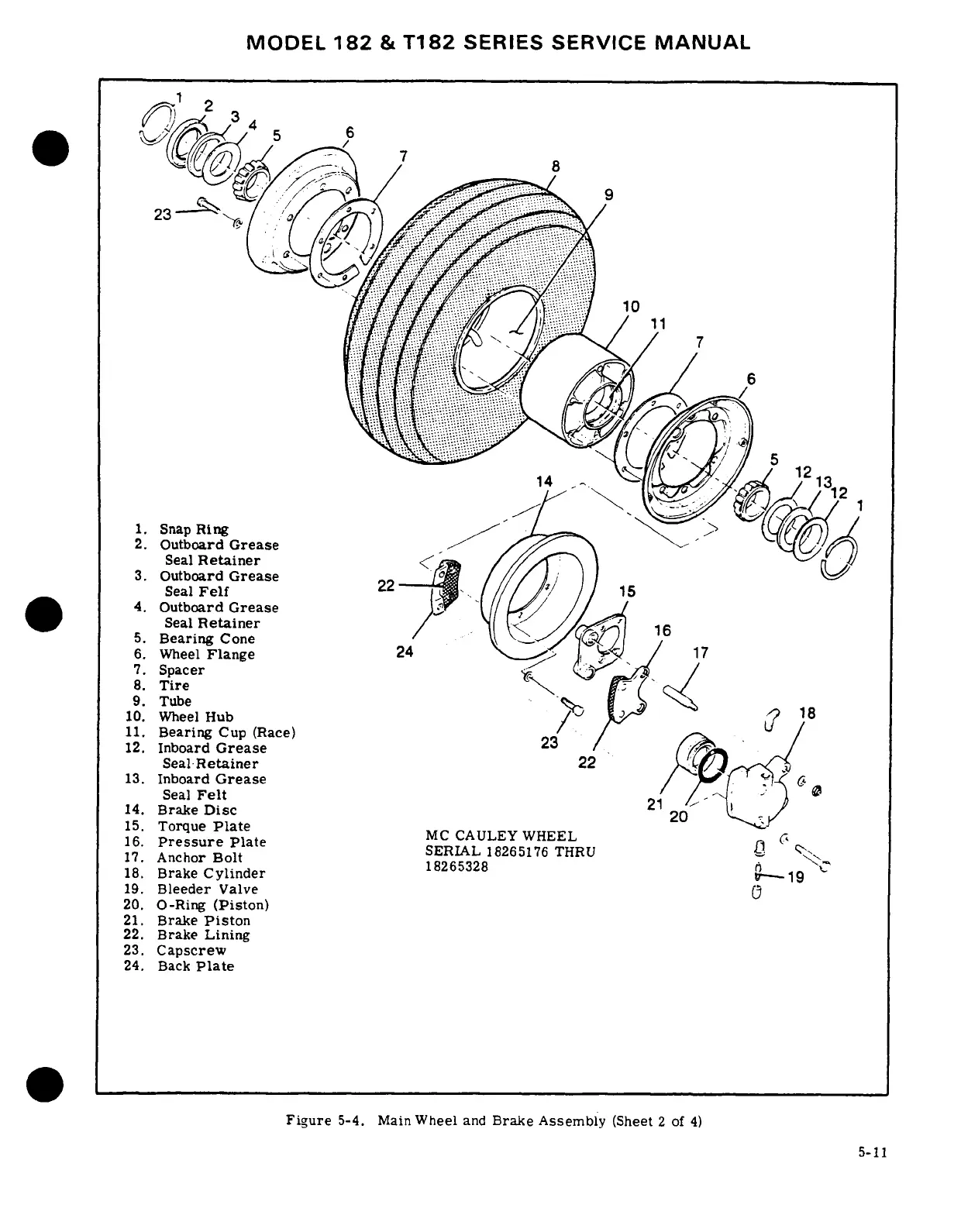

Figure
5-4. Main Wheel and
Brake Assembly (Sheet
2 of 4)
5-11
