MODEL 182 &
T182 SERIES SERVICE
MANUAL
15
1
VENT
HOLE-
17
4
13
12
11
16
15
14
13
10
4
11
NOTE
Filler
plug
(17) must
be vented
so
pressure
cannot build
up in the
reservoir
during
brake
operation.
3
Remove plug
and drill 1/16"
hole,
30
°
from vertical, if plug
is not
vented.
DO
NOT DAMAGE
LOCK-O-SEAL
16
15
THRU
18266590
ASSEMBLY
OF PISTON
1. Clevis
7.
Body
13.
Piston
Spring
2.
Jamb Nut
8.
Reservoir
14. Piston
3. Piston
Rod
9. O-Ring
15. Lock-O-Seal
4.
Cover
10.
Cylinder
16.
Compensating
Sleeve
5. Setscrew
11.
Piston
Return Spring
17. Filler
Plug
6. Cover
Boss
12. Nut
18.
Screw

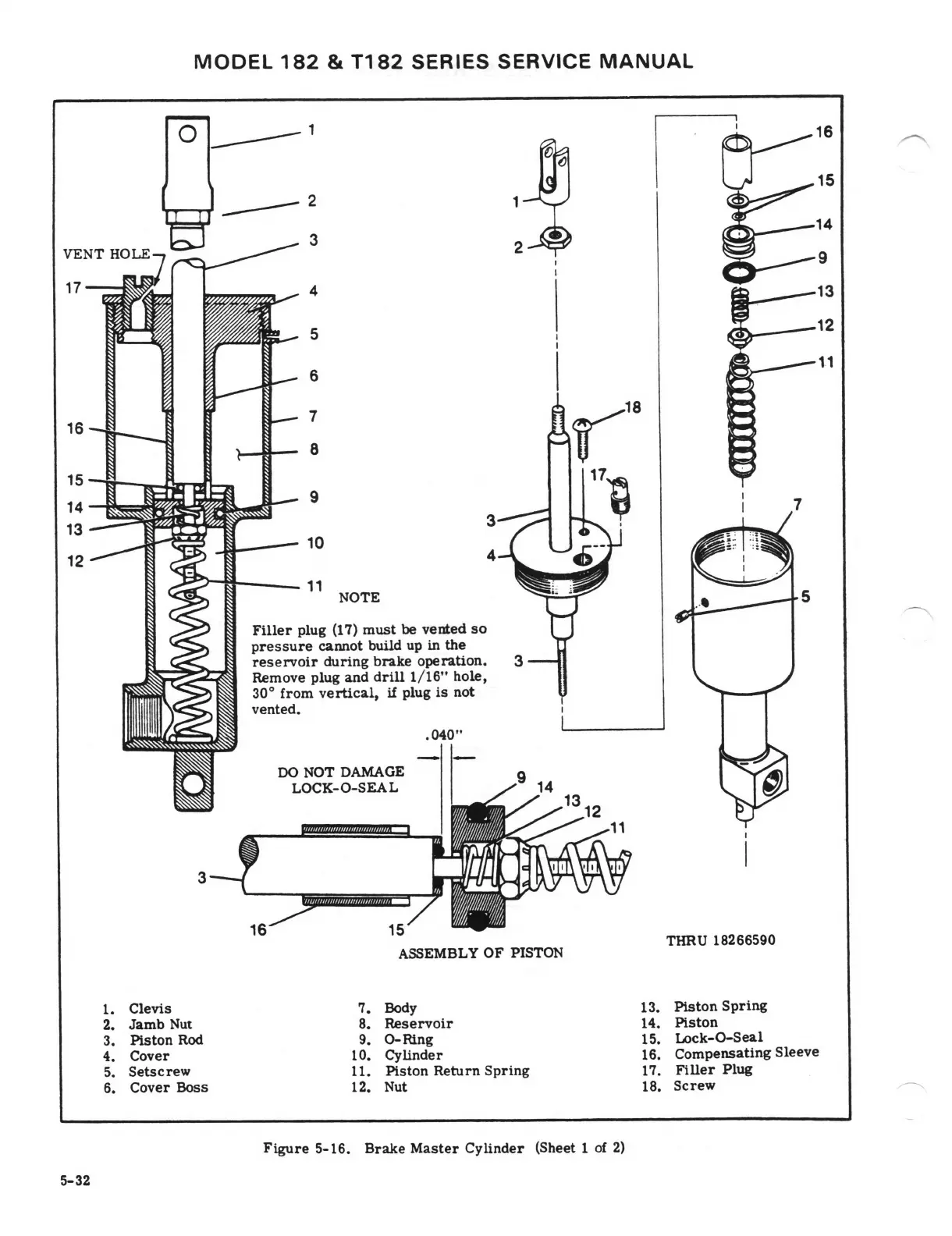

Figure
5-16. Brake Master
Cylinder (Sheet 1 of
2)
5-32
