MODEL 182 & T182 SERIES SERVICE MANUAL
NOTE
BEGINNING
WITH
18267931
Torque propeller mounting bolts
to 660-780
lb-in.
5
6
1. Spinner
3. Aft Spinner Bulkhead
4. Screw
OPTIONAL
3-BLADED
5.
Washer
T182
ONLY
6.
Nut
7.
Screw
8.
Propeller
Hub
9. Forward
Support
10. Mylar Washer

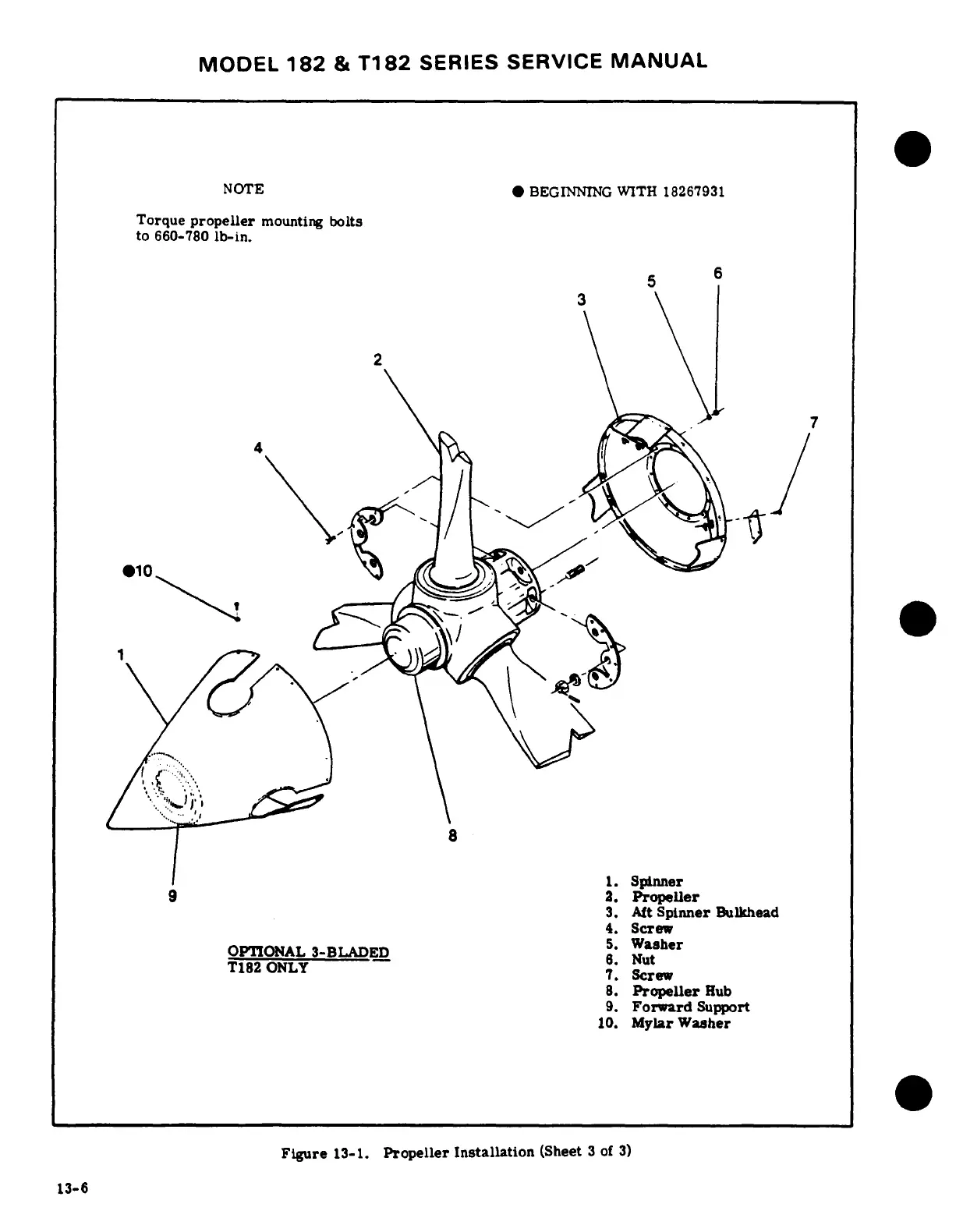

Figure 13-1. Propeller Installation (Sheet 3 of 3)
13-6
