MODEL
182
&
T182
SERIES
SERVICE
MANUAL
12
//
-I
BEGINNING
WITH
18268059
USED ON BATTERY AND
STARTER CONTACTORS
12
1.
Bolt
2.
Cover
9
3.
Battery
4. Cover - Positive Te-rminal 10
5. Drain
Tube
6. Positive Cable
7. Ground Strap
8. Clamp
9.
Bolt
Detail
B
10. TailconeSkin
11.
Nut
12. Cover -
Battery Contactor
BEGINNING
WITH
18267731

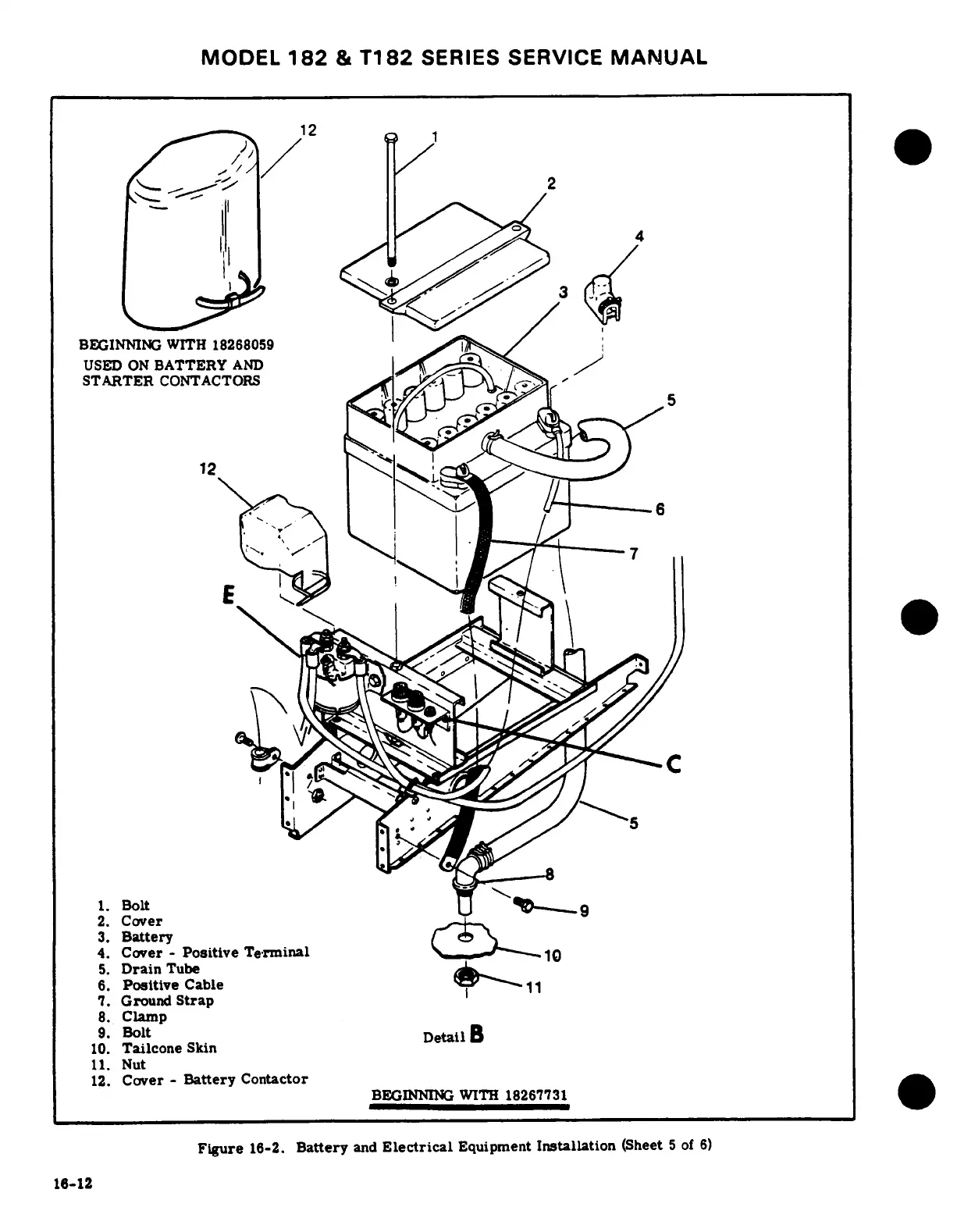

Figure
16-2. Battery and Electrical
Equipment Installation (Sheet
5 of 6)
16-12
