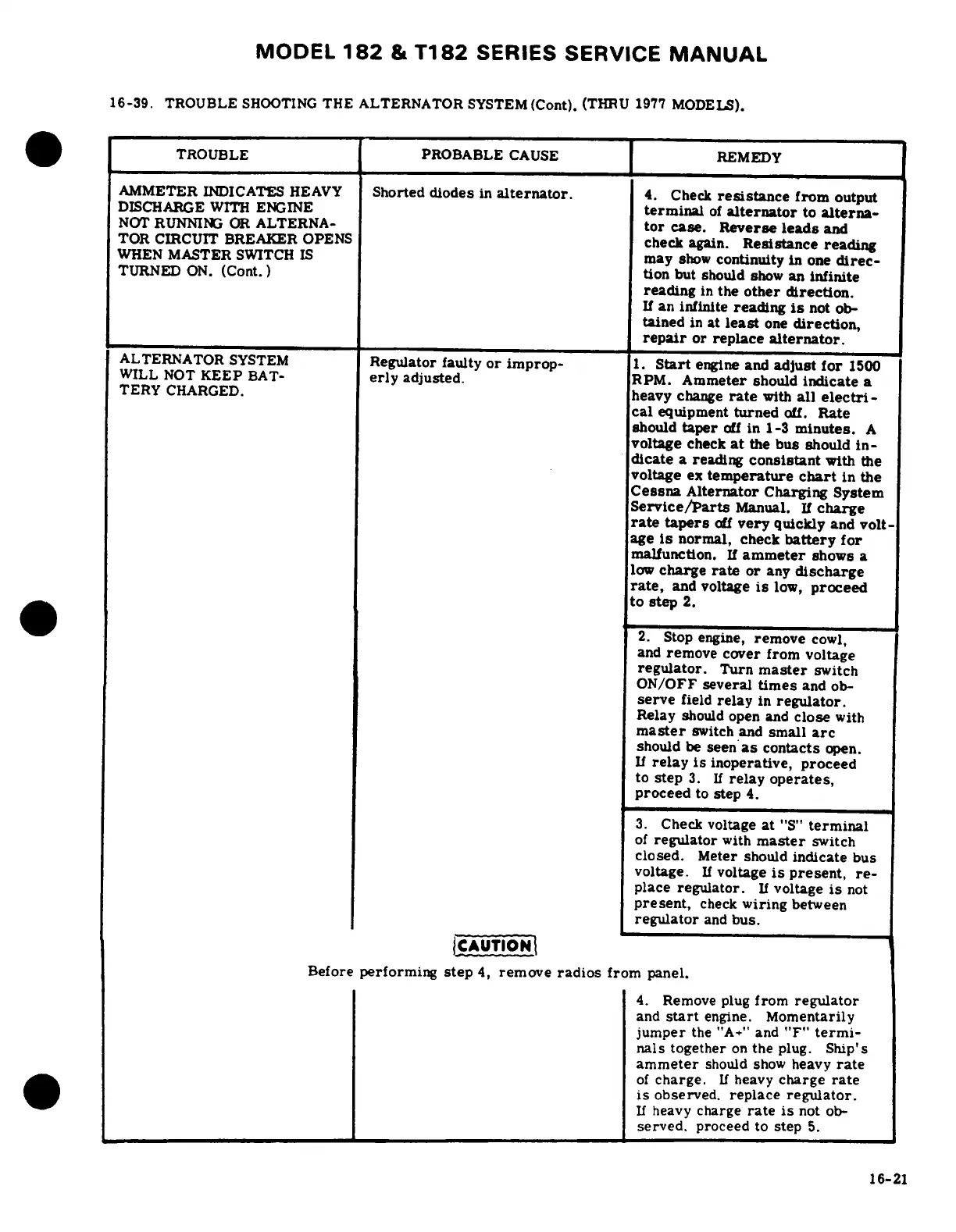

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
16-39.
TROUBLE
SHOOTING
THE
ALTERNATOR
SYSTEM
(Cont).
(THRU
1977
MODELS).
TROUBLE
PROBABLE
CAUSE
REMEDY
AMMETER
INDICATES
HEAVY
Shorted
diodes
in
alternator.
4.
Check
resistance
from
output
DISCHARGE
WITH
ENGINE
terminal
of
alternator
to
alterna-
NOT
RUNNING
OR
ALTERNA-
tor
case.
Reverse
leads
and
TOR
CIRCUIT
BREAKER
OPENS
check
again.
Resistance
reading
WHEN
MASTER
SWITCH
IS
may
show
continuity
in
one
direc-
TURNED
ON.
(Cont.)
tion
but
should
show
an
infinite
reading
in
the
other
direction.
If
an
infinite
reading
is
not
ob-
tained
in
at
least
one
direction,
repair
or
replace
alternator.
ALTERNATOR
SYSTEM
Regulator
faulty
or
improp-
1.
Start
engine
and
adjust
for
1500
WILL
NOT
KEEP
BAT-
erly
adjusted.
RPM.
Ammeter
should
indicate
a
TERY
CHARGED.
heavy
change
rate
with
all
electri-
cal
equipment
turned
off.
Rate
should
taper
off
in
1-3
minutes.
A
voltage
check
at
the
bus
should
in-
dicate
a
reading
consistant
with
the
voltage
ex
temperature
chart
in
the
Cessna
Alternator
Charging
System
Service/Parts
Manual.
If
charge
rate
tapers
off
very
quickly
and
volt-
age
is
normal,
check
battery
for
malfunction.
If
ammeter
shows
a
low
charge
rate
or
any
discharge
rate,
and
voltage
is
low,
proceed
to
step
2.
2.
Stop
engine,
remove
cowl,
and
remove
cover
from
voltage
regulator.
Turn
master
switch
ON/OFF
several
times
and
ob-
serve
field
relay
in
regulator.
Relay
should
open
and
close
with
master
switch
and
small
arc
should
be
seen
as
contacts
open.
If
relay
is
inoperative,
proceed
to
step
3.
If
relay
operates,
proceed
to
step
4.
3.
Check
voltage
at
"S"
terminal
of
regulator
with
master
switch
closed.
Meter
should
indicate
bus
voltage.
If
voltage
is
present,
re-
place
regulator.
If
voltage
is
not
present,
check
wiring
between
regulator
and
bus.
Before
performing
step
4,
remove
radios
from
panel.
4.
Remove
plug
from
regulator
and
start
engine.
Momentarily
jumper
the
"A+"
and
"F"
termi-
nals
together
on
the
plug.
Ship's
ammeter
should
show
heavy
rate
of
charge.
If
heavy
charge
rate
is
observed,
replace
regulator.
If
heavy
charge
rate
is
not
ob-
served.
proceed
to
step
5.
16-21
