Cessna 182 1978 - Page 440

To Next Page

To Previous Page

MODEL

182

T182

SERIES

SERVICE

MANUAL

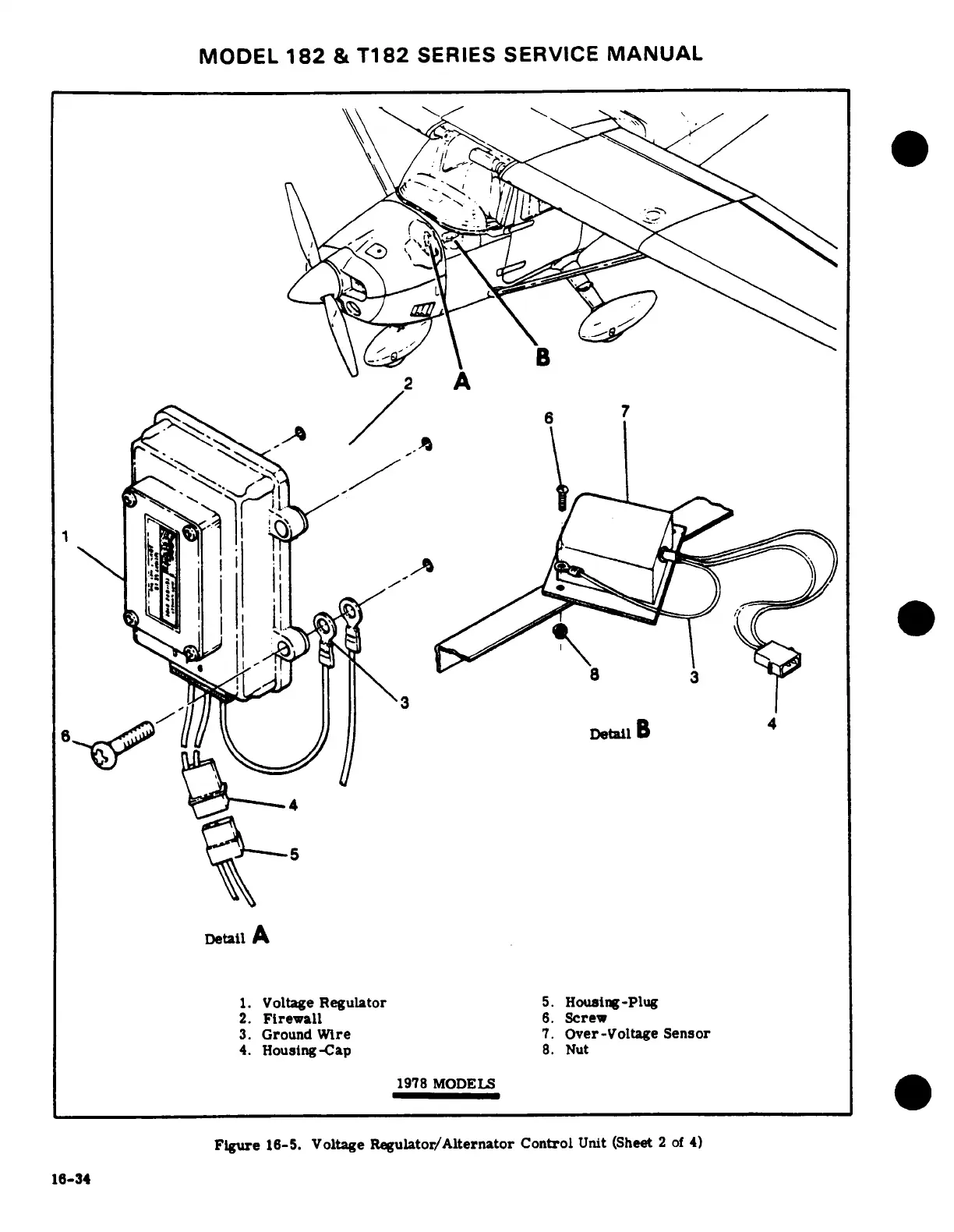

Detail

Voltage

Regulator

Housing-Plug

Firewall

Screw

Ground

Wire

Over-Voltage

Sensor

Housing-Cap

Nut

1978

MODELS

Figure

16-5.

Voltage

Regulator/Alternator

Control

Unit

(Sheet

16-34
