MODEL 182 & T182 SERIES SERVICE MANUAL
NOTE
FILLER - 2024-T4 ALCLAD
This repair applies to either
front or rear spar
if the spar
is
a single channel.
1/4" EDGE MARGIN (TYP.)
CLEAN OUT
DAMAGED AREA .
DOUBLER
WING SPAR
3/4" RIVET
SPACING
(TYPICAL ALL PARTS)
1/4" EDGE MARGIN (TYP. )
- REPAIR PARTS
-- WING SKIN
REPAIR
PARTS
IN CROSS
SECTION

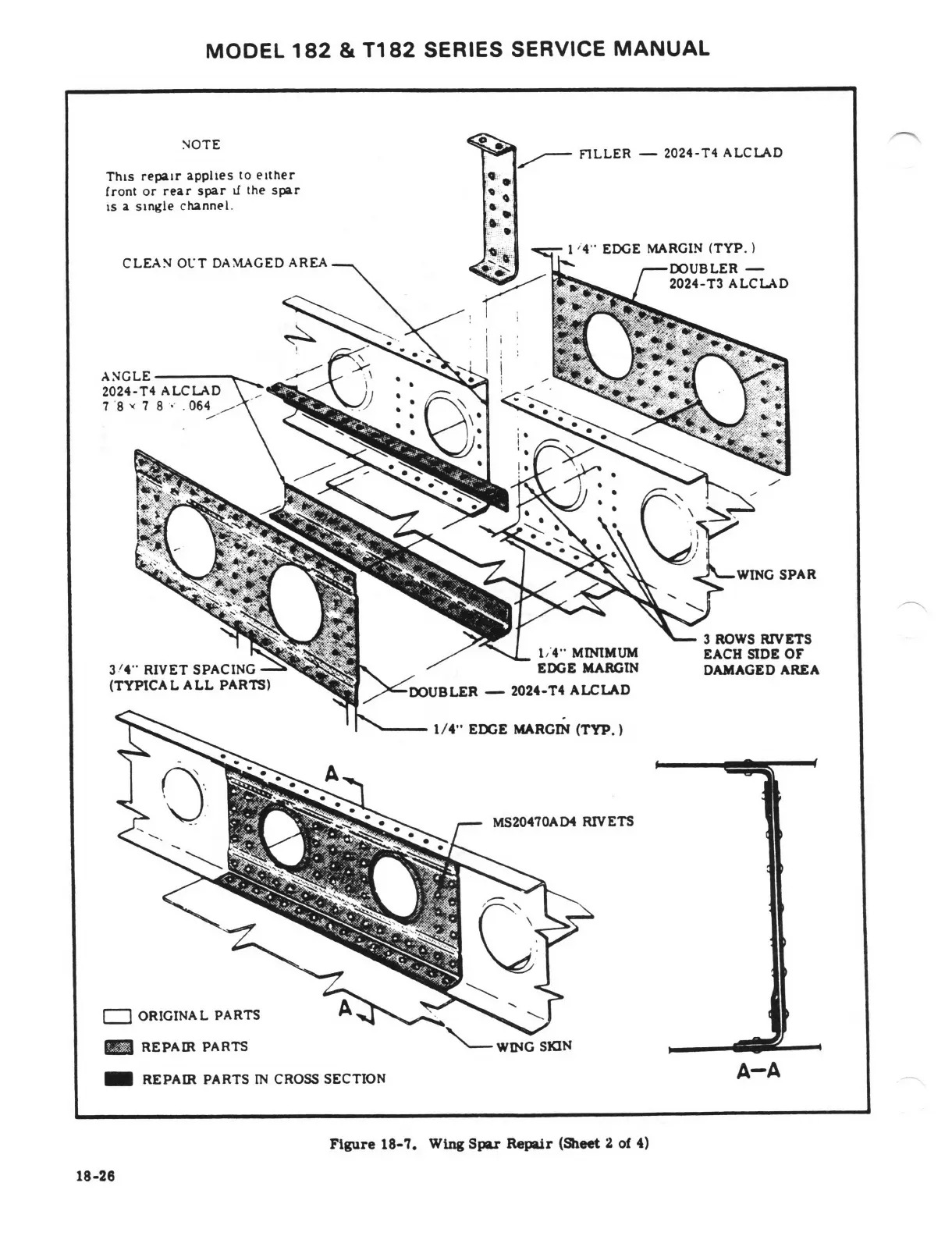

Figure 18-7. Wing Spar Repair (Sheet 2 of 4)
18-26
