Cessna 182 1978 - Page 54

MODEL 182
& T182 SERIES SERVICE
MANUAL
CONTROL COLUMN
BEARINGS
NEEDLE
BEARING
.
ROLLERS
HREADS
NEEDLE BEARING'
NEEDLE BEARINGS
ROD END
BEARINGS
-- ALSO REFER TO
PARAGRAPH 2-47 AILERON BELLCRANK
- N D BNNEEDLE BEARINGS
DO NOT
OIL
IF OPERAING
*DO NOT OIL IF OPERATING
(
IN EXTREMELY DUSTY
CONDITIONS
NOTES
Sealed bearings require no lubrication.
Do not lubricate roller chains or cables except under seacoast conditions. Wipe with a clean,
dry cloth.
Lubricate unsealed pulley bearings, rod ends, Oilite bearings, pivot and hinge points, and any
other friction point obviously needing lubrication, with general purpose oil every 1000 hours or
oftener if required.
Paraffin wax rubbed on seat rails will ease sliding the seats fore and aft.
Lubricate door latching mechanism with MIL-G-81322A general purpose grease, applied sparingly
to friction points, every 1000
hours or oftener, if binding occurs. No
lubrication is recommended
on the
rotary
clutch.

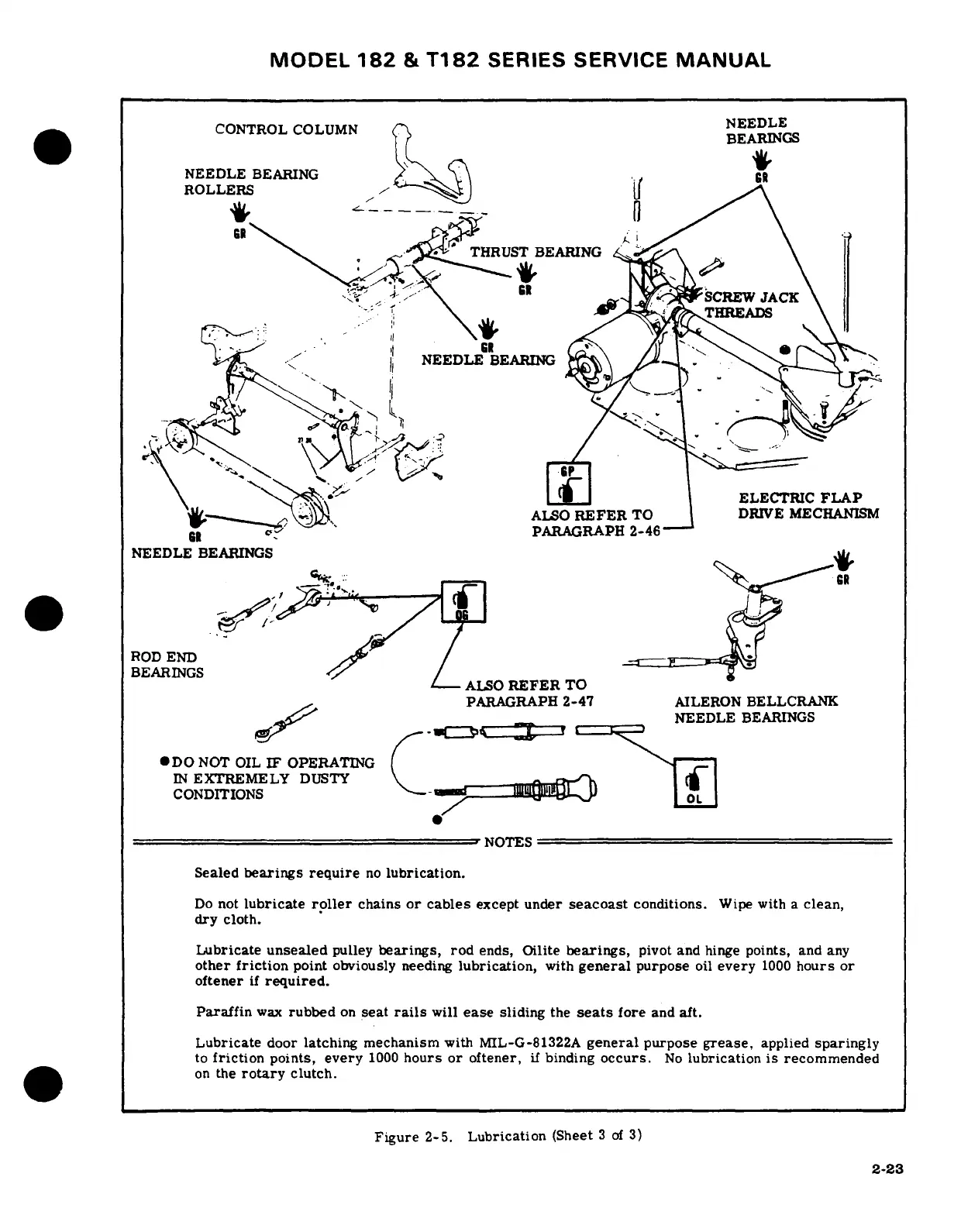

Figure 2-5.
Lubrication
(Sheet 3 of 3)
2-23
