Chroma A620028 - Page 55

Manual Operation
3-7
600V/0A ~ 25A will map to 4-20mA as shown in Figure 3-7 (c).
d. Selecting Vref=5KOhm means the DC Power Supply’s output 0V -
600V/0A ~ 25A will map to 0-5KOhm as shown in Figure 3-7 (d).
DC SOURCE SET
600V/25A
APG INPUT 5V
DC SOURCE SET
APG INPUT 10V
600V/25A
(a) (b)
DC SOURCE SET
600V
/25A
APG INPUT 4 ~ 20mA
DC SOURCE SET
APG INPUT 5KOhm
600V/25
A
(c) (d)

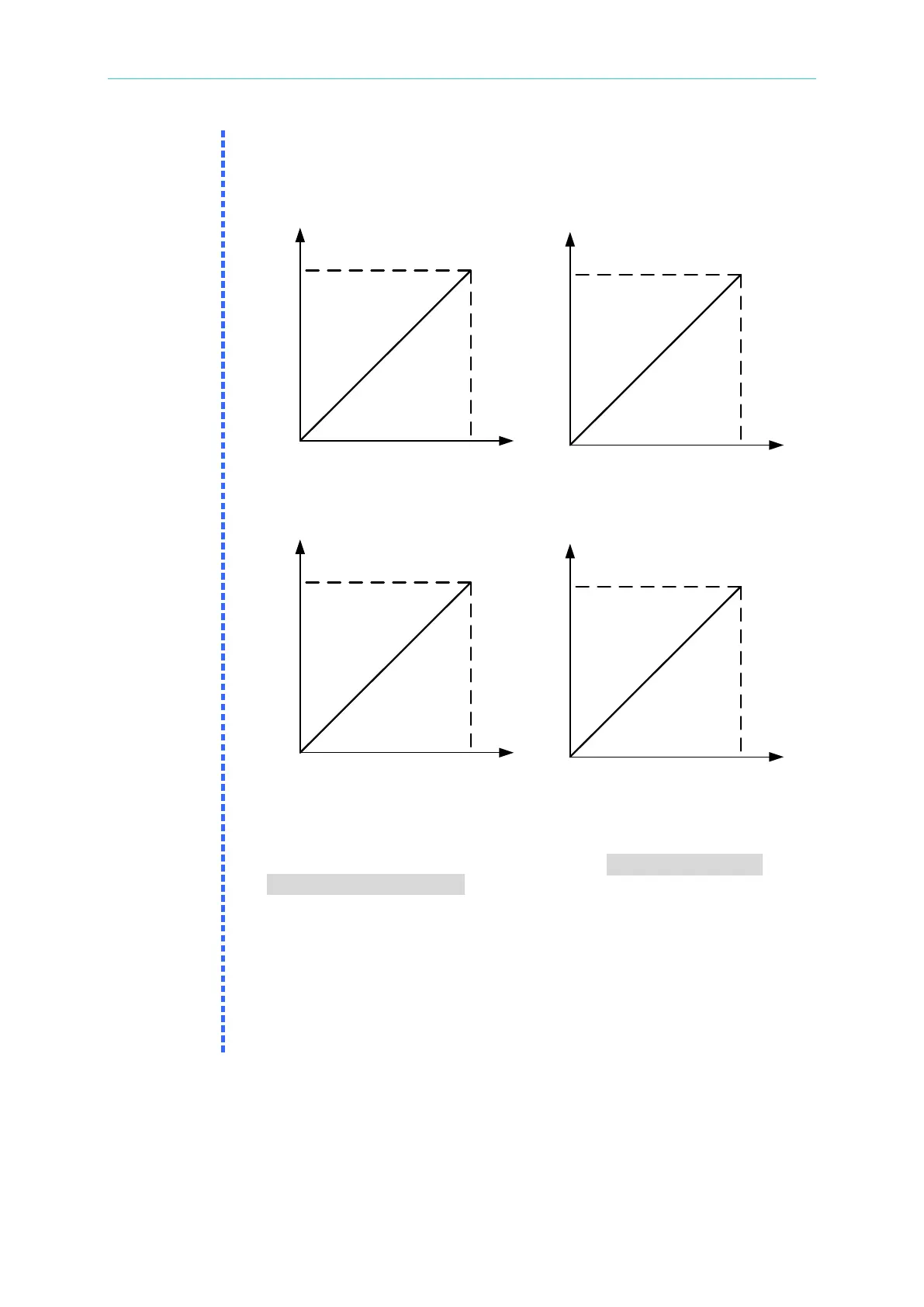

Figure 3-7
2.
APG VMEAS/APG IMEAS has 4 selections: NONE / Vref(0-5V) /
Vref(0-10V) / Iref(4-20mA) where:
a. Selecting Vref=5V means the DC Power Supply’s measurement
output 0 - 600V/0A ~ 25A will map to 0-5V as shown in Figure 3-8
(a).
b. Selecting Vref=10V means the DC Power Supply’s measurement
output 0 - 600V/0A ~ 25A will map to 0-10V as shown in Figure 3-8
(b).
c. Selecting Iref=4-20mA means the DC Power Supply’s measurement
output 0 - 600V/0A ~ 25A will map to 4mA-20mA as shown in
Figure
3-8 (c).
