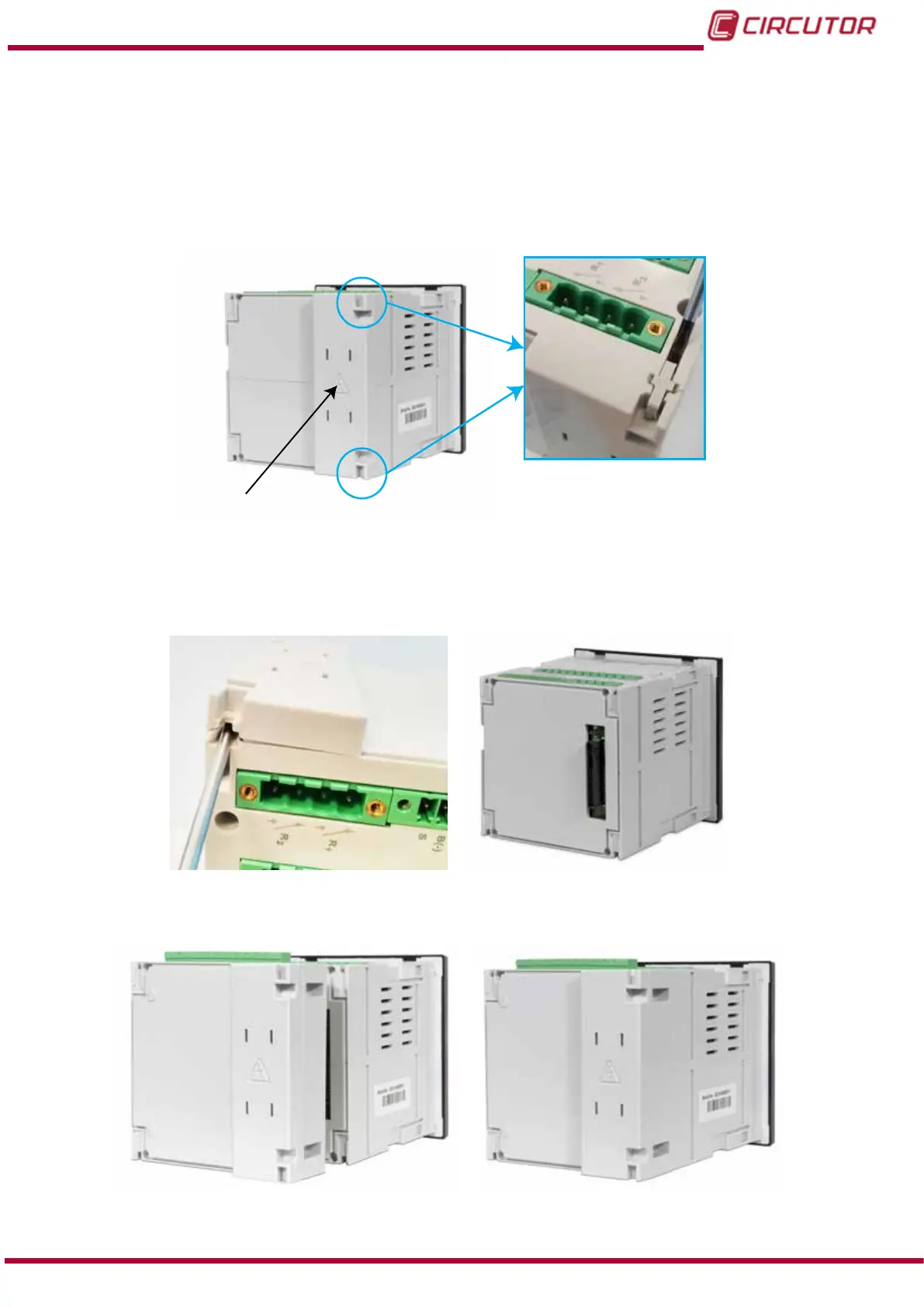

B- Protective cove version 2
To install, rstly remove the protective cover of the expansion connector located at the rear of
the unit. To do so:
a.- Remove the two fastening pins that secure the protective cover with a at tip screwdriver,
Figure 146.
Protective cover
Figure 146: Remove the two fastening pins.
b.- Remove the protective cover by inserting a flat tip screwdriver into the fixing slot and press
the cover upwards.(Figure 147)
Figure 147: Remove the protective cover.
Connect the expansion module to the unit, Figure 148.
Figure 148: Connect the expansion module.
211
Instruction Manual
CVM-B100 - CVM-B150
