Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the Relay digital
Inputs/Outputs icon
.
Press the button
to open the main conguration screen of the relay digital Inputs/Outputs
module, Figure 156.

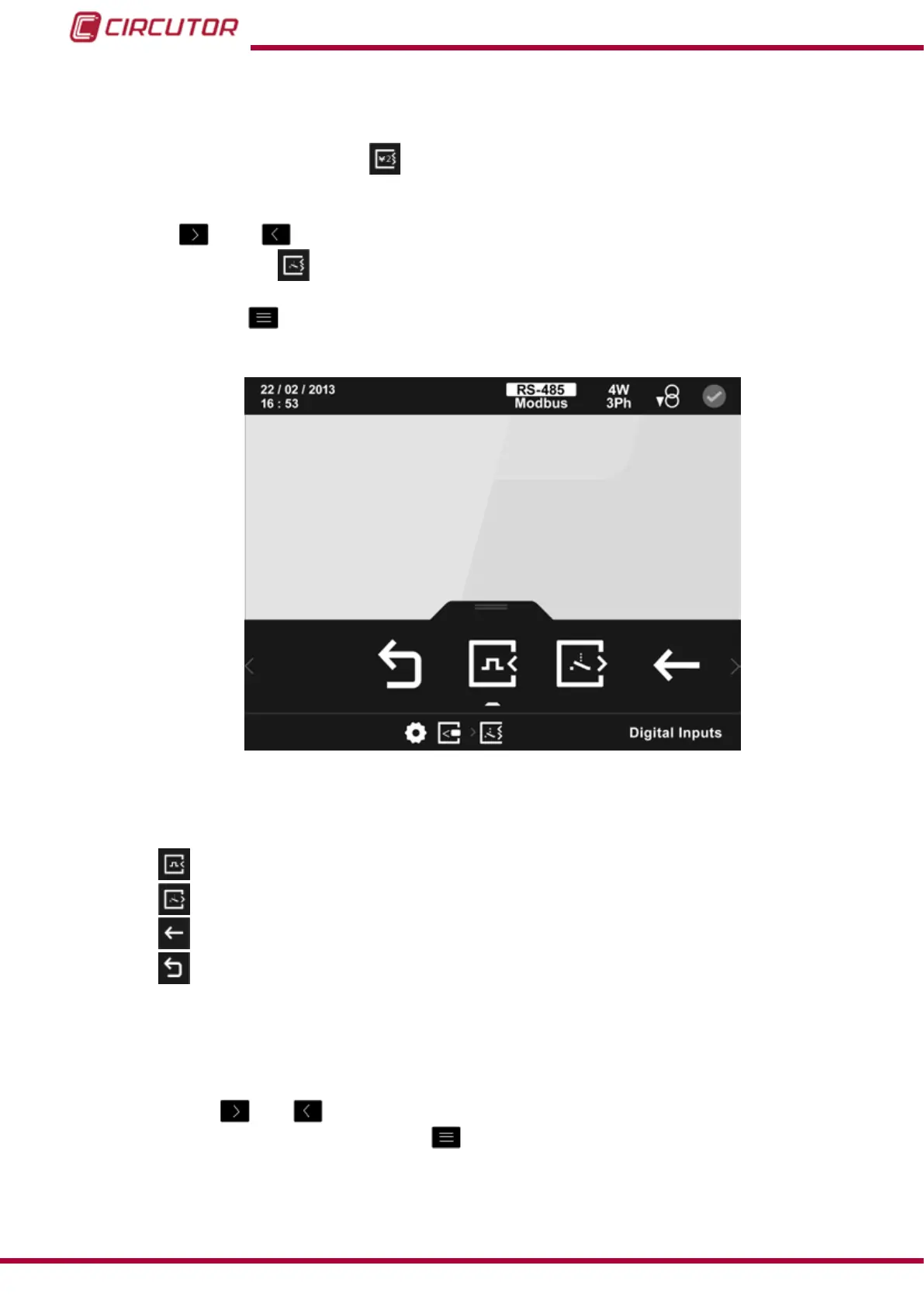

Figure 156: Main conguration screen of relay digital inputs/outputs.
The following options appear in the lower area:
Digital inputs
(1)
, to select the conguration of the digital inputs.
Digital outputs
(1)
, to select the conguration of the relay digital outputs.
Back, returns to the home screen of the expansion modules menu, Figure 155.
Main Menu, back to the main menu, Figure 25.
(1)
If in the unit there is more than one module of the same type connected, a number will
appear in the icon to differentiate them; the module with the lowest number has the lowest
serial number.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
216
CVM-B100 - CVM-B150
Instruction Manual
