Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the Transistor digital
Inputs/Outputs icon
.
Press the button
to open the main conguration screen of the transistor digital Inputs/
Ouputs module, Figure 165.

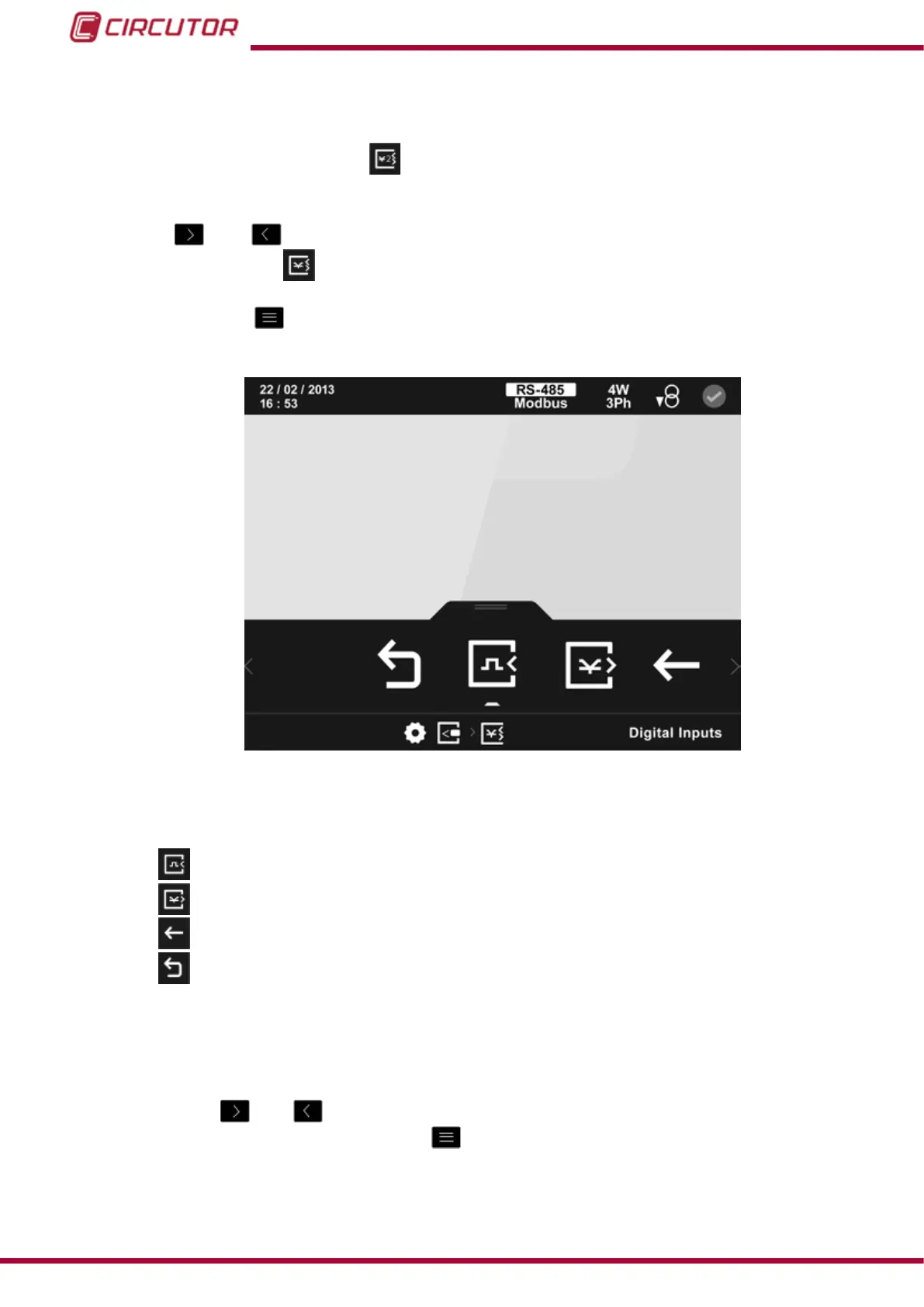

Figure 165: Main conguration screen of transistor digital inputs/outputs.
The following options appear in the lower area:
Digital inputs
(1)
, to select the conguration of the digital inputs.
Digital outputs
(1)
, to select the conguration of the transistor digital outputs.
Back, returns to the home screen of the expansion modules menu, Figure 164
Main Menu, back to the main menu, Figure 25.
(1)
If in the unit there is more than one module of the same type connected, a number will
appear in the icon to differentiate them; the module with the lowest number has the lowest
serial number.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
230
CVM-B100 - CVM-B150
Instruction Manual
