7.3.3.1.- Digital inputs.
The conguration of the digital inputs is the same as the conguration of the digital inputs in
the relay digital inputs/outputs module, see
“7.2.3.1.- Digital inputs.”
7.3.3.2.- Transistor digital outputs.
Select the output to congure on the main conguration screen for transistor digital outputs,
Figure 166.

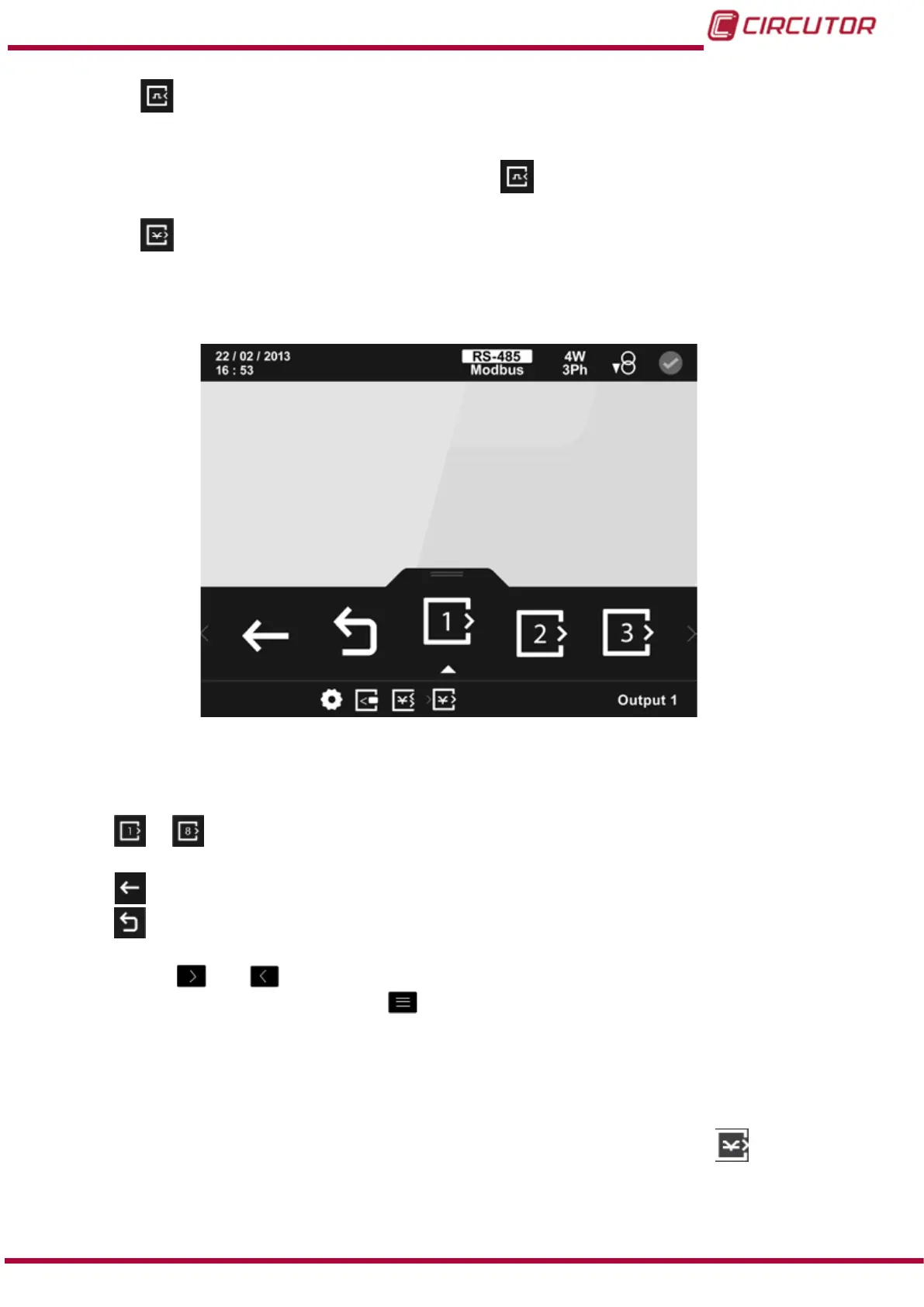

Figure 166: Main conguration screen of transistor digital outputs.
The following options appear in the lower area:
... Digital outputs, 1 to 8, to select the conguration of each of the 8 transistor
digital outputs.
Back, returns to the main screen for transistor digital inputs/outputs, Figure 165.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
The conguration of the transistor digital outputs in the expansion modules is the same as the
conguration of the transistor digital outputs integrated in the unit, see
“5.6.16.- Transistor
digital outputs.”
231
Instruction Manual
CVM-B100 - CVM-B150
