Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the analogue Inputs/
Outputs icon
.
Press the button
to open the main conguration screen of the module of analogue digital
inputs/outputs,
Figure 173.

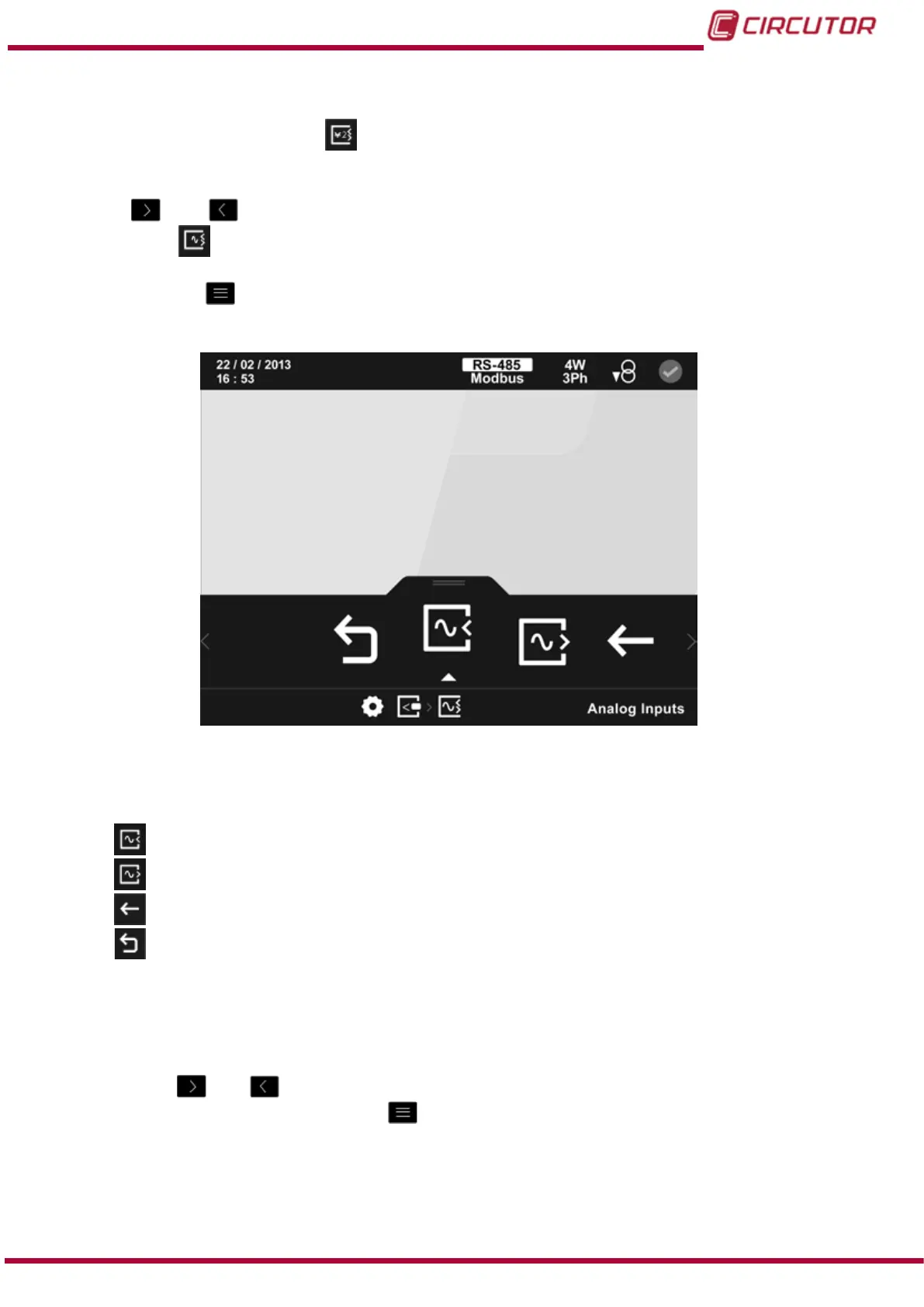

Figure 173: Main conguration screen for analogue inputs/outputs.
The following options appear in the lower area:
Analogue inputs
(1)
, to select the conguration of analogue inputs.
Analogue outputs
(1)
, to select the conguration of analogue outputs.
Back, returns to the home screen of the expansion modules menu, Figure 172.
Main Menu, back to the main menu, Figure 25.
(1)
If in the unit there is more than one module of the same type connected, a number will
appear in the icon to differentiate them; the module with the lowest number has the lowest
serial number.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
247
Instruction Manual
CVM-B100 - CVM-B150
