7.4.3.1.- Analogue inputs.

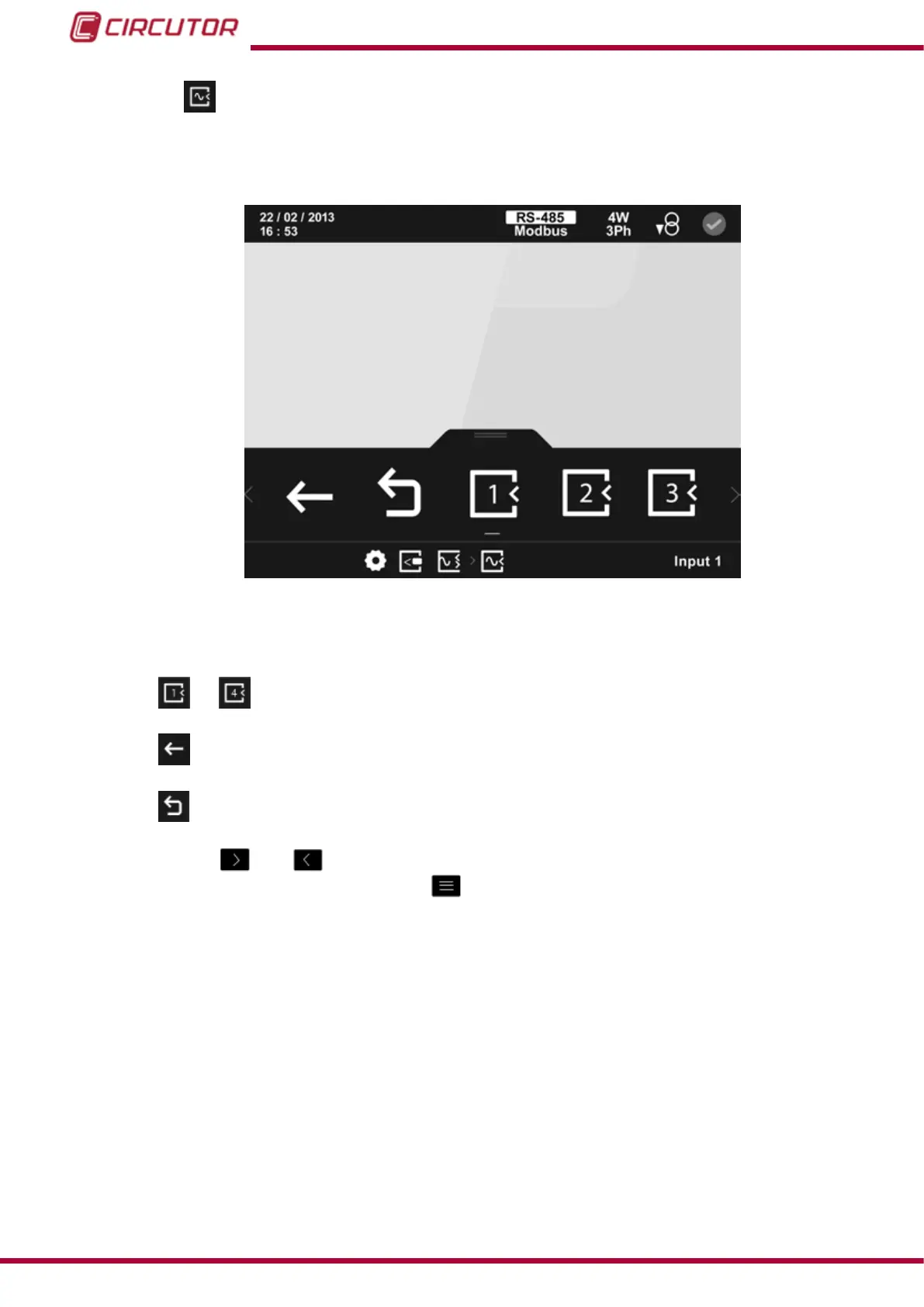

Select the input to congure on the main conguration screen for the analogue inputs,
Figure 174.
Figure 174: Main conguration screen for analogue inputs.
The following options appear in the lower area:
... Analogue inputs from 1 to 4, to select the conguration of each of the 4
analogue inputs.
Back, returns to the main conguration screen for analogue inputs/outputs,
Figure 173.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
When selecting the input to congure, Figure 175, the conguration parameters are:
 The analogue input scale.
 The zero.
 The full scale.
 The decimal position.
 The analogue input name.
 The units.
248
CVM-B100 - CVM-B150
Instruction Manual
