All the possible programming parameters for the unit appear in the lower area. To congure the
expansion modules you need to, using the keys
and , browse the various parameters
until nding the expansion modules icon, .
To access the selected parameter, press the key
.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.

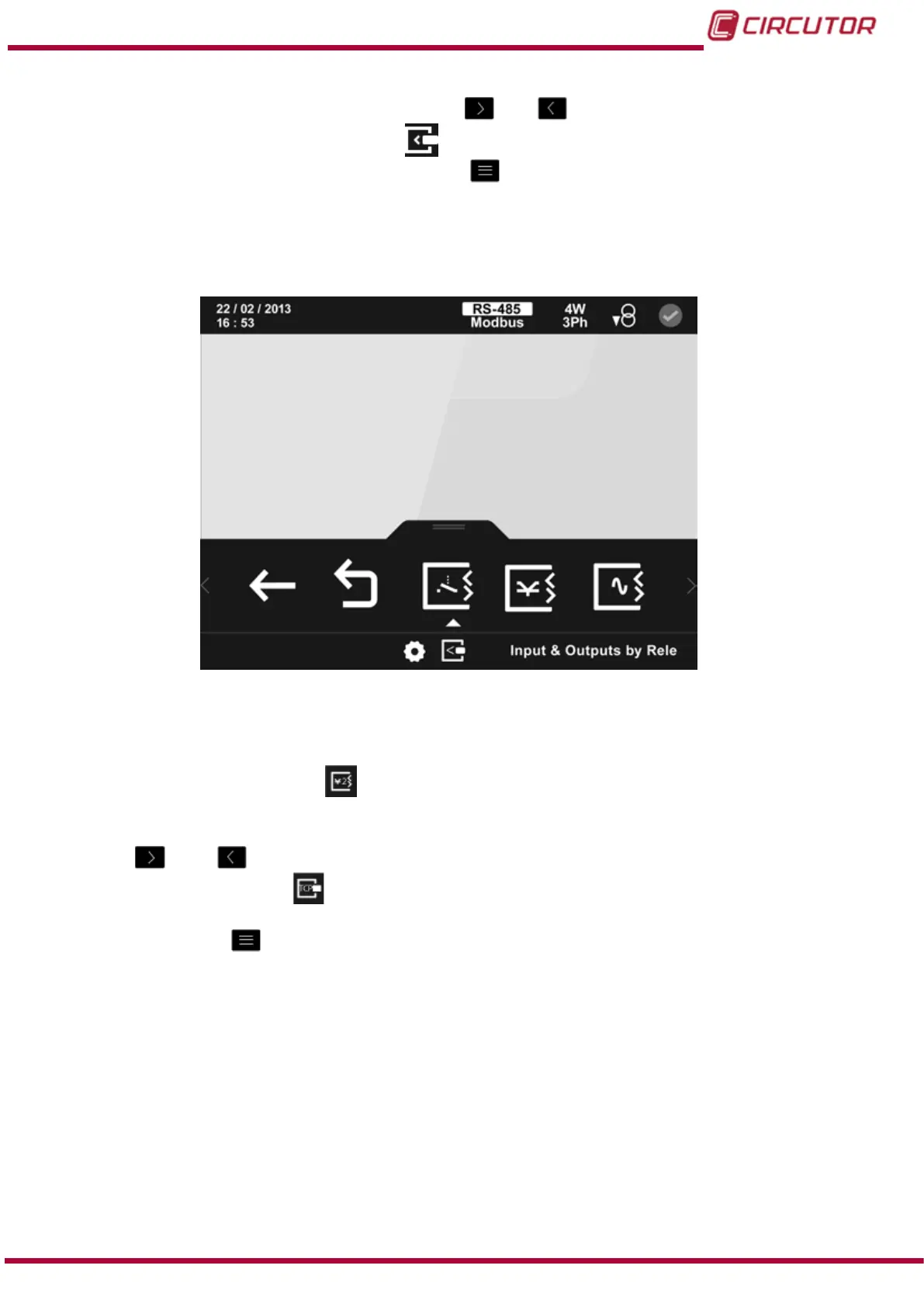

The main screen of the expansion modules is shown in Figure 182.
Figure 182: Main screen of expansion modules.
Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the Modbus TCP
(Bridge) communications
icon.
Press the button
to open the main configuration screen of the Modbus TCP
communications module, Figure 183.
