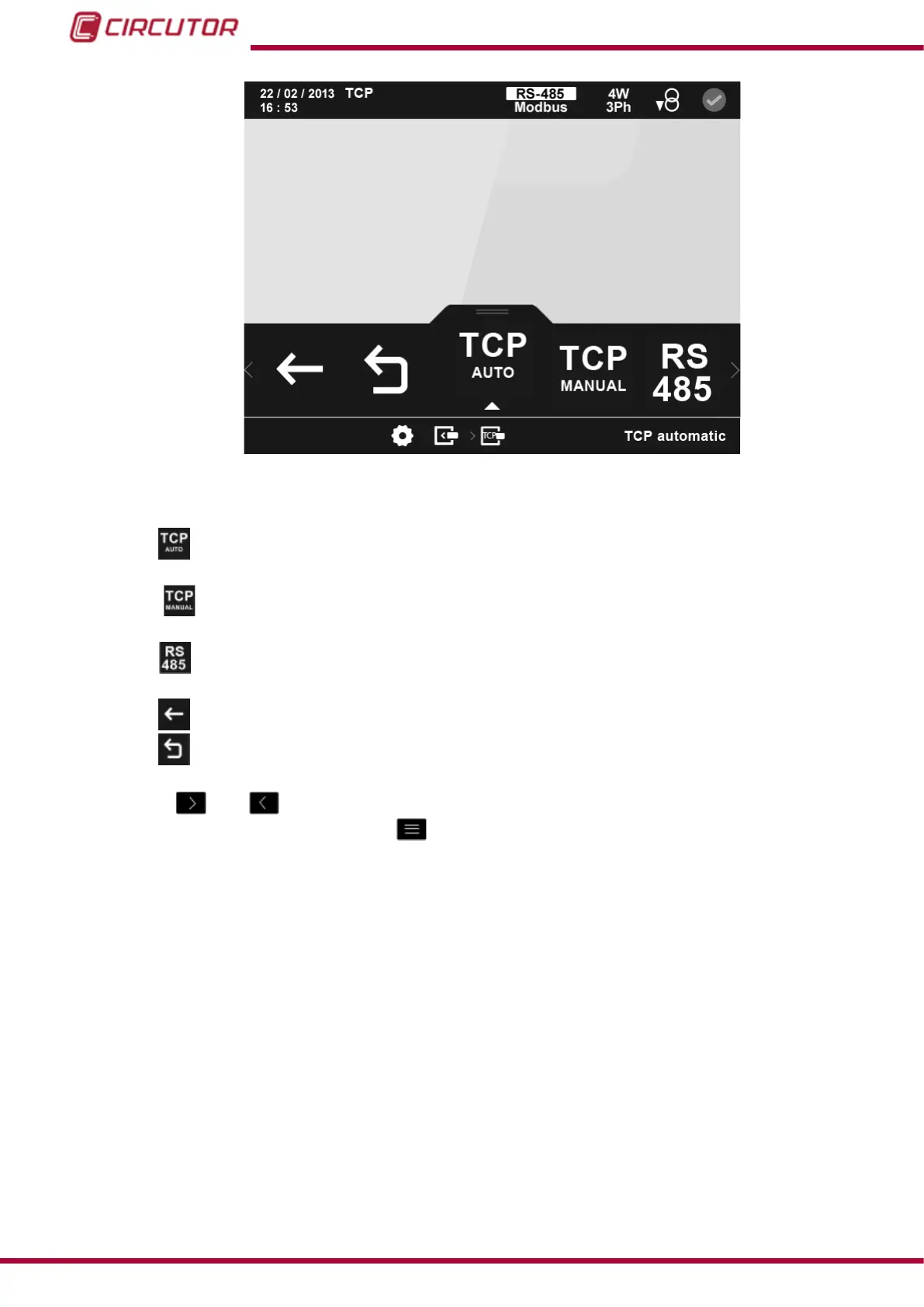

Figure 183: Main conguration screen of the Modbus TCP communications module.
The following options appear in the lower area:
Conguration of DHCP activation/deactivation.
(
“7.5.4.1.- Conguration of DHCP activation/deactivation”)
Conguration of the TCP parameters.
(“7.5.4.2.- Conguration of the TCP parameters manually.”)
Conguration of the RS-485 gateway parameters.
(“7.5.4.3.- Conguration of the RS-485 gateway parameters”)
Back, returns to the home screen of the expansion modules menu, Figure 182.
Main Menu, returns to the main menu, Figure 25.
Use the
and buttons to select the different options.
To conrm the selection, press the
button.
If no button is pressed for 5 minutes, the display screen changes automatically to the default
screen, which displays the voltage measurement of 4 parameters.
262
CVM-B100 - CVM-B150
Instruction Manual
