7.5.4.3.- Conguration of the RS-485 gateway parameters
The conguration parameters of the RS-485 gateway are,
Figure 186:
 The transmission speed, Baud rate.
 The parity.
 The number of stop bits.

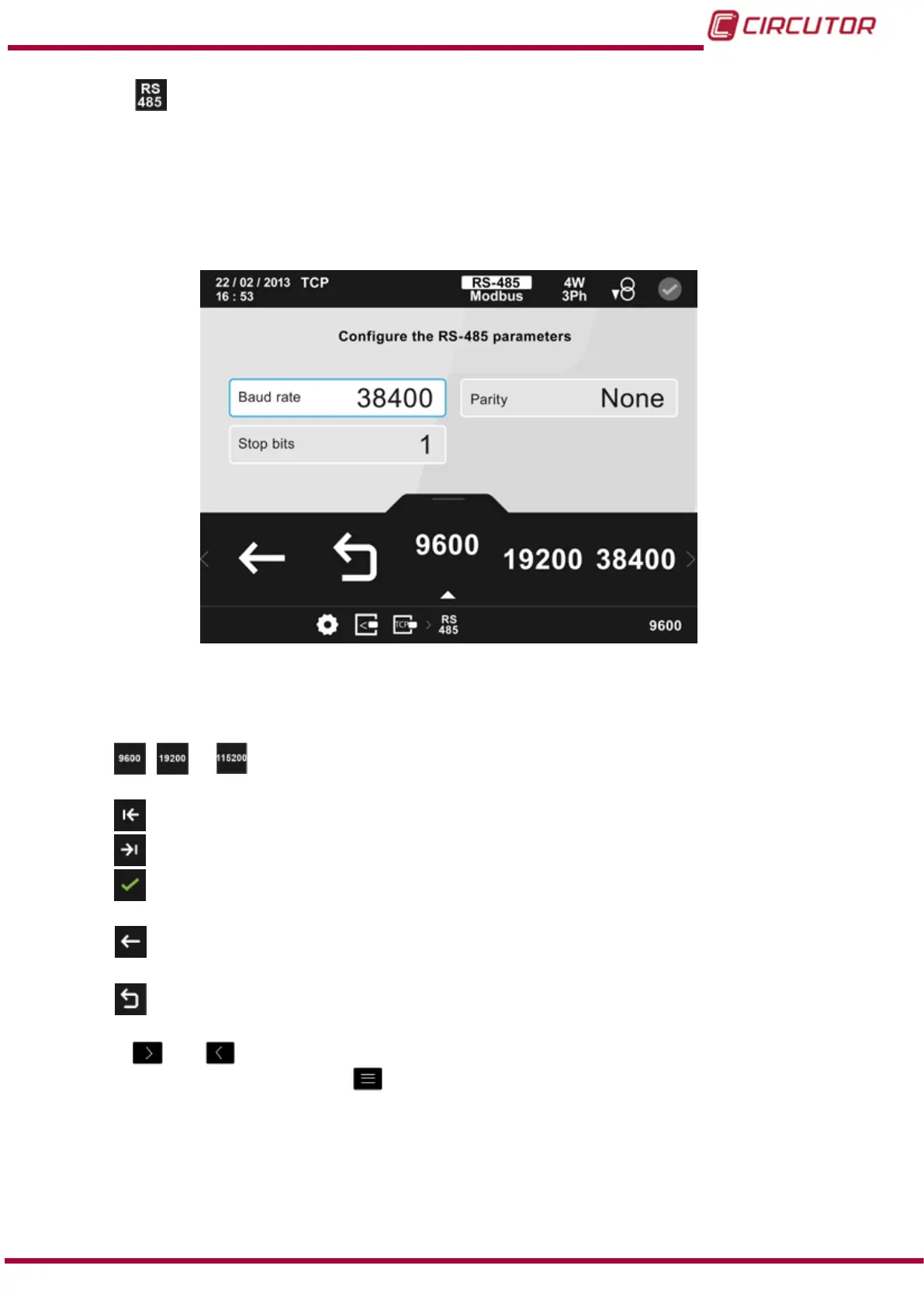

Figure 186: Conguration screen of the Modbus TCP (Bridge) module (RS-485 Gateway)
● When programming the transmission speed, Baud rate:
, ... Possible transmission speeds: 9600, 19200, 38400, 57600, 76800 or
115200.
Previous, selects the previous parameter.
Next, selects the next parameter.
Confirm, confirms and saves the values programmed on the screen in the
memory
.
Back, returns to the main conguration screen of the Modbus TCP module,
Figure 183.
Main Menu, returns to the main menu, Figure 25.
Use the
and buttons to select the different options.
To conrm the selection, press the
button.
If no button is pressed for 5 minutes, the display screen changes automatically to the default
screen, which displays the voltage measurement of 4 parameters.
265
Instruction Manual
CVM-B100 - CVM-B150
