7.5.4.2.- Conguration of the TCP parameters manually.
Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This
is indicated by a * next to each value.
The conguration parameters of the TCP communication are, Figure 185:
 IP address.
 Subnet mask.
 Gateway.

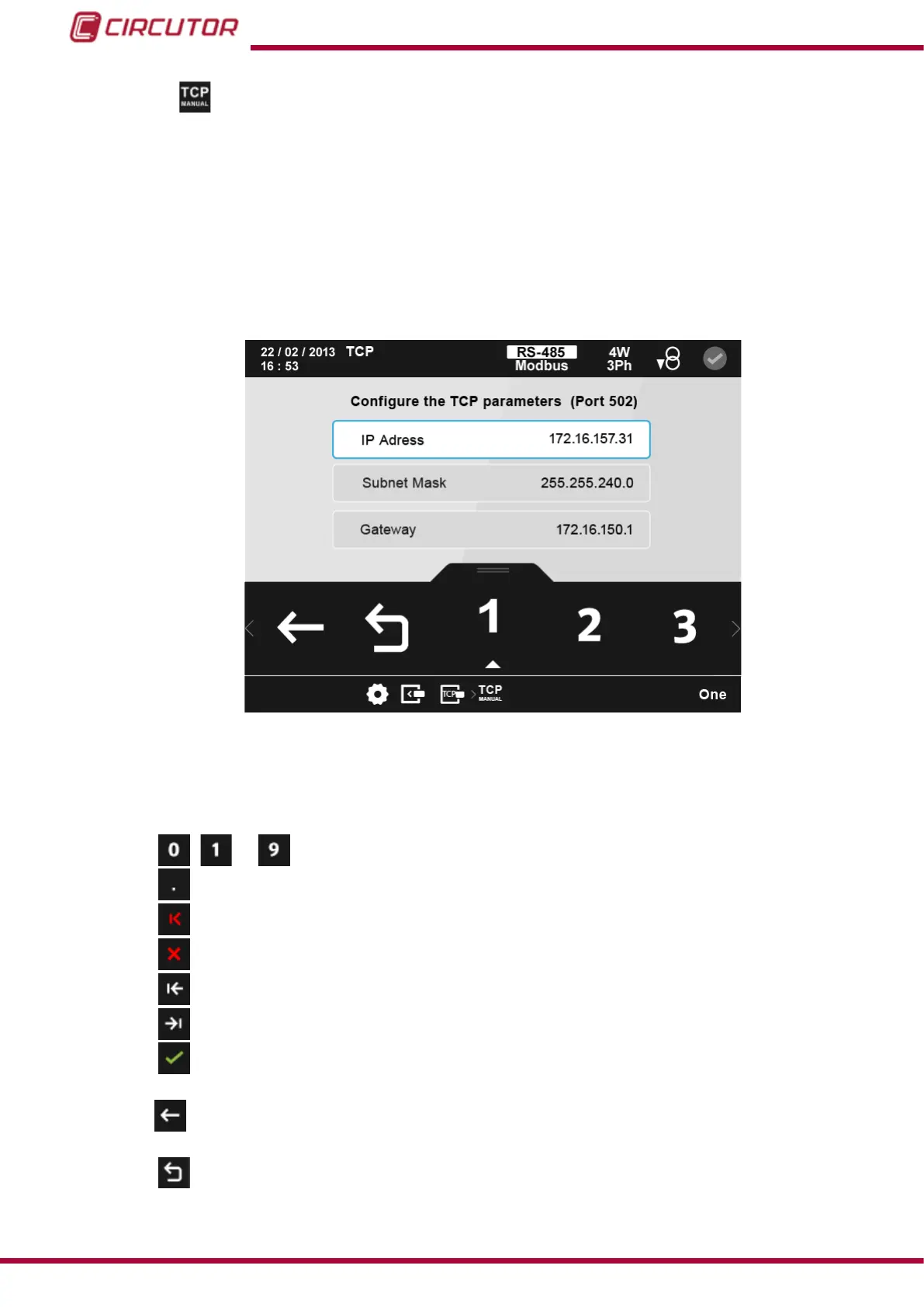

Figure 185: Conguration screen of the Modbus TCP ( Bridge) module (TCP manual)
The parameter selected is indicated in white.
The following options appear in the lower area:
, ... the ten possible digits to program.
Point.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Previous, selects the previous parameter.
Next, selects the next parameter.
Confirm, confirms and saves the values programmed on the screen in the
memory
.
Back, returns to the main conguration screen of the Modbus TCP module,
Figure 183.
Main Menu, returns to the main menu, Figure 25.
264
CVM-B100 - CVM-B150
Instruction Manual
