5.1.1.2.1.1.2.- Selecting an incremental parameter.

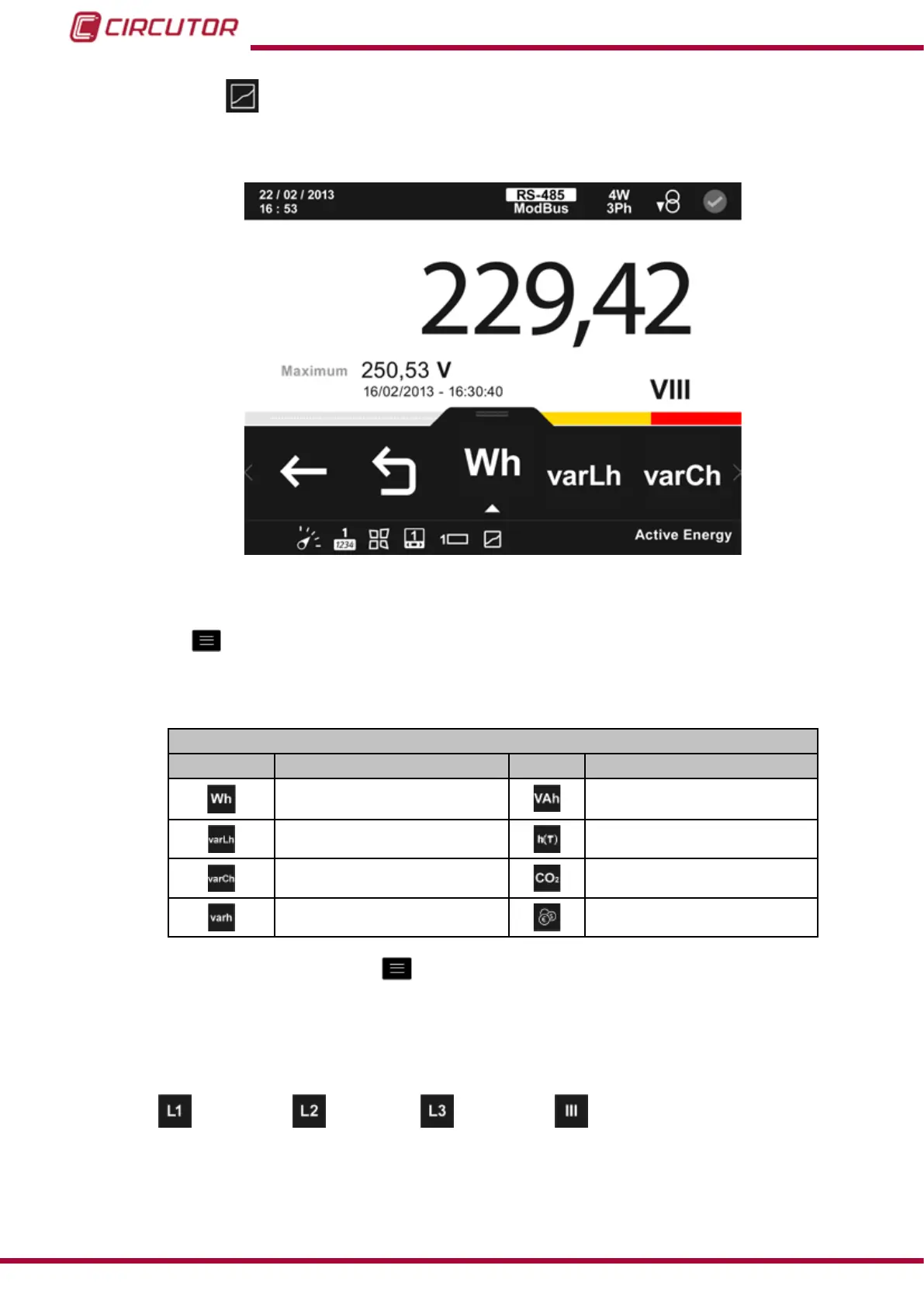

Figure 48 shows the screen for selecting an incremental parameter.
Figure 48: Custom parameters screen, selecting an incremental parameter (displays 1 parameter).
The menu in the lower area disappears after 3 seconds.
Press the
key to display the lower area again.
The menu at the bottom displays all the available instantaneous parameters (Table 12).
Table 12: Incremental parameters that can be selected on the customisation screens.
Customisation screen
Icon Incremental parameter Icon Incremental parameter
Active energy
Apparent energy
Inductive reactive energy
Active tariff hours
Capacitive reactive energy CO
2
Emissions
Total reactive energy Cost
To select a parameter, press the button to open the menu at the bottom for selecting the
phase:
● For the Active energy, Inductive reactive energy, Capacitive reactive energy, Total
reactive energy and Apparent energy parameters:
Phase L1, Phase L2, Phase L3, Three-phase.
60
CVM-B100 - CVM-B150
Instruction Manual
