Cisco Catalyst 3560-X User Manual

1-4
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring EtherChannels and Link-State Tracking
Understanding EtherChannels

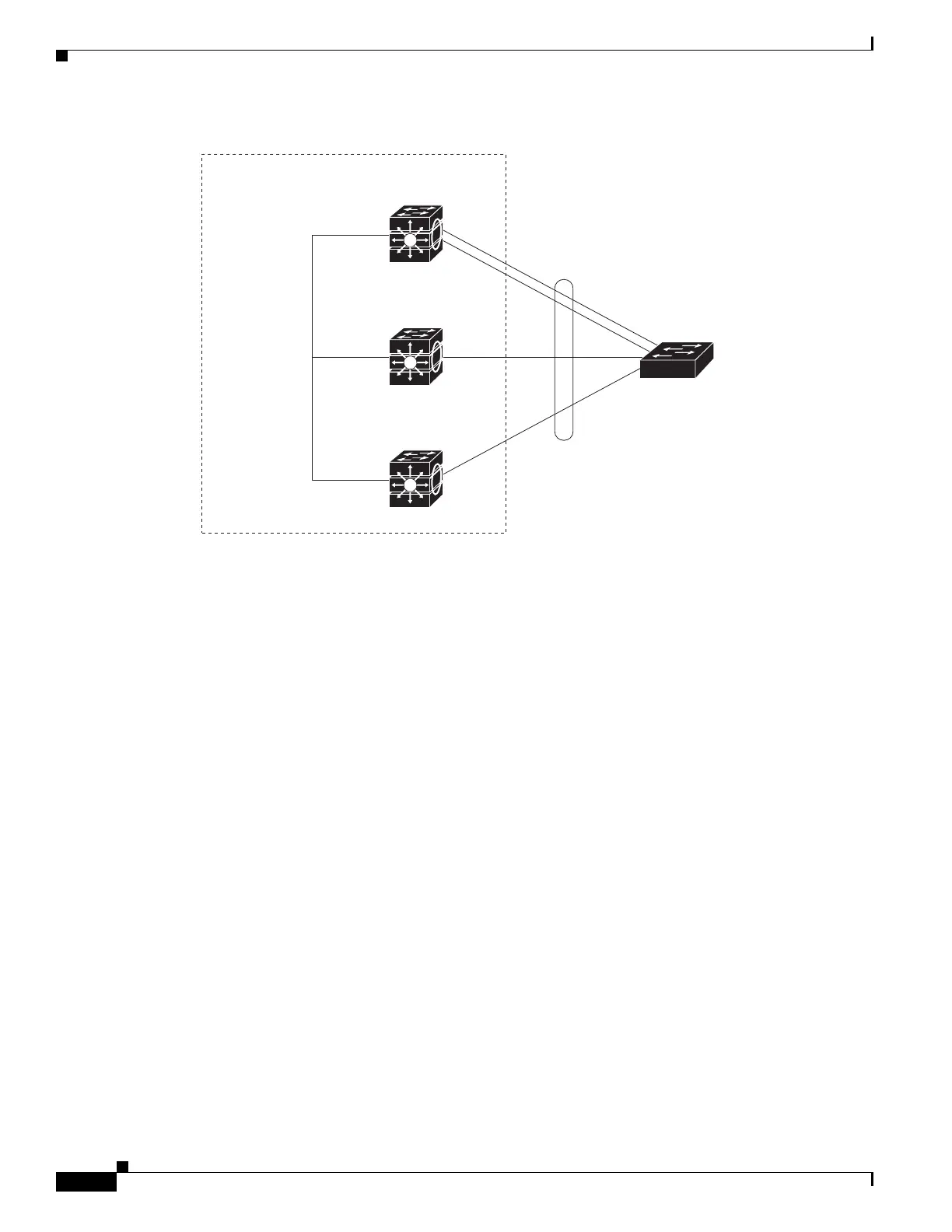

Figure 1-3 Cross-Stack EtherChannel
Port-Channel Interfaces
When you create an EtherChannel, a port-channel logical interface is involved:
• With Layer 2 ports, use the channel-group interface configuration command to dynamically create
the port-channel logical interface.
You also can use the interface port-channel port-channel-number global configuration command
to manually create the port-channel logical interface, but then you must use the channel-group
channel-group-number command to bind the logical interface to a physical port. The
channel-group-number can be the same as the port-channel-number, or you can use a new number.
If you use a new number, the channel-group command dynamically creates a new port channel.
• With Layer 3 ports, you should manually create the logical interface by using the interface
port-channel global configuration command followed by the no switchport interface configuration
command. Then you manually assign an interface to the EtherChannel by using the channel-group
interface configuration command.
For both Layer 2 and Layer 3 ports, the channel-group command binds the physical port and the logical
interface together as shown in Figure 1-4.
Each EtherChannel has a port-channel logical interface numbered from 1 to 48. This port-channel
interface number corresponds to the one specified with the channel-group interface configuration
command.
Switch 1
Switch stack
Switch 2
Channel
group 1
StackWise Plus
port
connections
Switch 3
Switch A
159894

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
