Chapter 1 Configuring IP Multicast Routing
Configuring Advanced DVMRP Interoperability Features

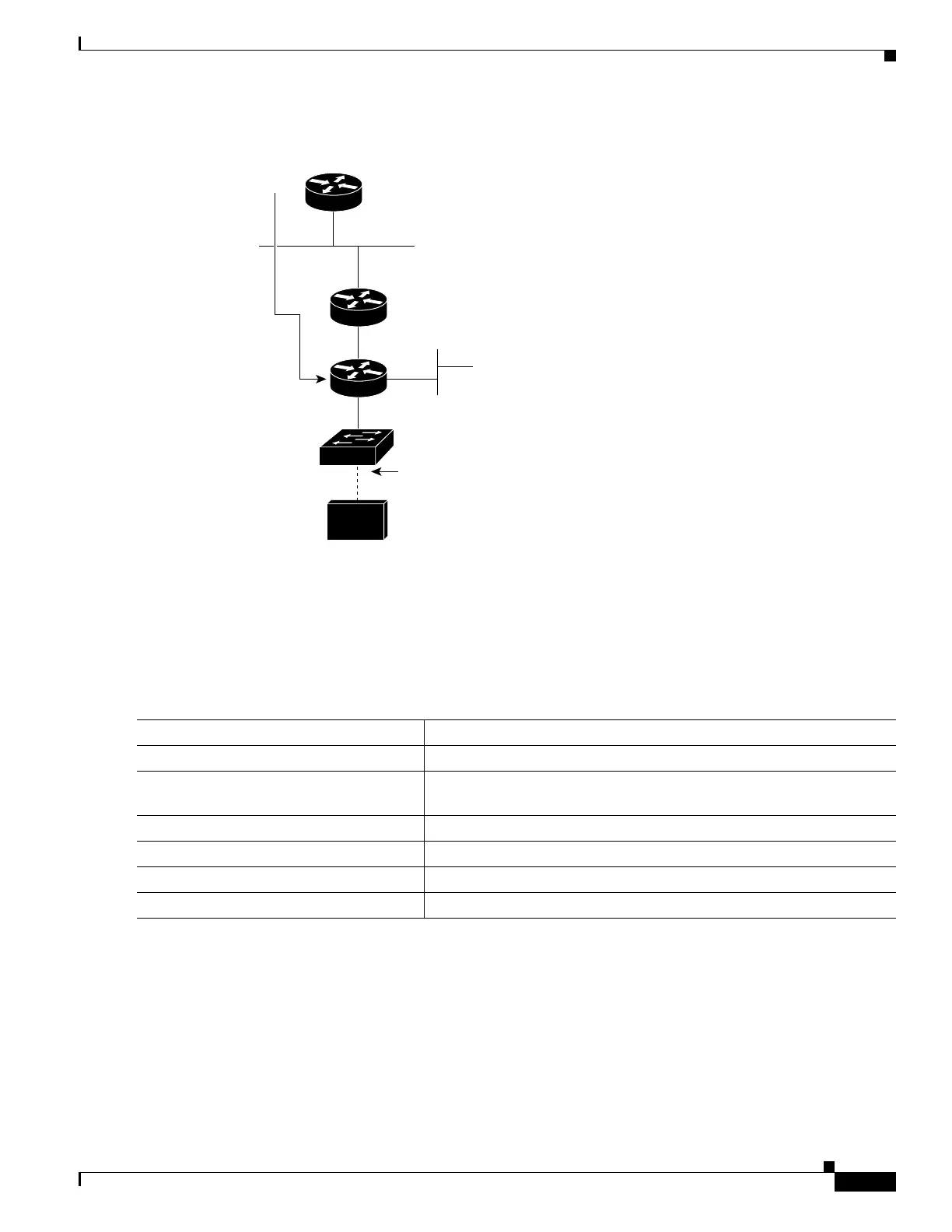

Figure 1-9 Router Rejects Nonpruning DVMRP Neighbor
Note that the ip dvmrp reject-non-pruners interface configuration command prevents peering with
neighbors only. If there are any nonpruning routers multiple hops away (downstream toward potential
receivers) that are not rejected, a nonpruning DVMRP network might still exist.
Beginning in privileged EXEC mode, follow these steps to prevent peering with nonpruning DVMRP
neighbors. This procedure is optional.
To disable this function, use the no ip dvmrp reject-non-pruners interface configuration command.
101245
Router A
Router B
RP
Multicast
traffic gets
to receiver,
not to leaf
DVMRP
device
Source router or RP
Leaf nonpruning DVMRP device
Configure the ip dvmrp
reject-non-pruners command
on this interface.
Receiver
Layer 3 switch
Command Purpose
Step 1
configure terminal Enter global configuration mode.
Step 2
interface interface-id Specify the interface connected to the nonpruning DVMRP neighbor,
and enter interface configuration mode.
Step 3
ip dvmrp reject-non-pruners Prevent peering with nonpruning DVMRP neighbors.
Step 4
end Return to privileged EXEC mode.
Step 5
show running-config Verify your entries.
Step 6
copy running-config startup-config (Optional) Save your entries in the configuration file.

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
