1-36
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring IEEE 802.1x Port-Based Authentication
Understanding IEEE 802.1x Port-Based Authentication

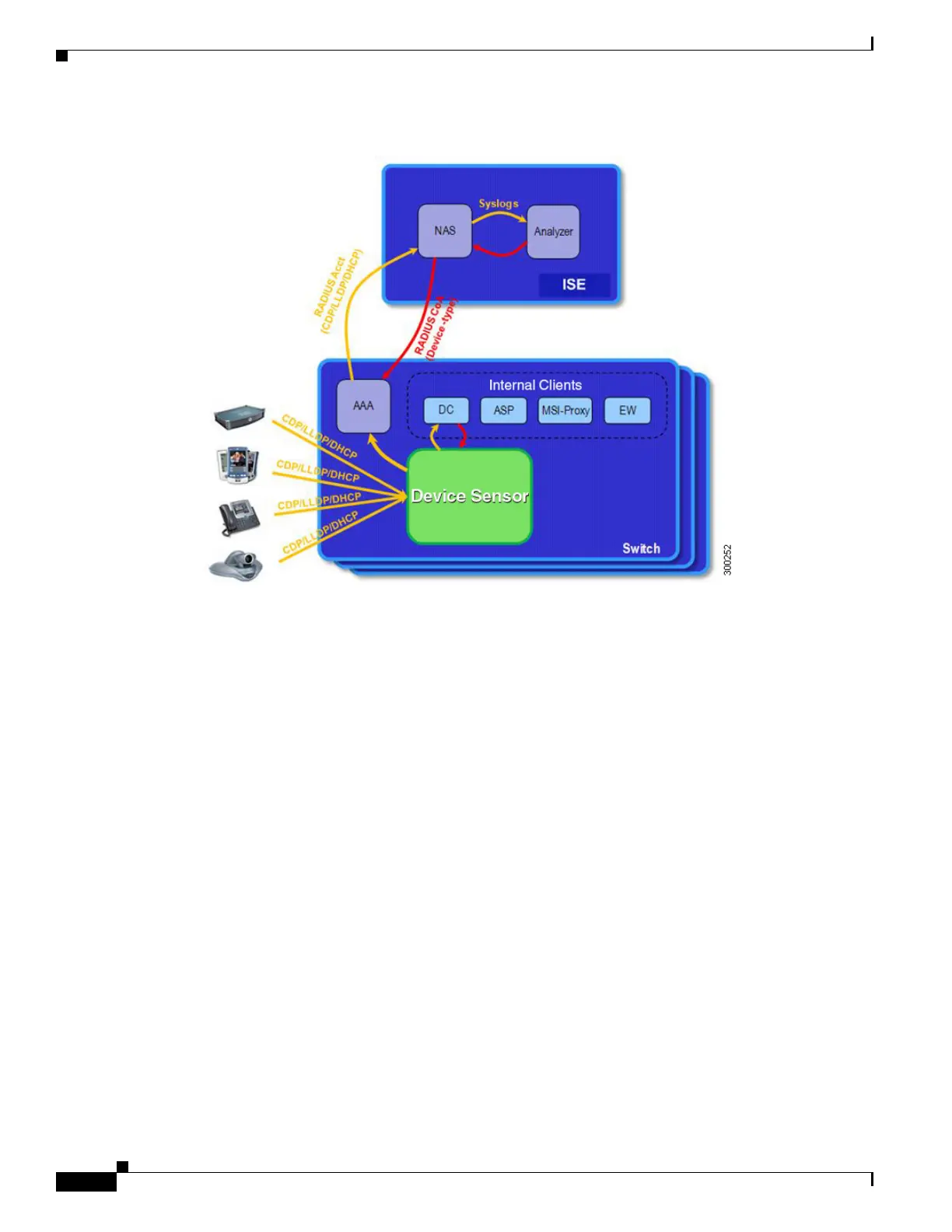

Figure 1-7 Device Sensor and Clients
Client notifications and accounting messages that contain profiling data and other session-related data
are generated and sent to the internal clients and the ISE. By default, client notifications and accounting
events are generated only when an incoming packet includes a Type-Length-Value (TLV) that has not
previously been received within a given access session. You can enable client notifications and
accounting events for TLV changes; that is, when a previously received TLV is received with a different
value.
Device Sensor port security protects the switch from consuming memory and failing during deliberate
or unintentional denial-of-service (DoS)-type attacks.
Guidelines
• Device Sensor limits the maximum number of device monitoring sessions to 32 per port.
• In the case of lack of activity from hosts, the age session limit is 12 hours.
• The length of one TLV must not be more than 1024 and the total length of TLVs (combined length
of TLVs) of all protocols must not be more than 4096.
• Device Sensor profiles devices that are only one hop away.
• Only CDP, LLDP, and DHCP protocols are supported.
• To troubleshoot Device Sensor, use the debug device-sensor and the debug authentication all
privileged EXEC commands.
For more information, see the “Configuring Device Sensor” section on page 1-54.

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
