Chapter 1 Configuring IEEE 802.1Q and Layer 2 Protocol Tunneling
Understanding Layer 2 Protocol Tunneling

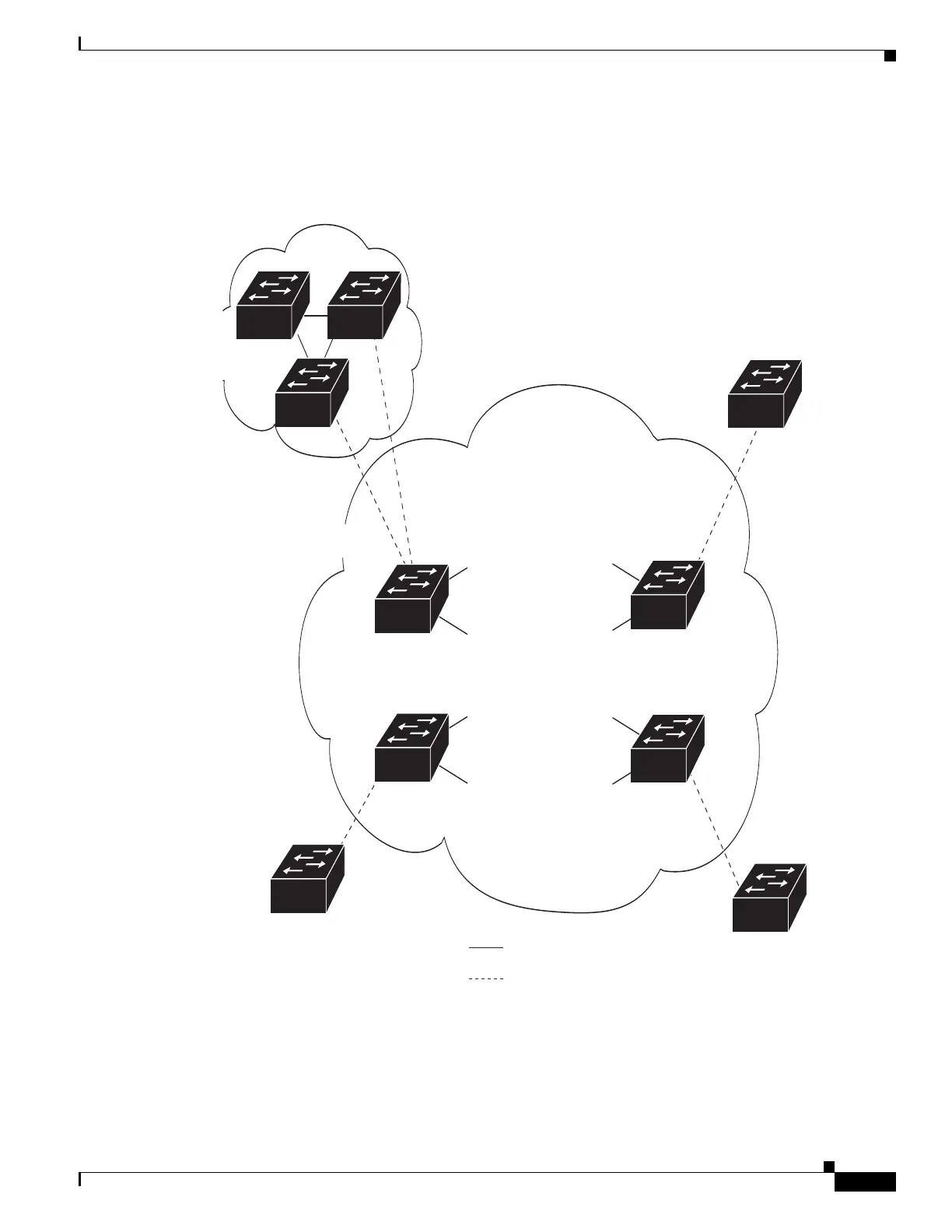

Figure 1-4 Layer 2 Protocol Tunneling
Cu st o m er X Si t e 2
VLANs 1 to 100
Cu st o m er Y Si t e 2
VLANs 1 to 200
Cu st o m er Y Si t e 1
VLANs 1 to 200
Cu st o m er X Si t e 1
VLANs 1 to 100
VLAN 30
Tr u n k
ports
Sw i t c h A
Tr u n k
ports
VLAN 30
VLAN 40
Se r v i c e
provider
101822
Tr u n k
Asymmetric link
VLAN 30
VLAN 40
Tr u n k
ports
Sw i t c h B
Sw i t c h C
Sw i t c h D
Tr u n k
ports

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
