Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Overview
Network Configuration Examples

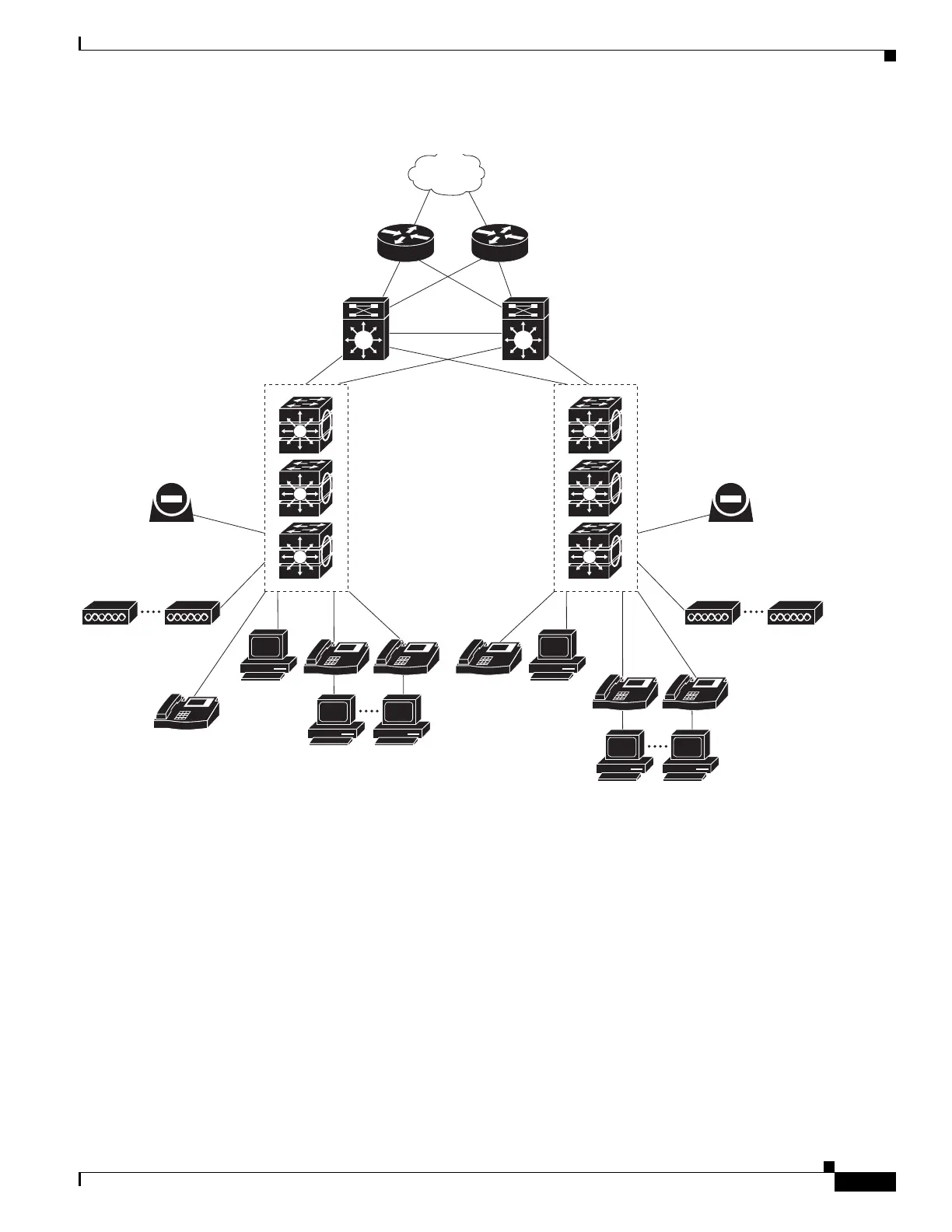

Figure 1-9 Catalyst 3750-X Switch Stacks in Wiring Closets in a Backbone Configuration
Cisco 7x00 routers
Catalyst 6500
multilayer switches
Cisco IP Phones
with workstations
IEEE 802.3af-compliant
powered device
(such as a web cam)
Cisco IP Phones
with workstations
WAN
IP IP
IP
IP IP
IP
200861
Mixed hardware
stack, including the
Catalyst 3750G Integrated
Wireless LAN Controller
IEEE 802.3af-compliant
powered device
(such as a web cam)
Aironet wireless
access points
Aironet wireless
access points
Mixed hardware
stack, including the
Catalyst 3750G Integrated
Wireless LAN Controller

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
