Cisco Catalyst 3750-X User Manual

11-7
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-21521-01
Chapter 11 Configuring IEEE 802.1x Port-Based Authentication
Understanding IEEE 802.1x Port-Based Authentication

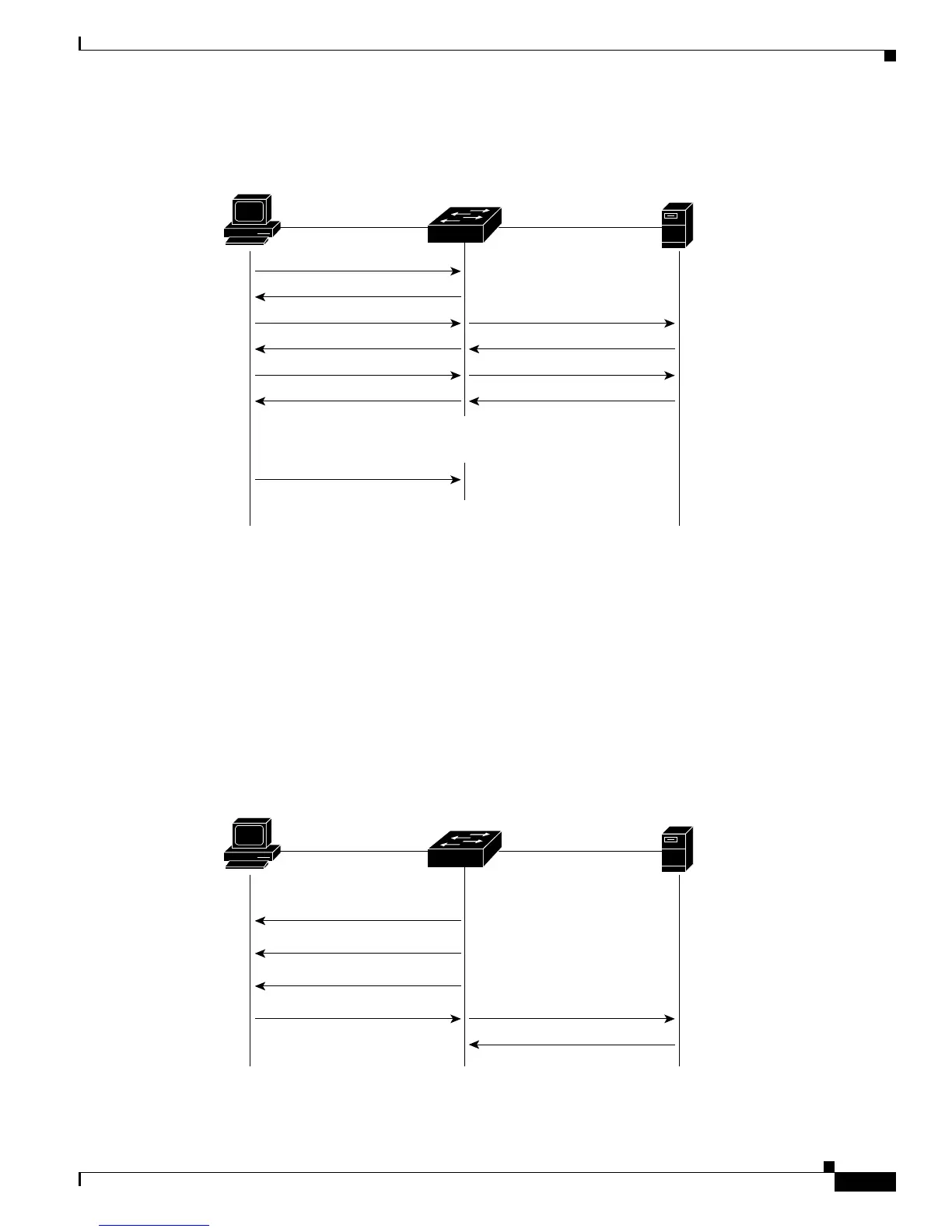

Figure 11-3 Message Exchange
If 802.1x authentication times out while waiting for an EAPOL message exchange and MAC
authentication bypass is enabled, the switch can authorize the client when the switch detects an Ethernet
packet from the client. The switch uses the MAC address of the client as its identity and includes this
information in the RADIUS-access/request frame that is sent to the RADIUS server. After the server
sends the switch the RADIUS-access/accept frame (authorization is successful), the port becomes
authorized. If authorization fails and a guest VLAN is specified, the switch assigns the port to the guest
VLAN. If the switch detects an EAPOL packet while waiting for an Ethernet packet, the switch stops
the MAC authentication bypass process and stops 802.1x authentication.
Figure 11-4 sh
ows the message exchange during MAC authentication bypass.
Figure 11-4 Message Exchange During MAC Authentication Bypass
101228
Client
Port Authorized
Port Unauthorized
EAPOL-Start
EAP-Request/Identity
EAP-Response/Identity
EAP-Request/OTP
EAP-Response/OTP
EAP-Success
RADIUS Access-Request
RADIUS Access-Challenge
RADIUS Access-Request
RADIUS Access-Accept
EAPOL-Logoff
Authentication
server
(RADIUS)
141681
Client
Switch
EAPOL Request/Identity
EAPOL Request/Identity
EAPOL Request/Identity
RADIUS Access/Request
RADIUS Access/Accept
Ethernet packet
Authentication
server
(RADIUS)

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
