Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-21521-01
Chapter 39 Configuring QoS
Configuring Auto-QoS

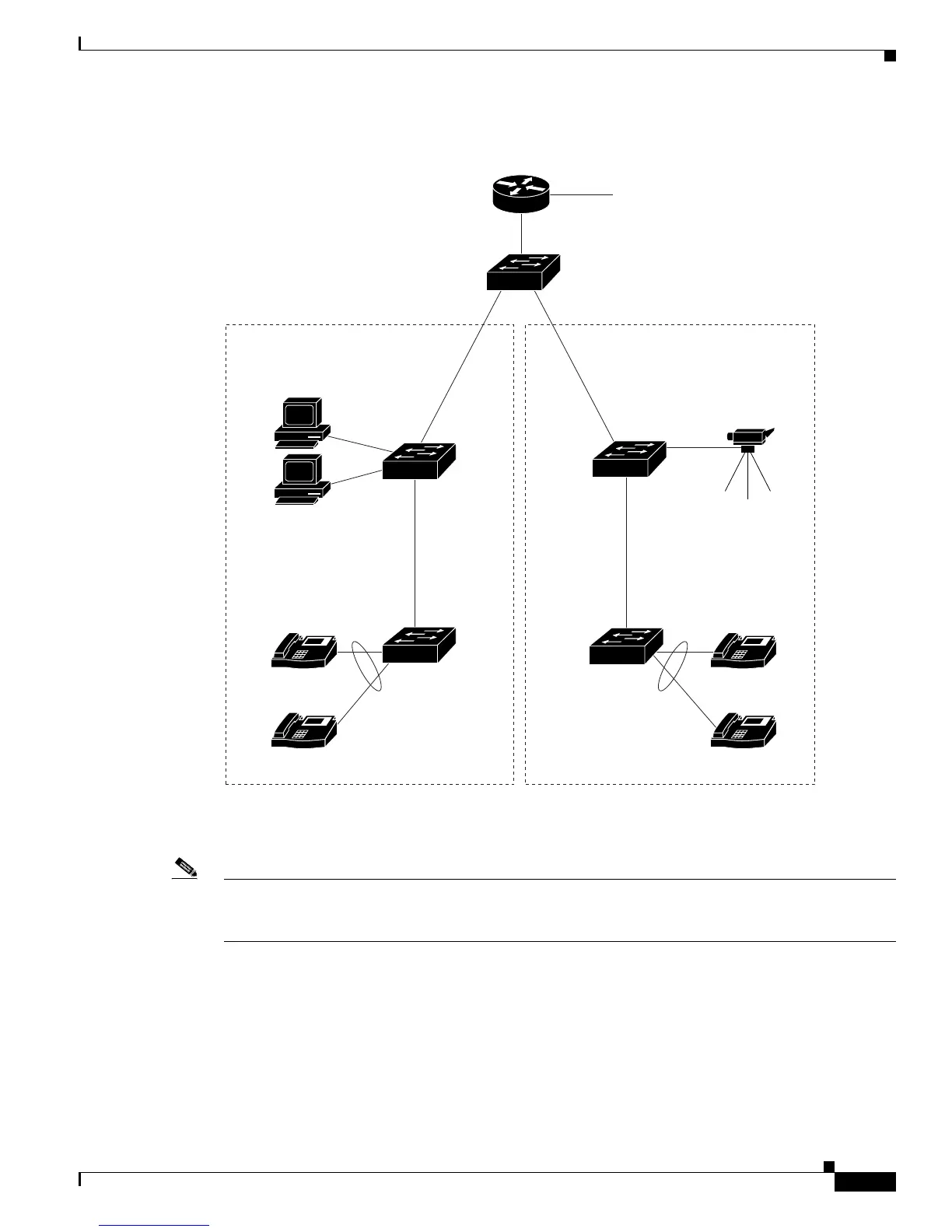

Figure 39-14 Auto-QoS Configuration Example Network
Figure 39-14 shows a network in which the VoIP traffic is prioritized over all other traffic. Auto-QoS is
enabled on the switches in the w
iring closets at the edge of the QoS domain.
Note You should not configure any standard QoS commands before entering the auto-QoS commands. You
can fine-tune the QoS configuration, but we recommend that you do so only after the auto-QoS
configuration is completed.
101234
Cisco router
To Internet
Trunk
link
Trunk
link
Cisco IP phones
End stations
Cisco IP phones
Video server
172.20.10.16
IP
IP
IP
IP
Identify this interface
as connected to a
trusted switch or router
Identify this interface
as connected to a
trusted switch or router
Identify these
interfaces as
connected to
IP phones
Identify these
interfaces as
connected to
IP phones

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
