The NC pro gra m w i n dow
Below the graphics window is the text display for the NC program.
In the window you can scroll with the mouse or the cursor keys to look at the whole
program or to go to a certain line.
If you click on a certain line, the button "Start from here" will activate and you can continue a
program from this point.
The co n trol el ements
Below, the other controls are briefly explained. If one of the icons should later be unclear, you can
leave a short help text ("Tooltip") by leaving the mouse pointer over the button.

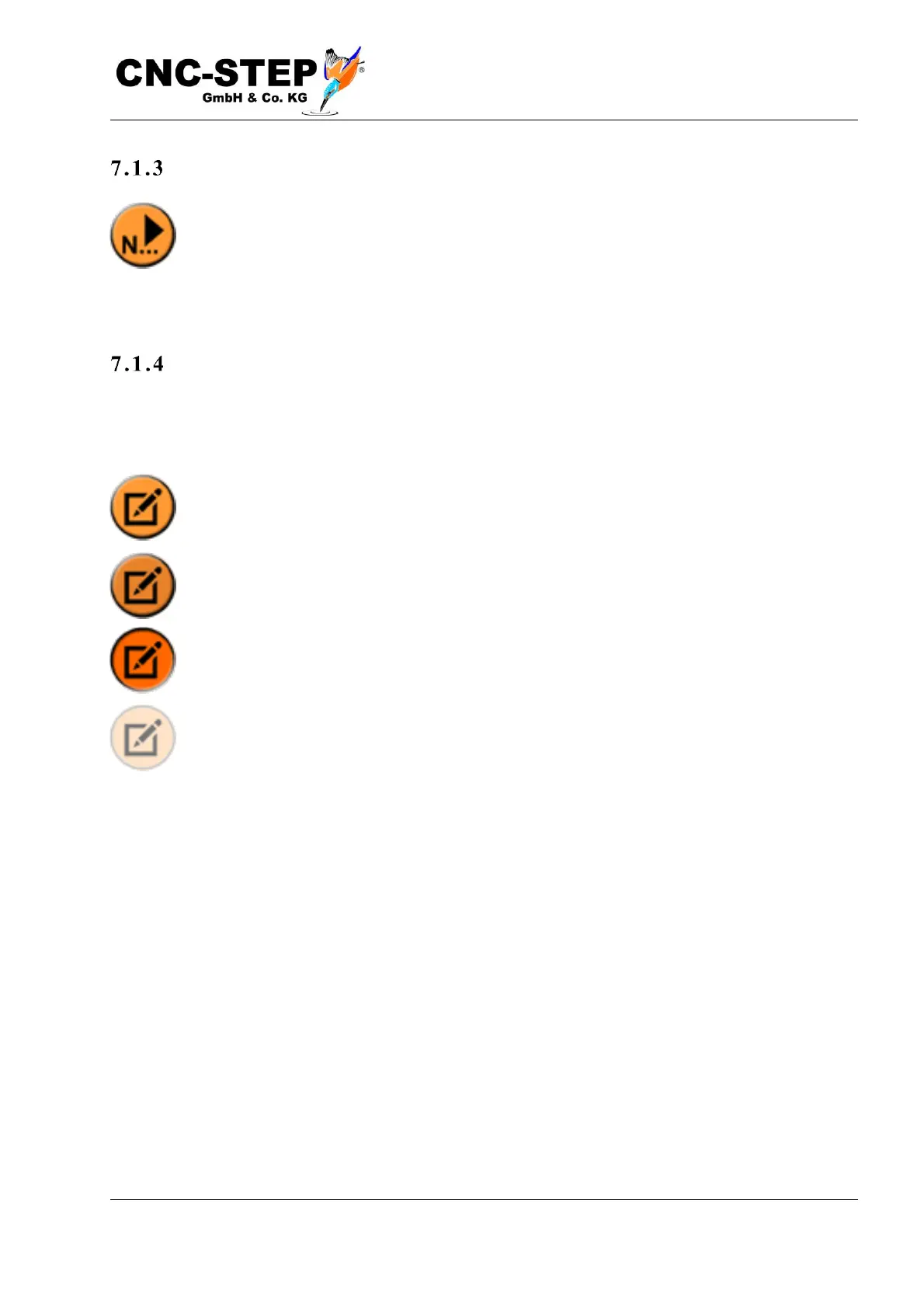

First the display of the symbols is explained by the "Edit" -button:
Normal, active button that can be pressed.
Normal, active button that can be pressed, which has the current focus.
Currently pressed button.
Disabled button that cannot be pressed. Cause can be missing user rights, or the function
is currently not possible.
