124

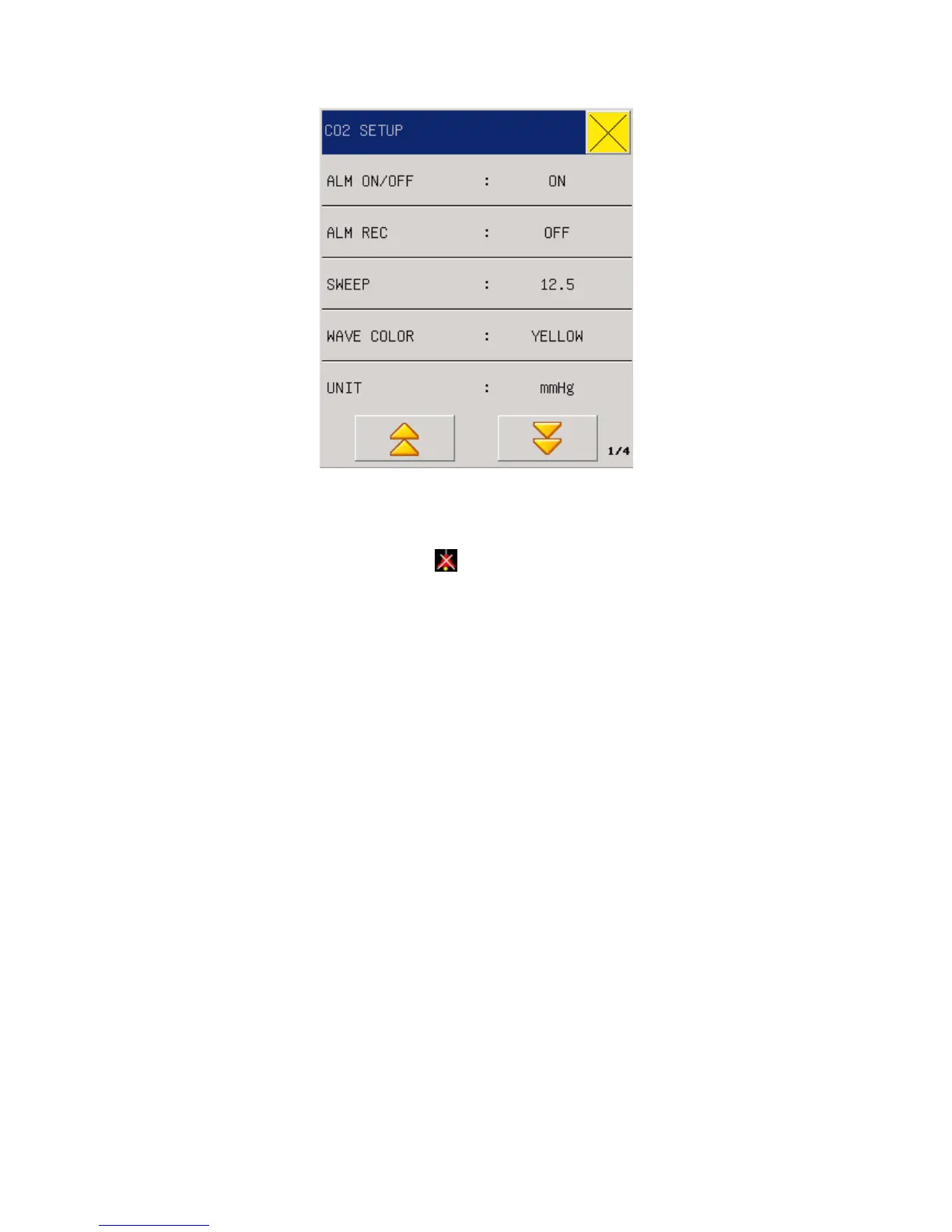

Figure 16-6 CO2 Settings
ALM ON/OFF(Alarm Switch): select “On" to enable CO2 alarms, or select “Off" to
disable CO2 alarms with the icon “
” appearing beside “CO2” in the parameter area on
the screen.
ALM REC(Alarm Record): select “On” to enable the recorder output when there is any
CO2 alarm.
SWEEP(Alarm Speed): 12.5mm/s~25.0mm/s.
WAVE COLOR(Waveform Color): Green, Cyan, Red, Yellow, White, Blue, or Purple
Unit: mmHg/kpa.
CO2 ON(CO2 Switch): On or Off; select "On" to monitor the CO2.
O2 COMPEN(Oxygen Compensation): 5~100.
BALAN GAS(Balance Gas): Indoor Air, Laughing Gas, or Helium.
ALTITUDE: 120~4920 mmHg (adjustable based on the geographical location).
BARO PRE(Atmospheric Pressure): 400~850 mmHg (adjustable based on the
geographical location: either Altitude or Atmospheric Pressure, not both).
INS ALM HI(Upper Limit of INS Alarm): adjust the upper limit of INS alarm; if the
measured INS value exceeds the upper limit, there will be an alarm and prompting.
APNEA ALM(apnea alarm):No ,1s ,2s ,5s ,10s ,15s ,20s ,25s ,30s ,35s ,40s.
CO2 ALM SETUP: Used for to adjust CO2 the upper and lower limits of the range of
the high limit, middle limit and lower limit alarm . When the alarm limit CO2
measurement value is greater than or less than the alarm limit , the instrument alarm and
prompt .
