ECG cables, screen will display the error information of “Sensor disconnected” and
activate voice alarming.
11.3.2 Install ECG leads
Caution
The following table lists the lead names under the European and US standards (leads
are represented in R, L, N, F and C under the European standard and in RA, LA, RL,
LL, and V under the US standard
US standard European standard
Lead name Color Lead name Color
RA White R Red
LA Black L Yellow
LL Red F Green
RL Green N Black
V Brown C White

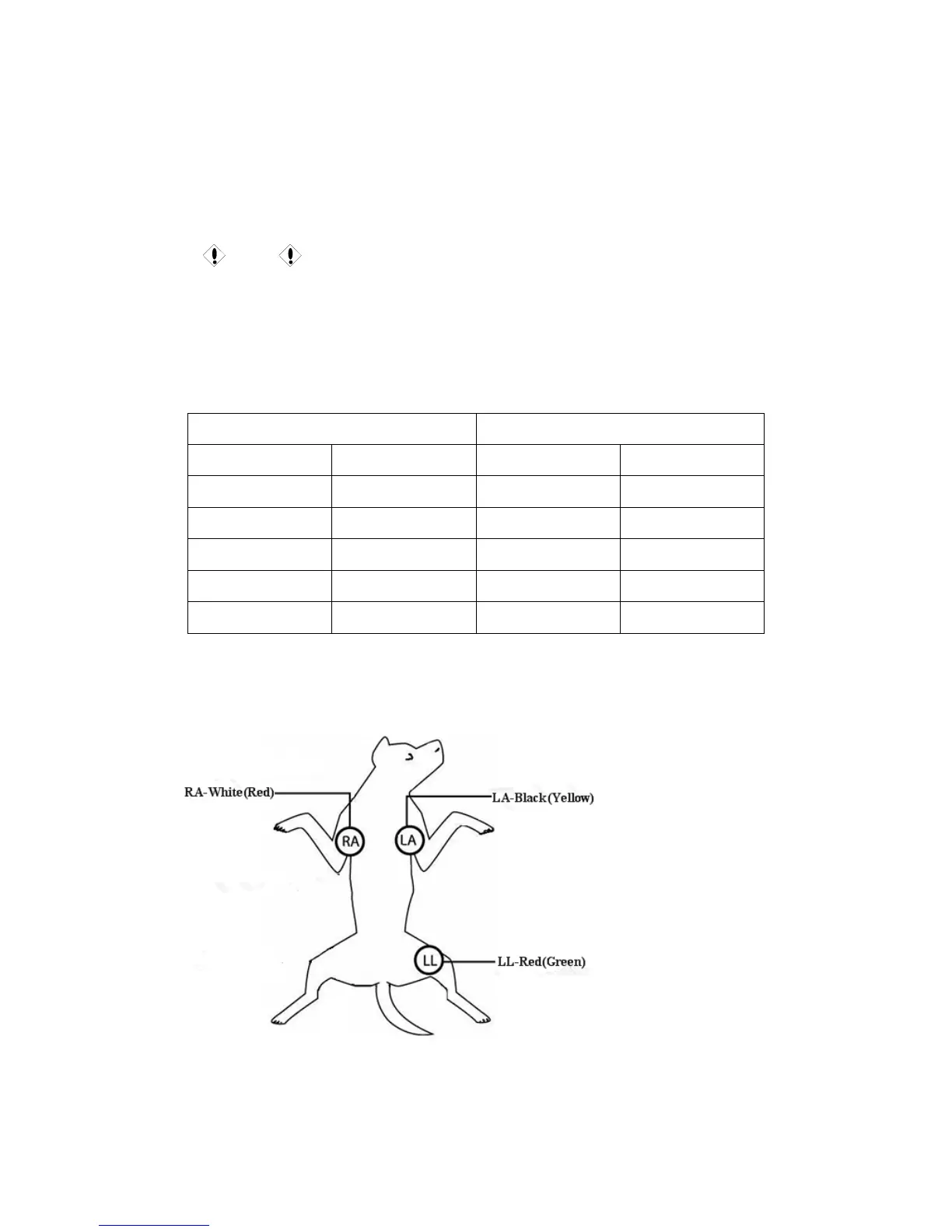

Three-lead ECG electrodes position (Fig 10-1):
Fig 10-1(1) 3-leads monitoring
