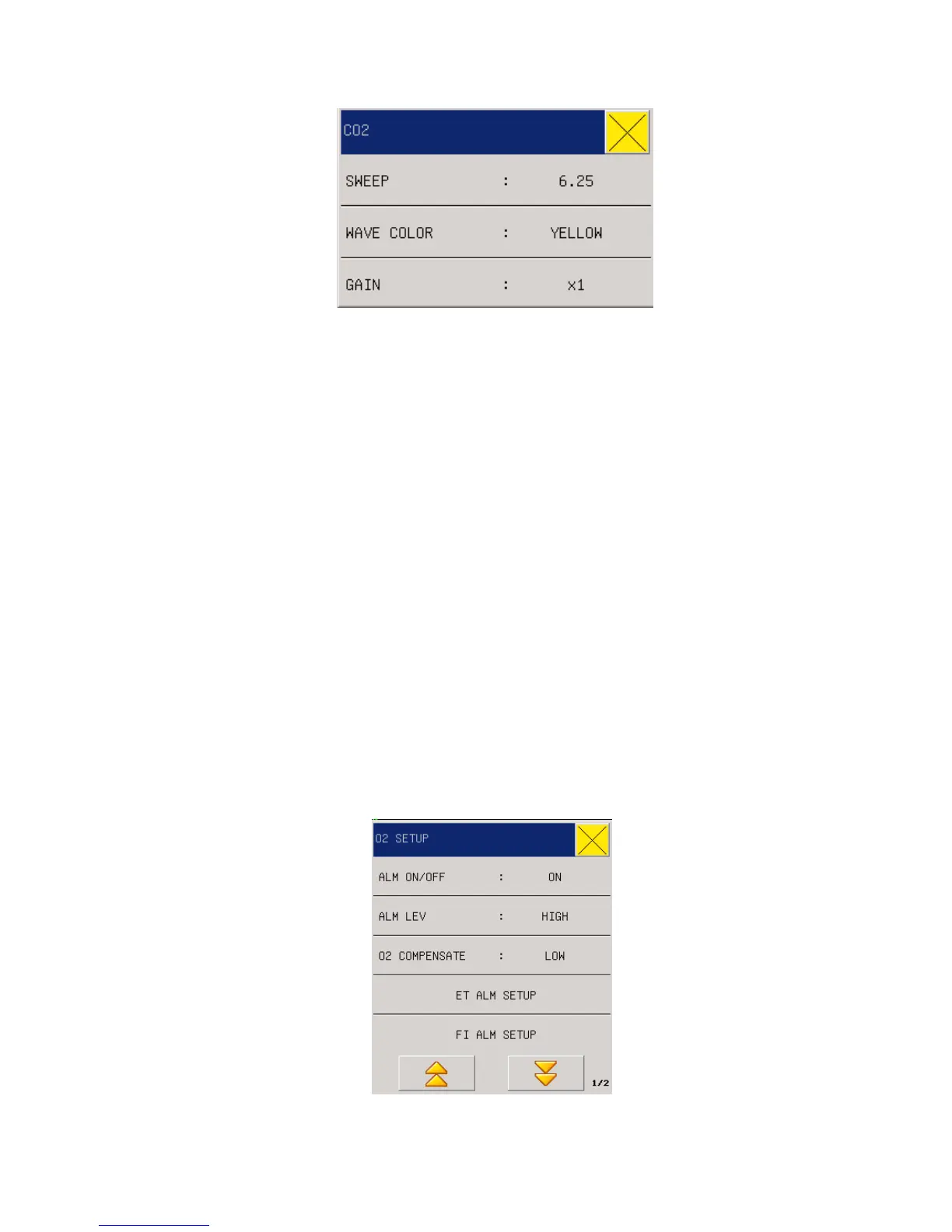

Fig. 17-4 AG CO2 Settings
Waveform Speed: 12.5mm/s or 25.0mm/s.
Waveform Color: Green, Cyan, Red, Yellow, White, Blue, or Purple.
Gain: ×1, ×2, or ×4, to adjust the wave amplitude of the CO2 waveform.
3. CO2 Settings in Measurement Setup
In the AG interface, rotate the shuttle button to move the cursor on the display interface to
“Measurement Setup" in the menu bar or enter “Measurement Setup" in the main menu to select
“AG Setup” and “AG CO2”, and then press the shuttle button to enter the menu “AG CO2”. Refer
to the section “AG CO2 Settings in Parameter Area” for the specific options of the menu “AG
CO2” in “Measurement Setup”.
18.6.2 O2 Settings
1. O2 Settings in Parameter Area
In the AG interface, rotate the shuttle button to move the cursor on the display interface to the O2
hotkey in the parameter area, and then press the shuttle button to enter the menu “O2 Settings”.
Fig. 17-5 O2 Settings
To Next Page
