150
ALM ON/OFF: select “On" to enable O2 alarms, or select “Off" to disable O2 alarms
with the icon “
” appearing beside “O2” in the parameter area on the screen.
ALM LEV: High, Medium, or Low; “High” is most serious.
Oxygen Compensation: HIGH ,MED ,LOW.
ET ALM SETUP :set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
FI ALM SETUP : set high alarm limit ,middle alarm limit ,low alarm limit. if the
measured ET value exceeds the limit, there will be an alarm and prompting
DEFAULT: select “Yes” to enable the default settings to override the original settings.
2. O2 Settings in Waveform Area
In the AG interface, rotate the shuttle button to move the cursor on the display interface to the O2
hotkey in the waveform area, and then press the shuttle button to enter the menu “AG O2” as
below:

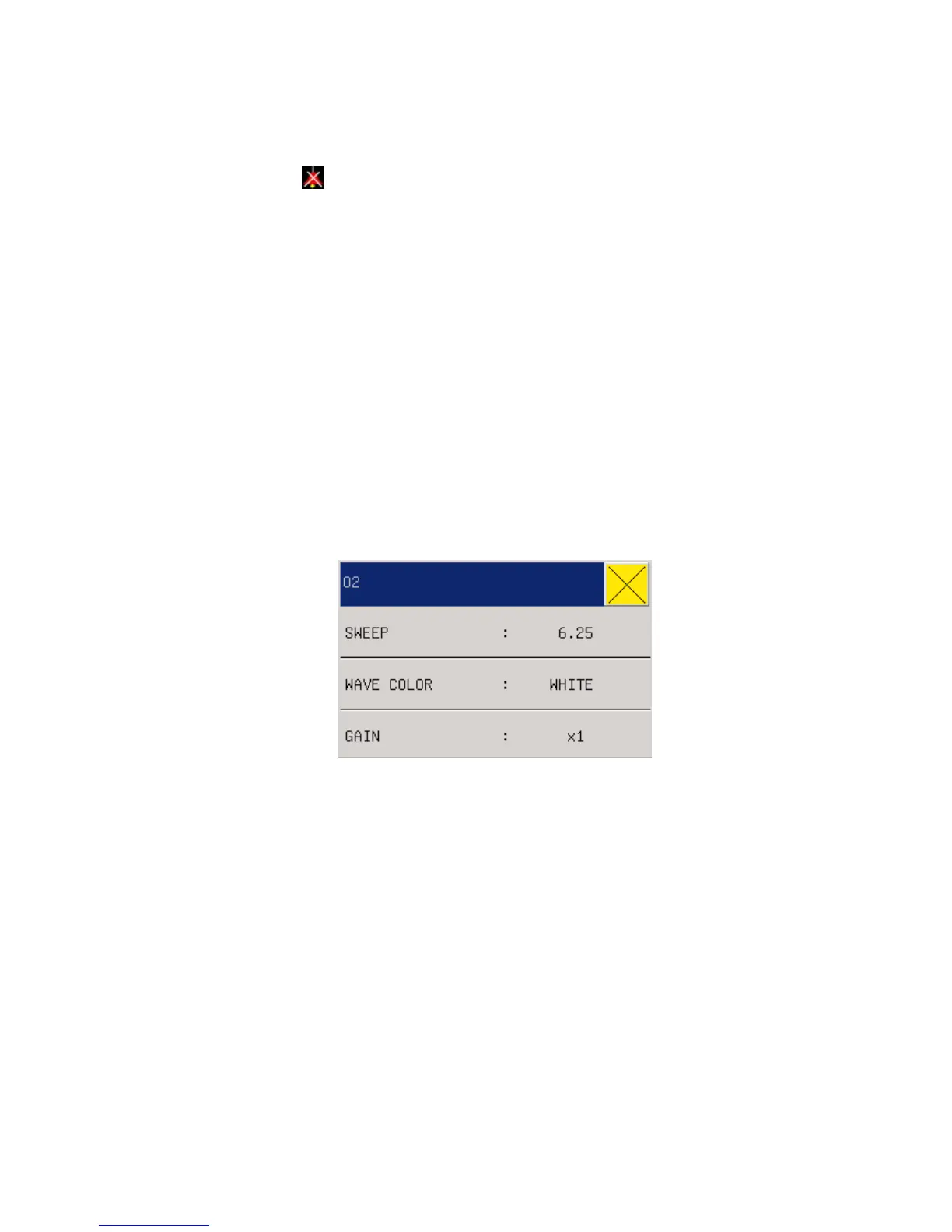

Fig. 17-6 AG O
2 Settings
Waveform Speed: 12.5mm/s or 25.0mm/s.
Waveform Color: Green, Cyan, Red, Yellow, White, Blue, or Purple.
Gain: ×1, ×2, or ×4, to adjust the wave amplitude of the O2 waveform.
3. O2 Settings in Measurement Setup
In the AG interface, rotate the shuttle button to move the cursor on the display interface to
“Measurement Setup" in the menu bar or enter “Measurement Setup" in the main menu to select
“AG Setup” and “AG O2”, and then press the shuttle button to enter the menu “AG O2”. Refer to
the section “O2 Settings in Parameter Area” for the specific options of the menu “AG O2” in
“Measurement Setup”.
