Comen C80 - Ibp<1,2>Setup in the Waveform Area

135
choice range is the measurement range of the current pressure.
• Mean scale: he pressure value represented by the middle scale limit. The
choice range is the measurement range of the current pressure.
Caution
The upper scale limit value should not be lower than the lower limit value.
Caution
The lower scale limit value should not be higher than the upper limit value.
Caution
The lower pressure limit, the upper pressure limit, the reference scale and the waveform
are displayed simultaneously on the screen so that users can observe waveform changes
after the scales are adjusted.
z CH1/CH2 ZERO: the IBP1 and IBP2 module into the socket, the need for invasive
pressure zeroing.
17.4.2 IBP<1,2>setup in the waveform area
Rotate the knob and move the cursor to the IBP hotkey in the waveform area of the screen.

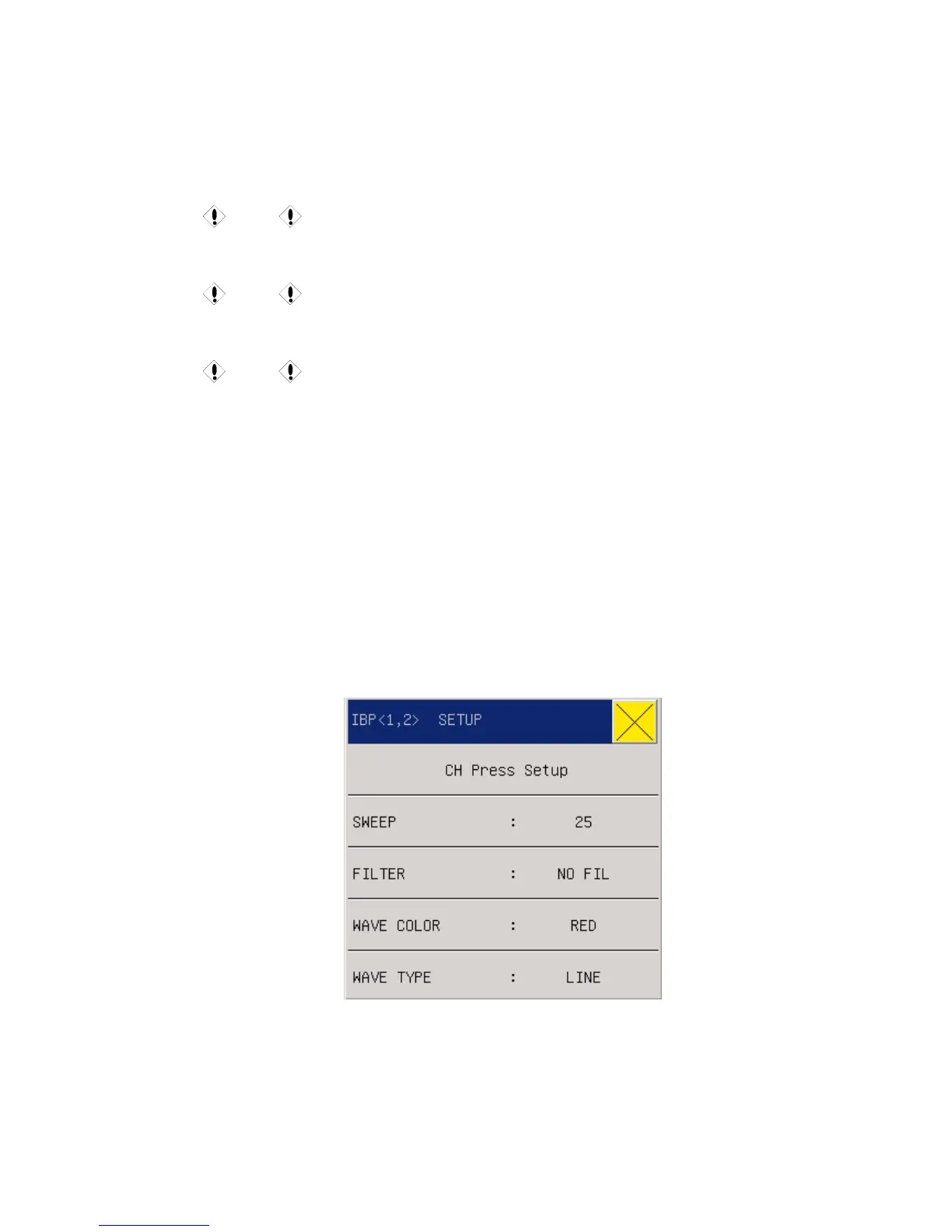

Fig 17-3 IBP Parameter Setting Menu
Settings can be done on the following items:
z
CH Press Setup:eight options including ART, PA, CVP, RAP, LAP,ICP ,P1 and P2 are
provided.
