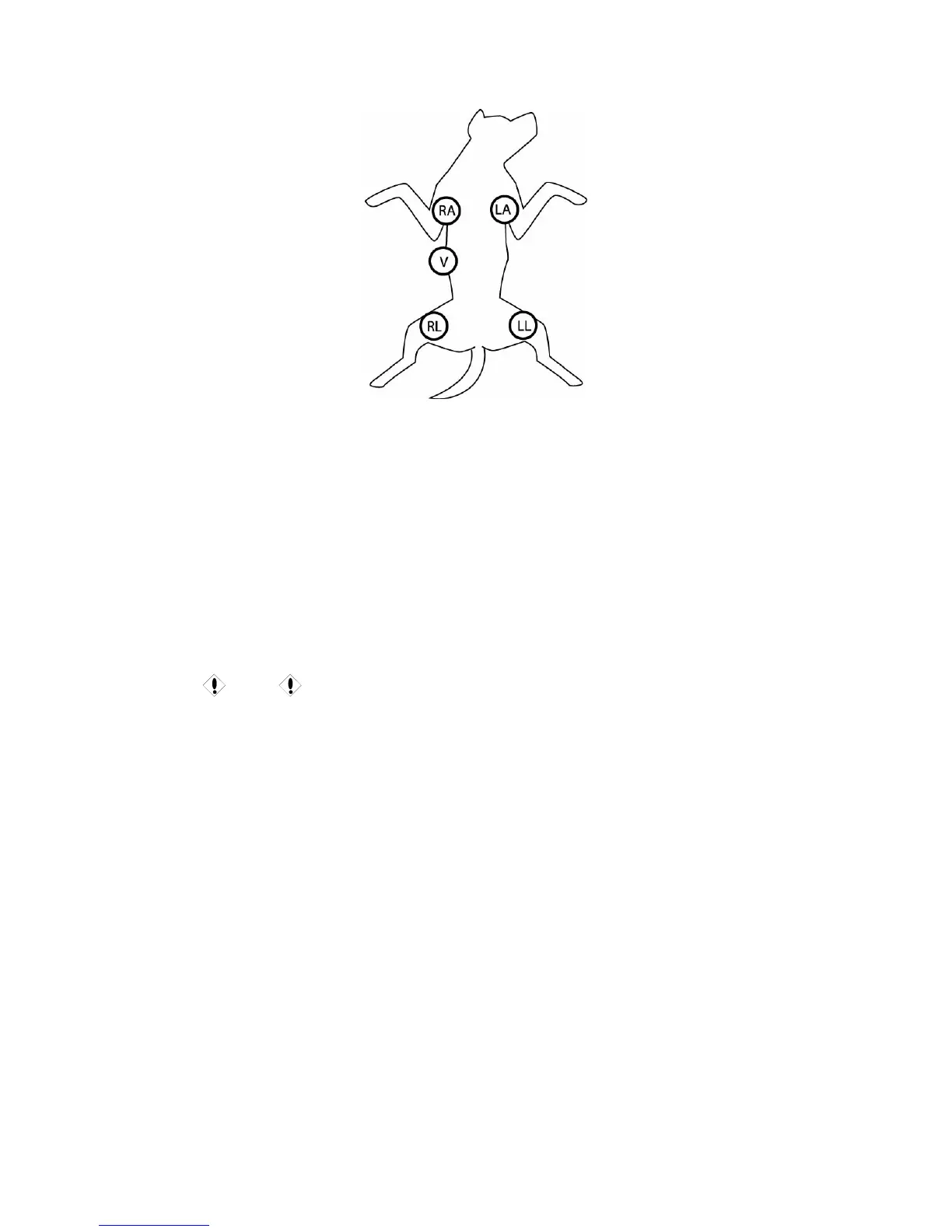

Fig 11-1 Install electrodes
■ white electrode (RA) — Right foreleg
■ black electrode (LA)— Left foreleg
■ green electrode (RL)— Right hind leg.
■ red electrode (LL)—Left hind leg.
■brown electrode (V) — Fourth intercostal space.
Caution
Install the white and red electrodes in a diagonal line so as to obtain the best RESP wave.
Need keep the liver and heart area out of the line formed by such electrodes, so as to
avoid artificial discrepancy generated from heart cover or pulsatile blood, which is very
important for newborns.
12.2 RESP Setting in parameter area
Users can rotate the knob and move the cursor to the RESP hotkey on the parameter area of the
main screen, then press the knob to enter the RESP Setting menu.
